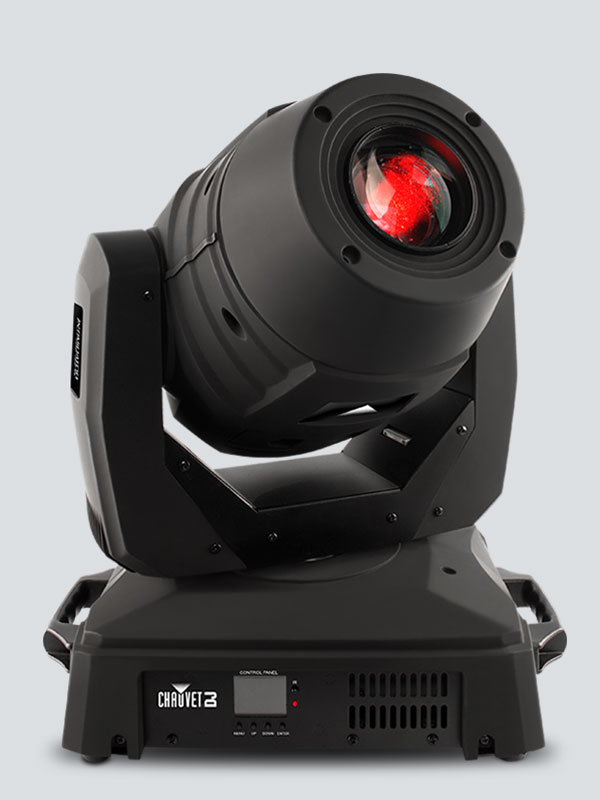

Intimidator Spot 455Z IRC

The Intimidator Spot 455Z IRC is an extremely bright, 180 W LED moving head spot designed for large events. It features dual gobo wheels that allow for gobo morphing and amazing mid-air projections. The motorized zoom is perfect for short- or long-throw situations. The Intimidator Spot 455Z IRC beams always remain on the dance floor using the built-in, innovative Totem mode. You can also split the beam and cover a larger area with the Intimidator Spot 455Z IRC’s 3-facet prism. This powerful moving head emits crisp projections at almost any distance using the motorized focus. Quickly and easily change gobos using the easy-access gobo door and non-DMX control is easy with the optional IRC-6 remote. The Intimidator Spot 455Z IRC also allows you to set, save, and recall 1 scene manually directly from the full-color LCD display. Link multiple units together with the power-linking feature which saves time from running cables. The Intimidator Spot 455Z IRC fits best in the CHS-50 VIP Gear Bag.

Highlights

  • Extremely bright, 180 W LED moving head spot designed for large events

  • Dual gobo wheels allow for gobo morphing and amazing mid-air projections

  • Motorized zoom for short- or long-throw situations

  • Beams always remain on the dance floor using the built-in, innovative Totem mode

  • Split the beam and cover a larger area with the 3-facet prism

  • Emit crisp projections at almost any distance using the motorized focus

  • Quickly and easily change gobos using the easy-access gobo door

  • Convenient, wireless non-DMX control using the optional IRC-6 remote

  • Set, save, and recall 1 scene manually directly from the full-color LCD display

  • Save time running cables by power linking multiple units

  • Fits best in the CHS-50 VIP Gear Bag

Specifications

  • DMX Channels: 10 or 16
  • DMX Connectors: 3-pin XLR
  • Pan and Tilt: 540°/240°
  • Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 240° tilt
  • Colors: 7 + white, split colors, continuous scroll at variable speeds
  • Gobos: wheel (1): 7 + open (6 aluminum + 1 glass), rotating, interchangeable, slot-n-lock, continuous scroll at variable speeds
    wheel (2): 8 + open (8 stamped), continuous scroll at variable speeds
  • Light Source: 1 LED (white) 180 W (48.1 A), 50,000 hours life expectancy
  • Strobe Rate: 0 to 15 Hz
  • PWM Frequency: 1,000 Hz
  • Illuminance: (13°): 38,200 @ 2 m
    (28°): 8,720 lux @ 2 m
  • Power Linking: 2 units @ 120 V; 5 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 327 W, 2.9 A @ 120 V, 60 Hz
    304 W, 1.5 A @ 230 V, 50 Hz
  • Gobo Size: (rotating): 25.9 mm outside, 21 mm image, 1 mm max thickness
  • Zoom Angle: 13° to 28°
  • Weight: 42.2 lb (19.2 kg)
  • Size: 16.6 x 11.9 x 20.5 in (423 x 303 x 520 mm)
  • Approvals: CE
  • Series: Intimidator
  • Primary Use: DJ/Mobile, Bands/Stages, Events, Clubs, Party
  • Optional Controllers: IRC-6

What's Included

  • Intimidator Spot 455Z IRC
  • Power cord
  • Hanging bracket with mounting hardware
  • Warranty card
  • Quick Reference Guide
