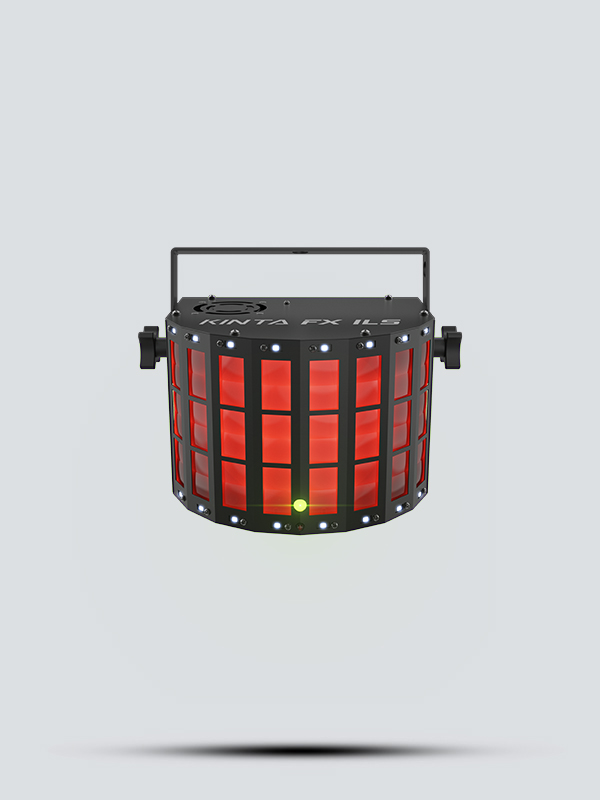

Kinta FX ILS

Countless razor-sharp multicolor beams. Eye-catching strobe effects and chases. Hundreds of red and green laser beams. These are just a few of the effects that are sure to dazzle event guests from the Kinta FX ILS, a compact multi-effect light with a Kinta, laser, and SMD strobe. What makes this exciting effect light even more potent is its compatibility with ILS which makes creating coordinated light shows across different fixture types easy. Kinta FX ILS also has D-Fi USB compatibility for wireless Master/Slave or DMX control. Easily control the unit from DMX, Master/Slave, IRC-6, or the digital display.

VIP Rewards Value: 253 Points



Highlights

  • Compact multi-effect with a Kinta, laser, and SMD strobe

  • D-Fi USB compatibility for wireless Master/Slave or DMX control

  • Projects countless razor-sharp multicolor beams

  • SMD strobes produce eye-catching strobe effects and chases

  • Red and green laser casts hundreds of beams

  • Easily control the unit from DMX, Master/Slave, IRC-6, or the digital display

  • Save time running cables and extension cords by power linking multiple units

Specifications

  • DMX Channels:2 or 9
  • DMX Connectors:3-pin XLR
  • Light Source:
    (Kinta): 4 LEDs ( 1 Red, 1 Green, 1 Blue, 1 White) 7.5 W (2.4 A), 50,000 hours life expectancy
    (Strobe): 16 SMD LEDs (white) 5 W (1.6 A) 50,000 hours life expectancy
    (Laser): 650 nm/100 mW (Red) laser diode, 520 nm/30 mW (Green) laser diode
  • Strobe Rate:0 to 20 Hz
  • Coverage Angle:118°
  • Power Linking:17 units @ 120 V; 33 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:25 W, 0.5 A @ 120 V, 60 Hz
    24 W, 0.2 A @ 230 V, 50 Hz
  • Weight:3.8 lb (1.7 kg)
  • Size:7.4 x 10.3 x 7.4 in (187 x 261 x 187 mm)
  • Approvals:CE, FDA, RoHS, UKCA
  • Optional Controllers: IRC-6
  • Classified per EN/IEC 60825-1:2014
  • Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 56, dated May 8, 2019

What's Included

  • Kinta FX ILS
  • Power cord
  • Warranty card
  • User Manual
