Discontinued Since 2016

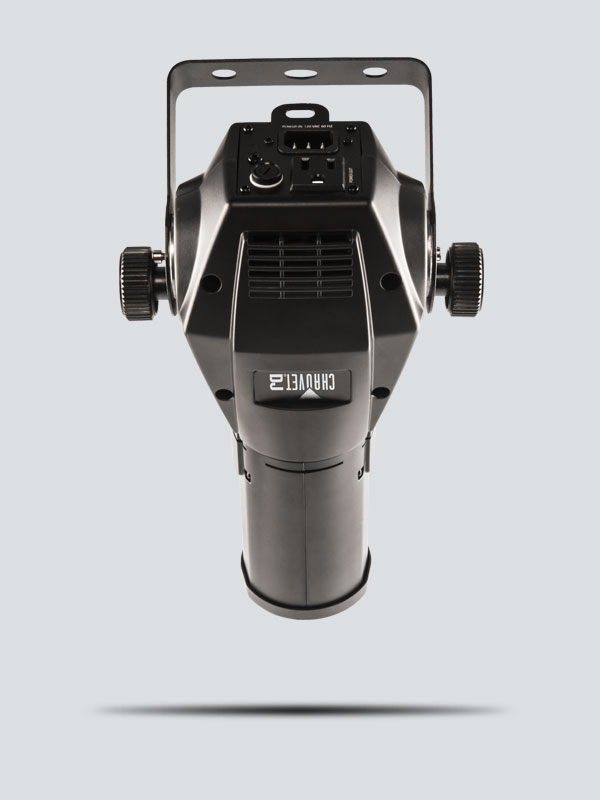

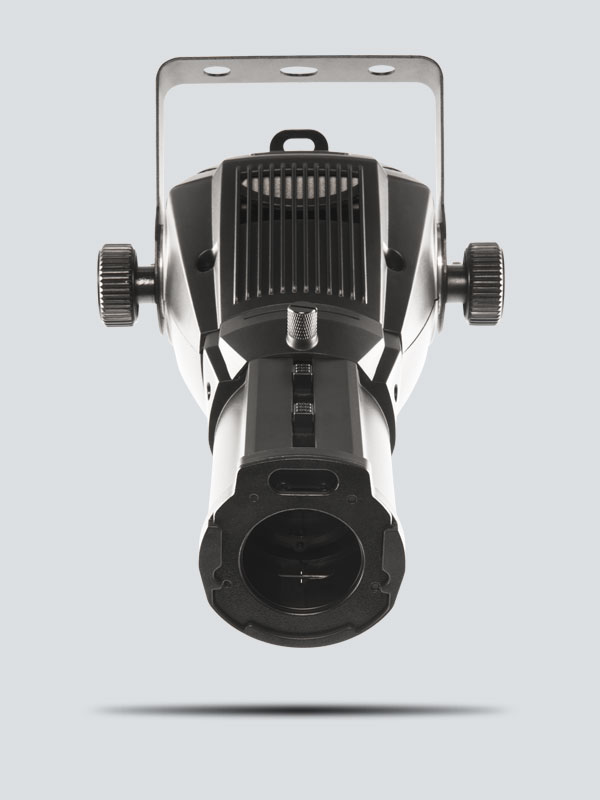

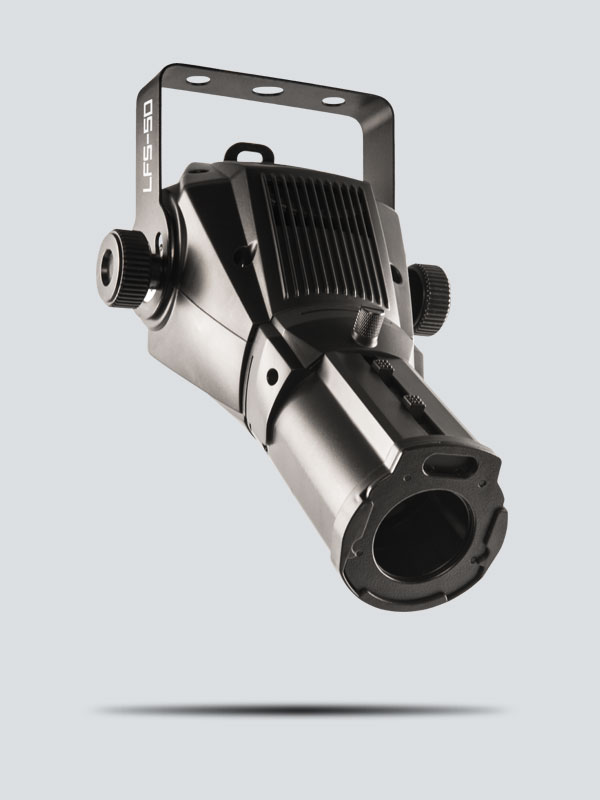

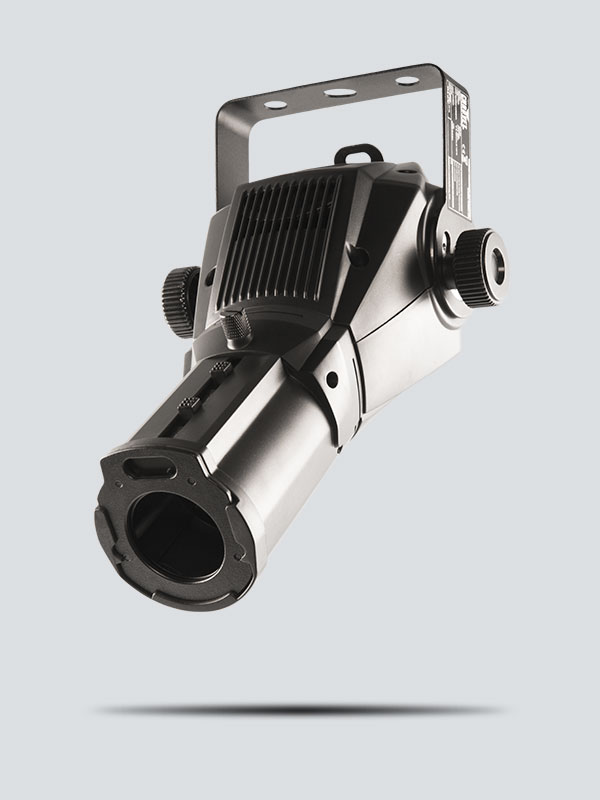

LFS-5D

LFS-5D is a compact, easy-to-use framing spot light powered by a 23-watt white LED. Utilizing a 16- to 24-degree zoom and internal framing shutters, you can easily size and mask light off unwanted surfaces with precision. A single gobo slot houses one of four included gobos, or a custom-made version. Nearly any color can be achieved with its removable gel frame.

Highlights

  • Compact, LED framing spot shines a hard-edged beam perfect for gobo projection

  • Fade the LED by connecting to a dimmable circuit such as the DMX-4 LED

  • Highlight areas by altering the projected beam with framing shutters

  • Easily print your own gobos on transparency film

  • Flexibility to project from any distance using the 16° to 24° zoom range

  • Includes four popular gobos to complement a variety of events

  • Save time running cables and extension cords by power linking multiple units

  • Easily transports in the CHS-40 VIP Gear Bag

Specifications

  • Gobos: 25.4 mm outside, 19 mm image, 1 mm max thickness (size V)
  • Light Source: 1 LED (white) 23 W (15.3 A), 50,000 hours life expectancy
  • Illuminance: (16°): 2,300 lux @ 2 m
    (24°): 1,050 lux @ 2 m
  • Power Linking: 23 units @ 120 V; 45 units @ 230 V
  • Input Voltage: 120 VAC, 60 Hz or 230 V, 50 Hz
  • Power and Current: 52 W, 0.4 A @ 120 V, 60 Hz
    56 W, 0.2 A @ 230 V, 50 Hz
  • Zoom Angle: (manual): 16° to 24°
  • Weight: 3.2 lb (1.5 kg)
  • Size: 12.5 x 7.5 x 9.5 in (318 x 191 x 241 mm)
  • Approvals: CE

What's Included

  • LFS-5D
