Discontinued Since 2016

LFS-75DMX

Similar Product Available

You might also like:

EVE E-100Z

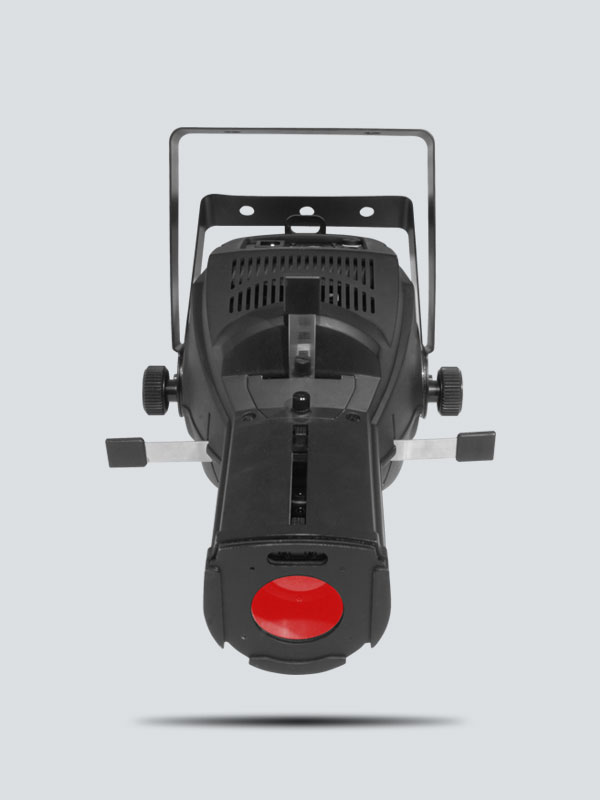

LFS-75DMX is a powerful framing spot fitted with a 75-watt LED to project crisp patterns and messages onto any surface. Built-in DMX control and dimming capabilities allow the light to be used exactly when your show dictates, while an integrated color wheel adds an additional dimension to your projections. Framing shutters block light out of unwanted areas and a unique gobo slot accepts standard, or your customized, round or square-shaped gobos.

VIP Rewards Value: 700 Points



Highlights

  • 75-W LED framing spot shines a hard-edged, white spot in any direction

  • Choose from 8 vivid colors via the automated color wheel

  • Increase design options with built-in dimmer, DMX control and color wheel

  • Accepts both round and square gobos to make setup easier

  • Internal thermostat monitors temperatures to control fan speed

  • Eliminate the need for DMX control with advanced standalone operation

  • Easily highlight areas by altering the projected beam with framing shutters

  • Flexibility to project from any distance using the 14° to 22° zoom range

  • Includes four popular gobos and a gel frame holder

  • Save time running extension cords by power linking multiple units

  • Easily transports in the CHS-50 VIP Gear Bag

Specifications

  • DMX Channels:4
  • DMX Connectors:3- and 5-pin XLR
  • Colors:8 + white, split colors, continuous scroll at variable speeds
  • Light Source:1 LED (white) 75 W (16.9 A), 50,000 hours life expectancy
  • Strobe Rate:0 to 20 Hz
  • Zoom Angle:(manual): 14° to 22°
  • Illuminance:(14°): 8,710 lux @ 2 m
    (22°): 3,660 lux @ 2 m
  • Power Linking:8 units @ 120 V; 14 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:117 W, 1.6 A @ 120 V, 60 Hz
    115 W, 0.9 A @ 230 V, 50 Hz
  • Gobo Size:40 mm outside, 18 mm image, 1 mm max thickness
  • Weight:8 lb (3.7 kg)
  • Size:15.1 x 11.1 x 13.6 in (385 x 283 x 345 mm)
  • Approvals:CE

What's Included

  • LFS-75DMX
  • 75W LED
  • 8 Automated Color Wheel
  • Gobo & Gel Frame Holder
