Discontinued Since 2016

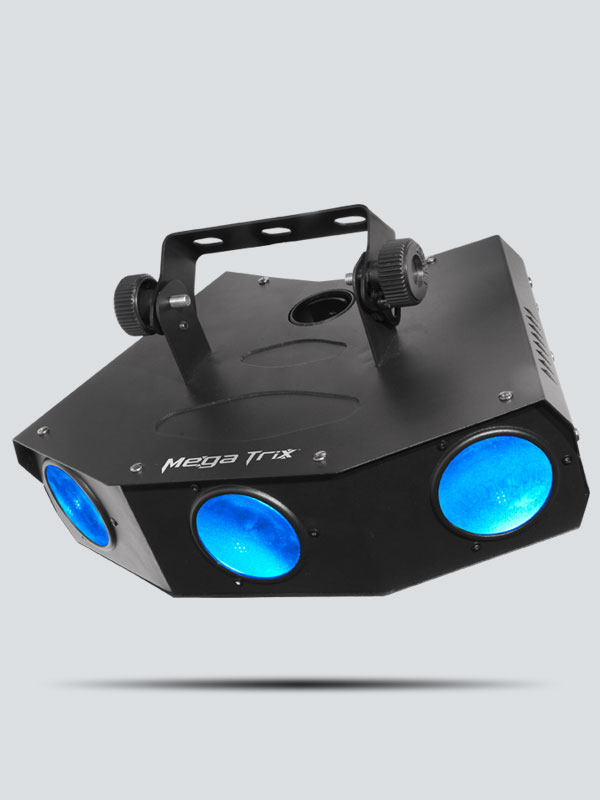

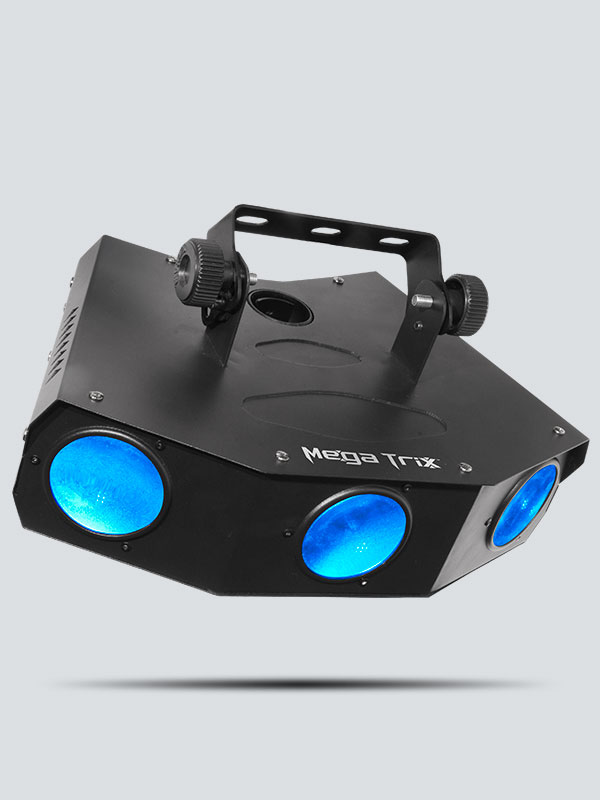

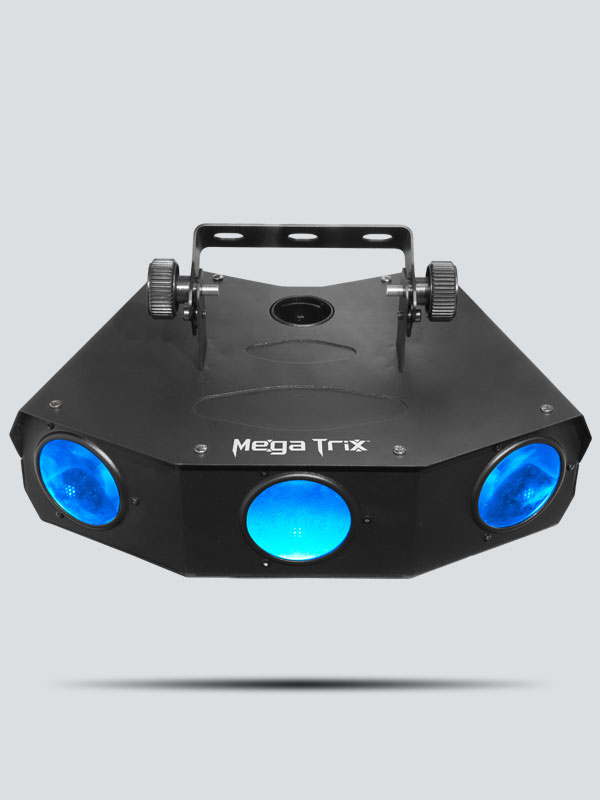

Mega Trix

Equipped with 192 RGBW LEDs, Mega Trix is a lightweight DMX effect light that projects animations from pod to pod for a very unique look with no moving parts. Super-crisp optics create dazzling mid-air effects and sharp beams of light that cover a large area. An innovative internal mounting bracket allows for quick and easy mounting to most tripods or speaker stands with no additional clamp needed. Built-in automated and sound-activated programs can be easily triggered via DMX or stand-alone.

Highlights

  • Lightweight LED effect light projects beams that flow from pod to pod

  • Create unique looks and cover large areas with animated lighting

  • Achieve mid-air effects and project razor-sharp beams using crisp optics

  • Easily mounts to most tripods and speaker stands without the need for additional clamps by using the innovative, internal mounting bracket

  • Features complex, automated programs that look great with or without fog

  • Trigger built-in automated and sound-activated programs in DMX or stand-alone mode

  • Save time running cables and extension cords by power linking multiple units

  • Fits best in the CHS-40 VIP Gear Bag

Specifications

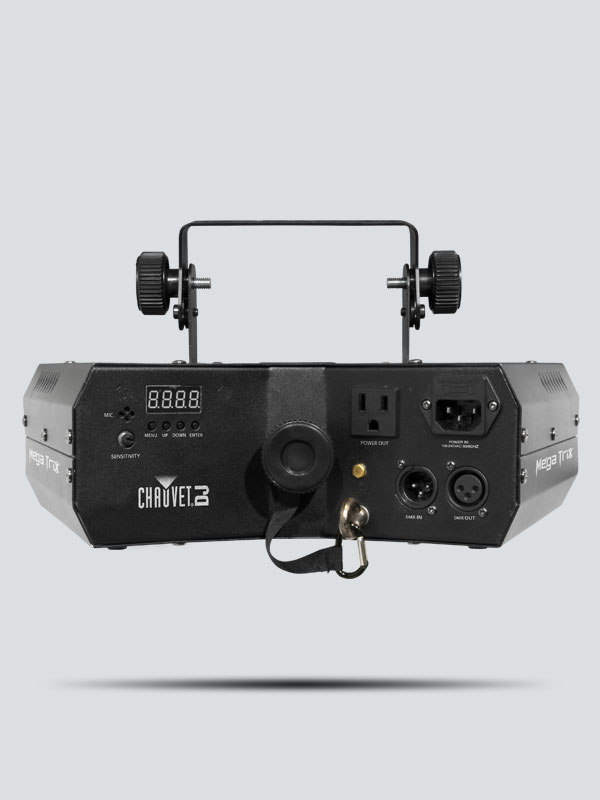

  • DMX Channels: 3
  • DMX Connectors: 3-pin
  • Light Source: 192 (48 red, 48 green, 48 blue, 48 white) 0.25W (20mA LEDs 100,000hrs
  • Power Linking: 17 units @ 120V; 32 units @ 230V
  • Input Voltage: Auto-ranging 100 - 240VAC 50/60Hz
  • Power and Current: 55W, 0.5A @ 120V 60Hz
    57W, 0.3A @ 230V 50Hz
  • Weight: 7.8lbs (3.6kg)
  • Size: 10.1 x 14.7 x 7.9in (257 x 373 x 201mm)
  • Approvals: CE
  • Coverage Angle: 85°

What's Included

  • Mega Trix
  • Power Cord
  • Warranty Card
