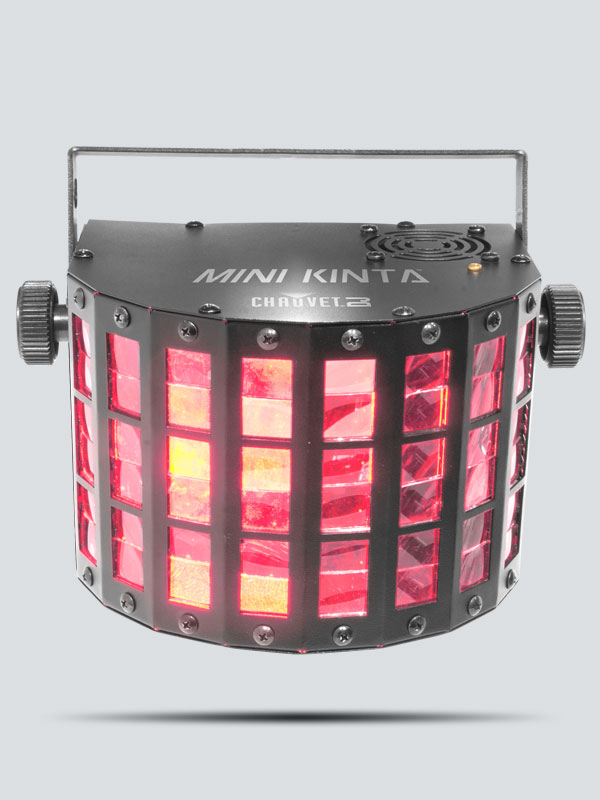

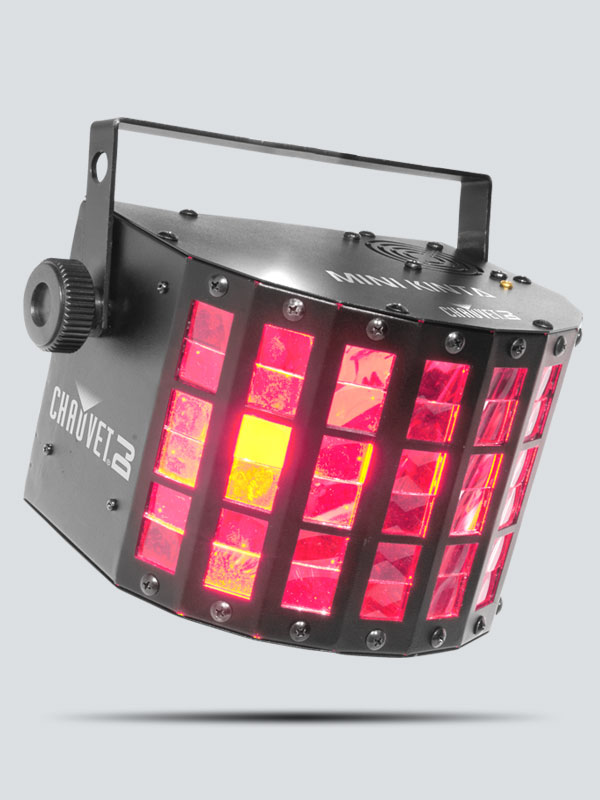

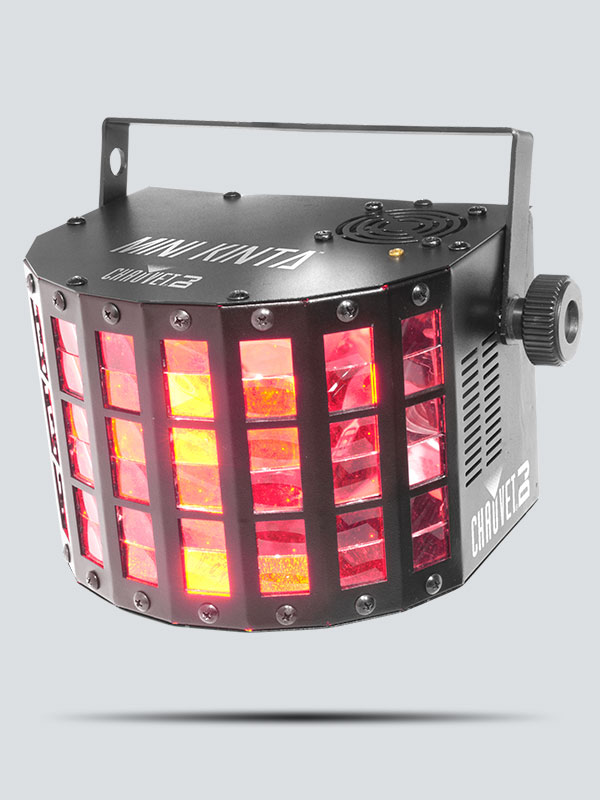

Mini Kinta

Fitted with 3W LEDs to punch through nearly any ambient lighting, Mini Kinta fills the room with sharp beams and features more output and broader coverage than derby effects twice its size. Floor-to-ceiling and wall-to-wall coverage is effortless with red, green, blue and white effects. Let the built-in programs do the work or use DMX to program your own light show.

Highlights

  • Compact LED effect light projects countless beams of multicolored light

  • Projects bright, colorful beams using high-power red, green, blue and white LEDs

  • Fills the room with eye-catching effects as light shines through 48 Lenses

  • Match the mood at any event by controlling the motor speed in DMX mode

  • Trigger built-in automated and sound-activated programs in master/slave or DMX mode

  • Save time running cables and extension cords by power linking multiple units

  • Rugged metal housing ideal for mobile gigs

  • Fits best in the CHS-40 VIP Gear Bag

Specifications

  • DMX Channels: 3
  • DMX Connectors: 3-pin XLR
  • Light Source: 4 LEDs (1 red, 1 green, 1 blue, 1 white) 3 W (730 mA), 50,000 hours life expectancy
  • Power Linking: 26 units @ 120 V; 53 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 19 W, 0.2 A @ 120 V, 60 Hz
    25 W, 0.1 A @ 230 V, 50 Hz
  • Weight: 4.4 lb (2 kg)
  • Size: 7.5 x 10.1 x 7.2 in (190 x 258 x 182 mm)
  • Approvals: CE
  • Coverage Angle: 135°

What's Included

  • Mini Kinta
  • Power Cord
  • Warranty Card
