Discontinued Since 2018

MotionOrb

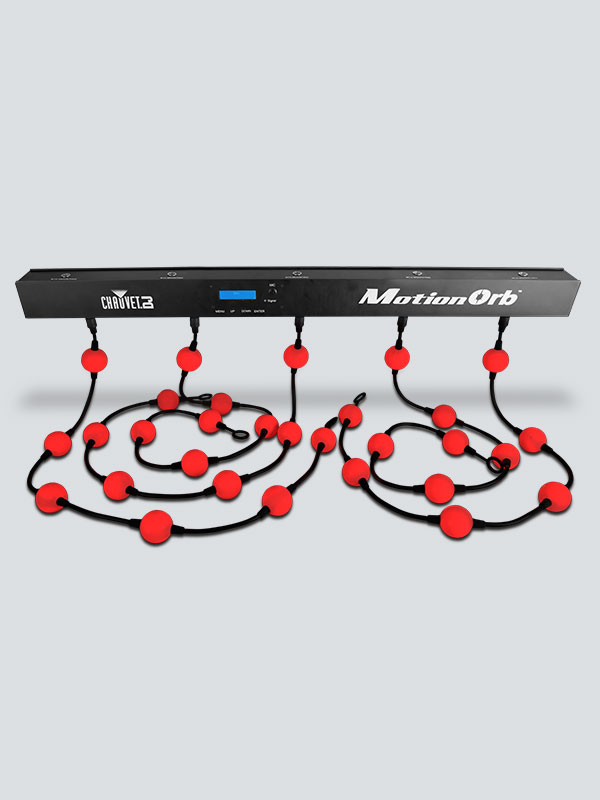

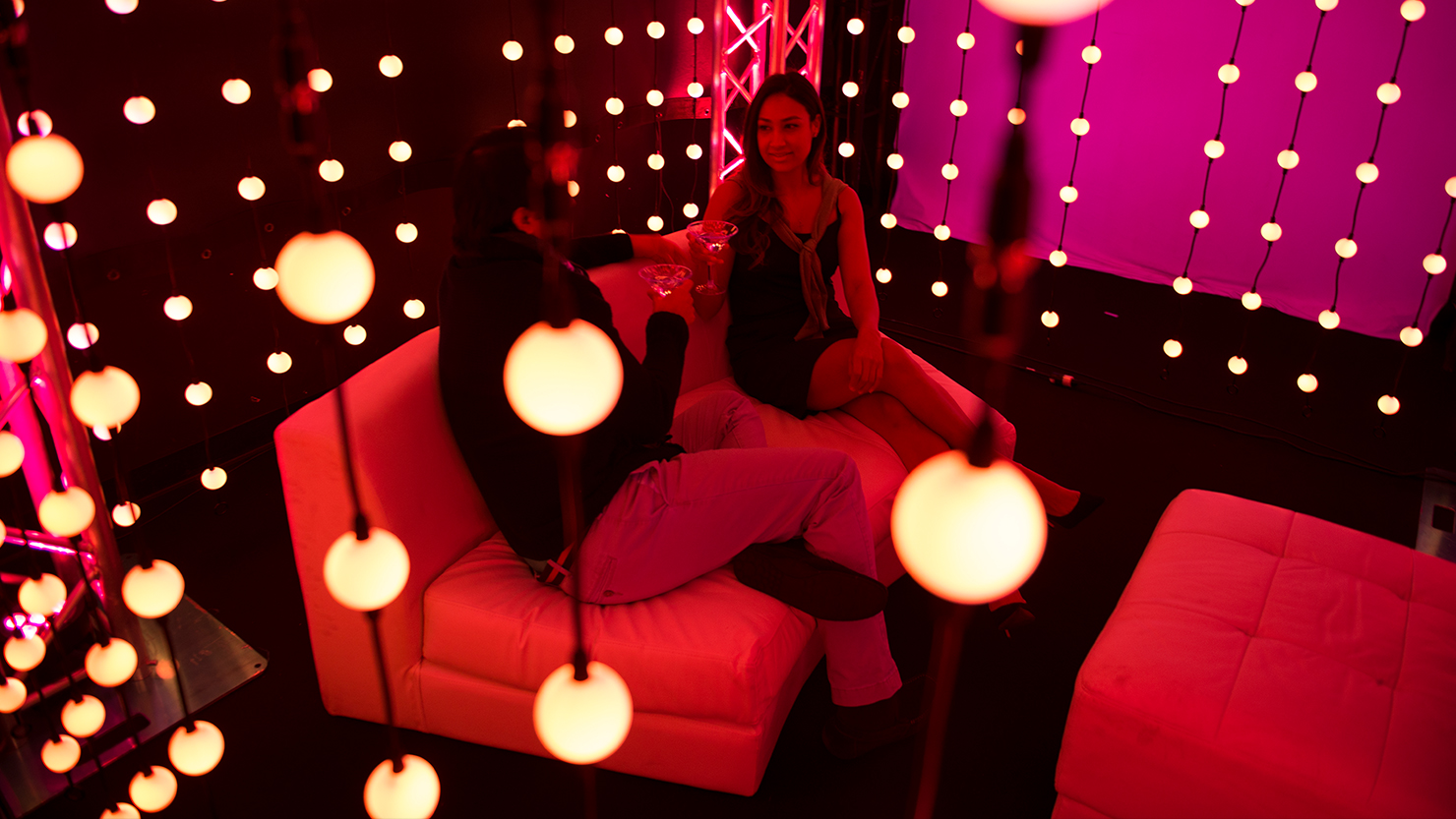

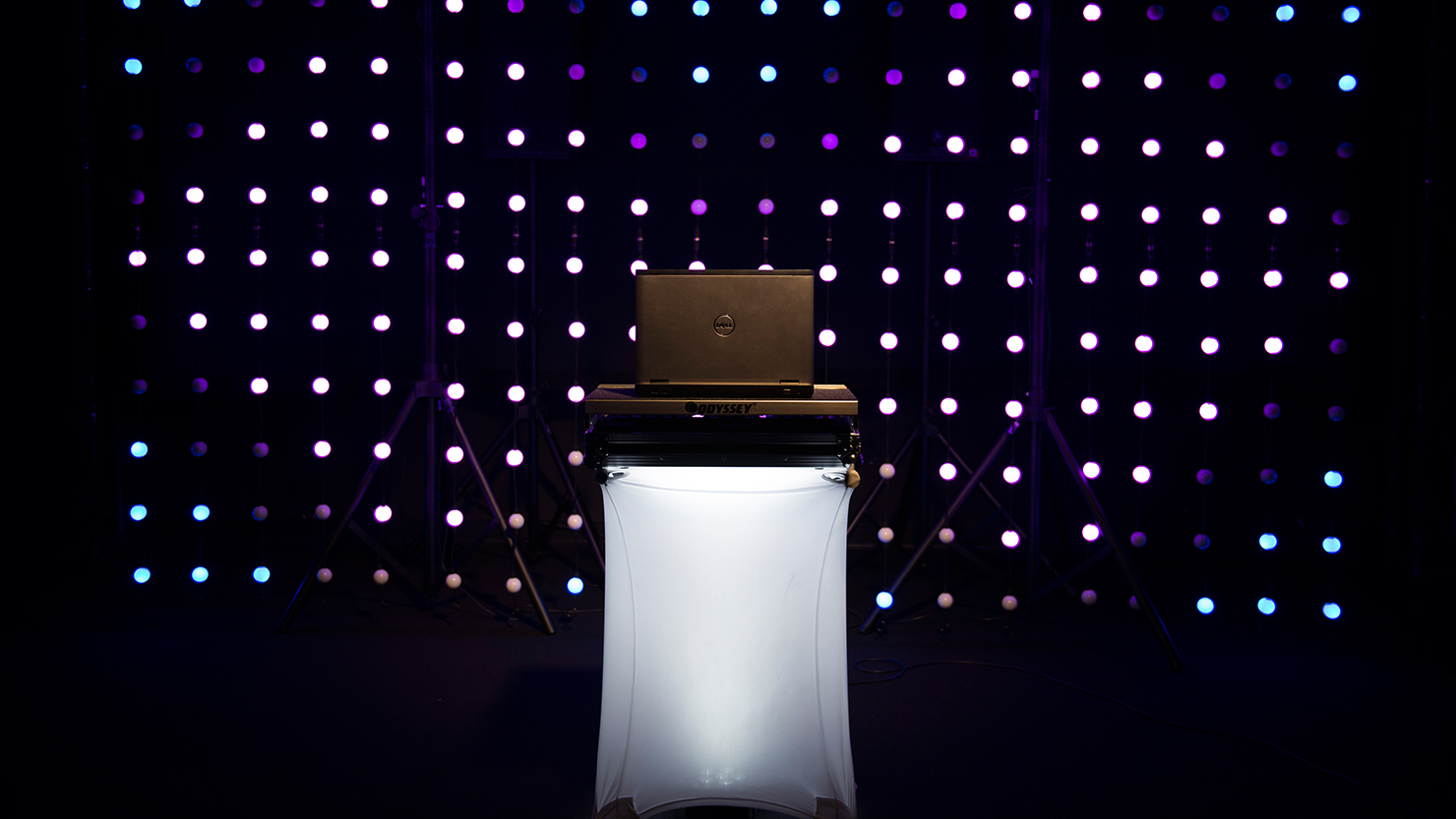

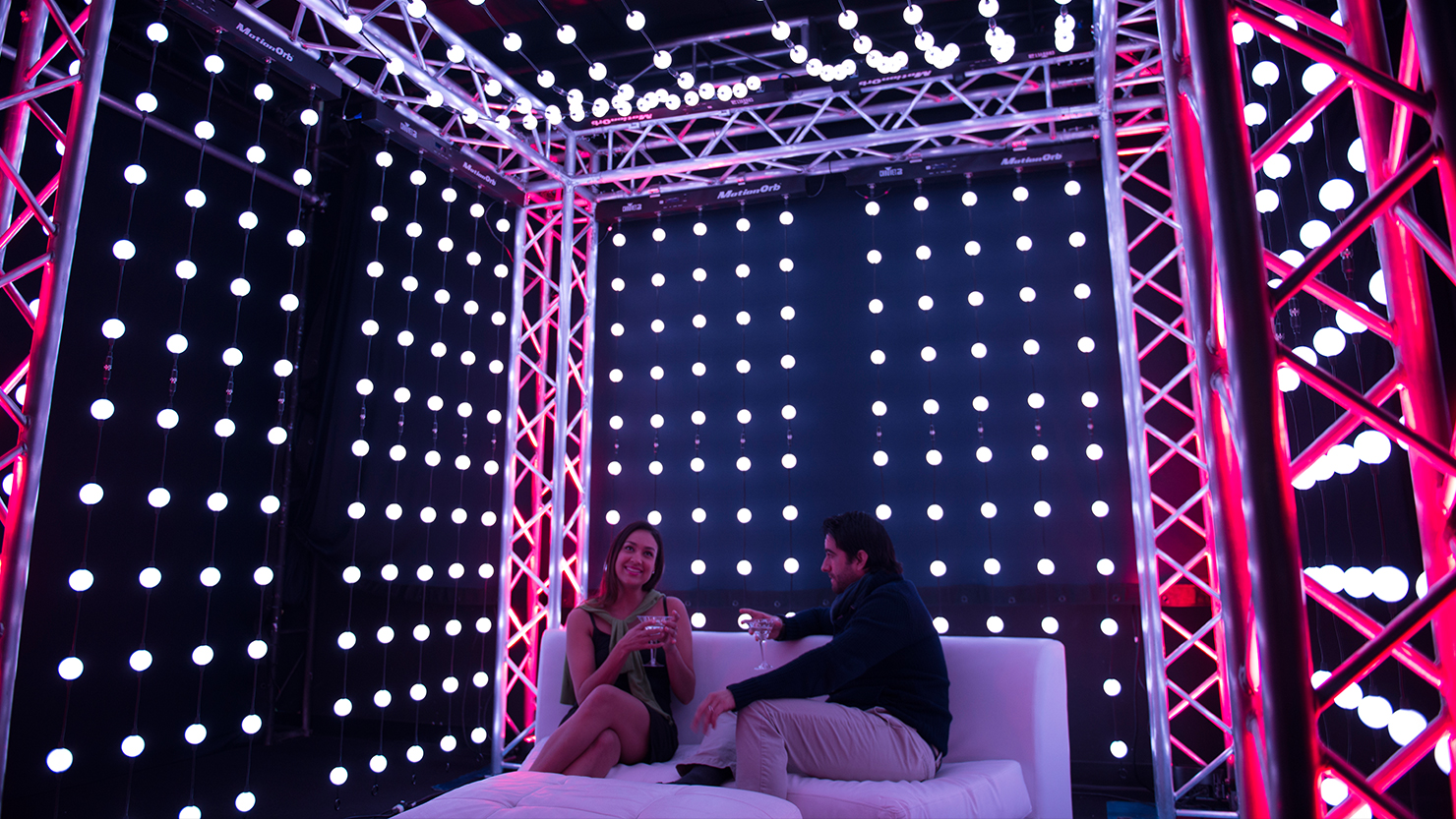

The MotionOrb is a fantastic décor light made up of 55 individual color-changing and strobing LED orbs in strings that can be hung like a curtain, drawn to one side, or draped across the ceiling. The MotionOrb comes standard in a 2-meter length, but it can be expanded to 4 meters long with the optional MotionOrb Extensions. The MotionOrb comes with a variety of built-in color changes and chases, and when operated in DMX mode it can be pixel mapped! In Master/Slave mode color changes and chases can be expanded across three MotionOrb products for a wall full of coordinated patterns. The MotionOrb comes with a custom made gear bag for easy, safe, and stylish transporting.

Highlights

  • Decorative LED orbs that create a seamless RGB color mixing curtain to enhance any venue or event

  • Link up to 3 MotionOrb units to create a synchronized show in Master/Slave mode

  • Generate complex looks easily with built-in, eye-catching automated and sound-activated programs that dance to the beat of the music

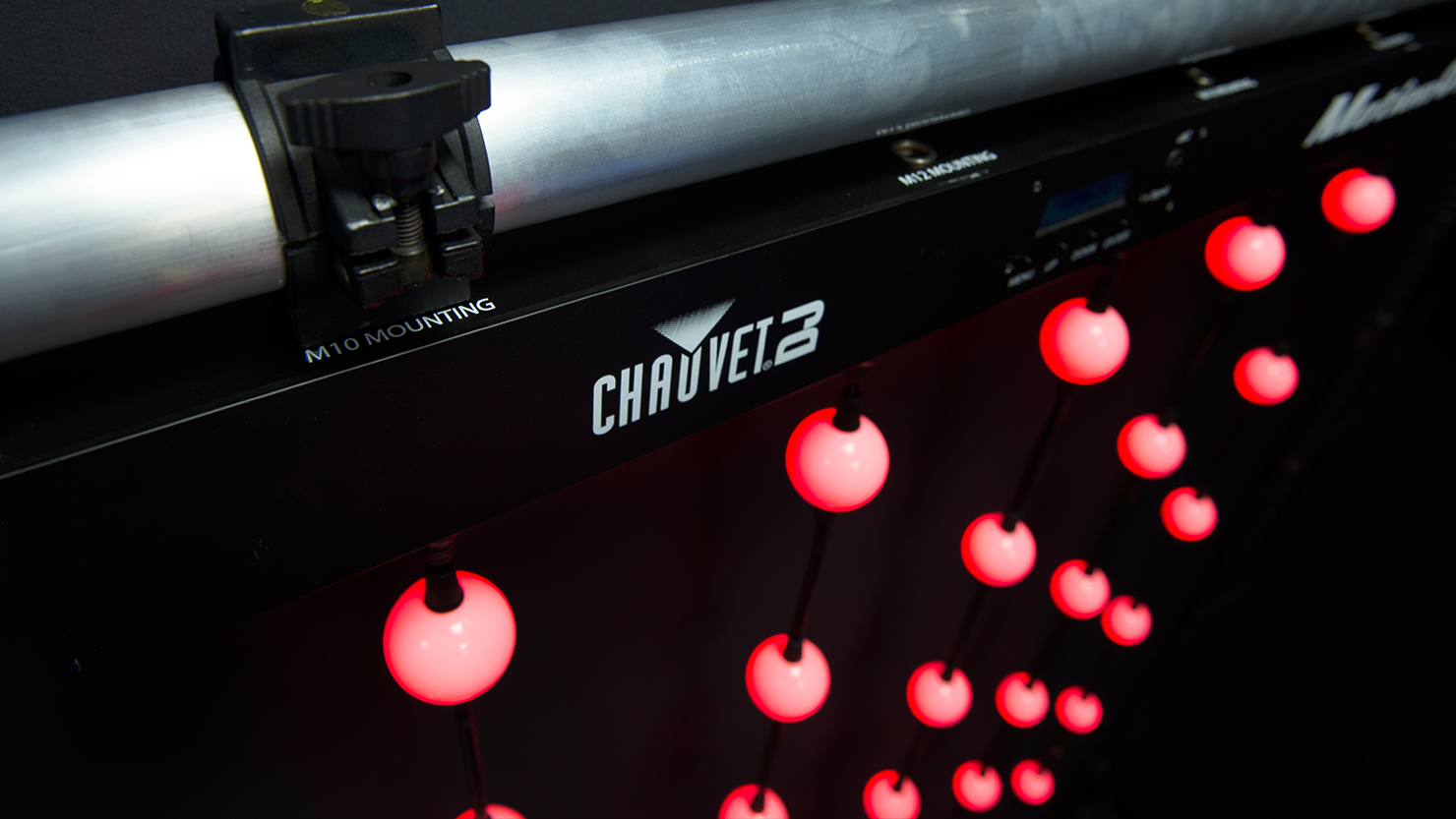

  • Mounts to most truss systems using 10 mm and 12 mm treaded bolt holes

  • 30 built-in effects including popular LED “rain” effect

  • Use built-in hanging rings at the bottom of each string to expand hanging possibilities

  • Effortlessly create custom colors, without using a controller, in Standalone mode

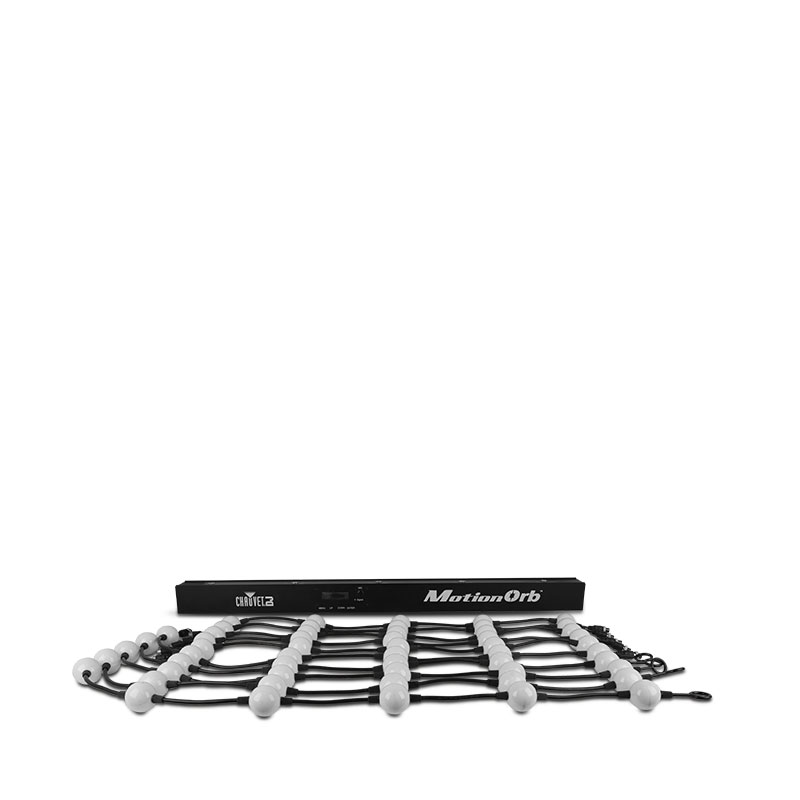

  • Adjustable string lengths from 2 m, 3 m, or 4 m using the optional MotionOrb extensions (sold separately)

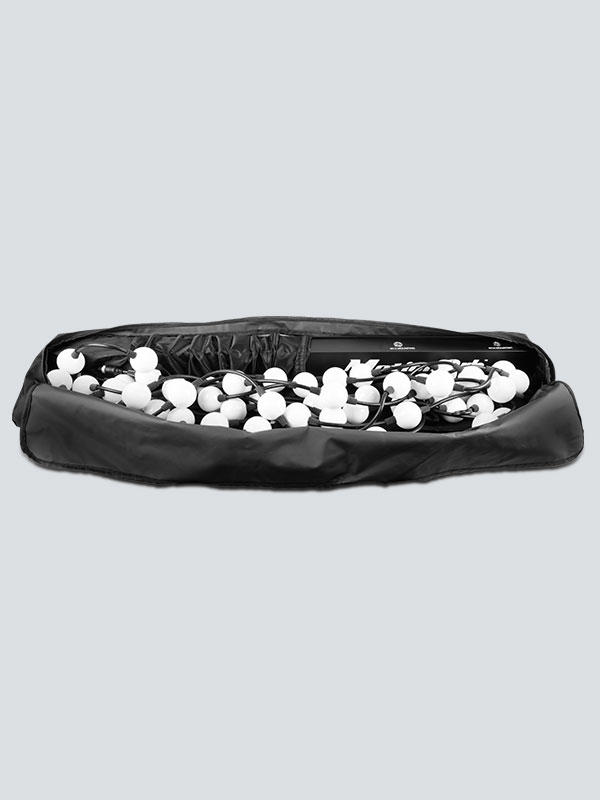

  • Easily store and transport in the included gear bag

Specifications

  • DMX Channels:9, 165, 240 or 315
  • DMX Connectors:3-pin XLR
  • Light Source:110 LEDs (tri-color RGB) SMD (100 mA), 50,000 hours life expectancy
  • Strobe Rate:1 to 15 Hz
  • PWM Frequency:428 Hz
  • Power Linking:16 units @ 120 V; 30 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:43 W, 0.6 A @ 120 V, 60 Hz
    42 W, 0.4 A @ 230 V, 50 Hz
  • Weight:8.2 lb (3.7 kg)
  • Size:39.9 x 2.6 x 85.5 in (1,013 x 65 x 2,343 mm)
  • Approvals:CE

What's Included

  • MotionOrb
  • 5 MotionOrb strings
  • 5 MotionOrb ends
  • Power cord
  • Carrying bag
  • User Manual / Warranty card
