MotionSet LED

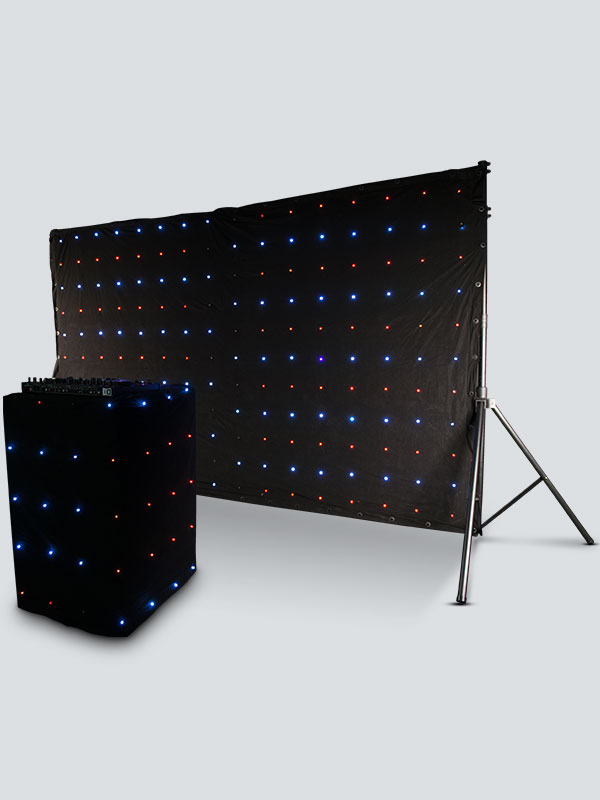

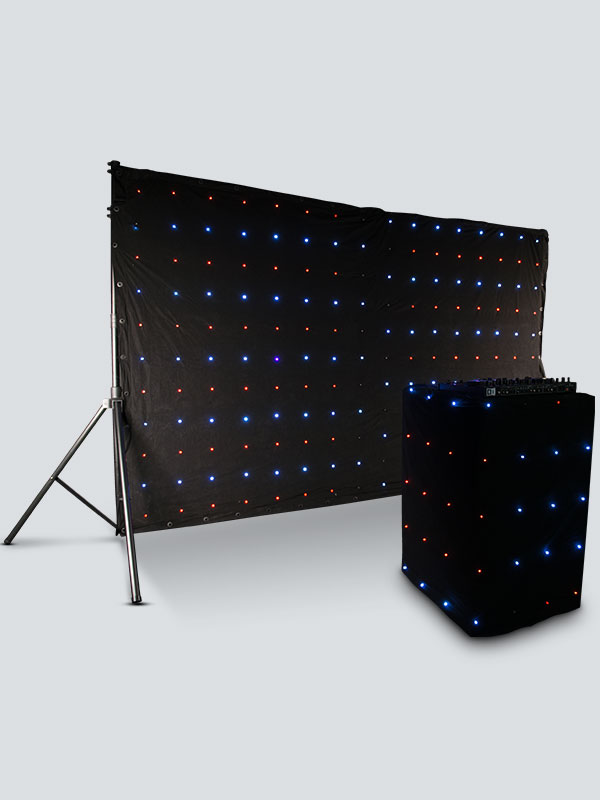

MotionSet LED combines the popular 6.6 x 9.8ft (2 X 3m) MotionDrape LED and 4 x 6.6ft (1.22 x 2m) MotionFaçade LED into one sizzling package for the mobile entertainer. Now with only one controller, you can easily control and synchronize the two products and create one amazing presentation.

Highlights

  • Create a professional setup at any mobile event with this set that combines the 6.6 x 9.8 ft (2 x 3 m) LED Drape and the 4 x 6.6 ft (1.22 x 2 m) LED Façade

  • Simplify setup, operation and synchronization using a single controller for both products

  • Wow your audience with 30 built-in patterns including a multicolor rain effect and simulated equalizer pattern

  • Trigger effects using built-in, sound-activation mode

  • Easily select and activate your favorite programs with or without DMX 512 console

  • Match the color scheme at any event with full RGB color-mixing capability

  • Achieve full control over output with master dimmer capability

  • Create customized looks using high-output, tri-color SMD LEDs and 8 channels of DMX control

  • Mounts to truss and various stand applications using built-in grommets

  • Manufactured from certified fire-retardant material (NFPA)

  • Convenient storage and transport using the included carry bag

  • Replace conventional front boards with the LED Façade by attaching it directly to your coffin case or rack with sewn-in Velcro™ fasteners

Specifications

  • DMX Channels: 8
  • DMX Connectors: 3-pin XLR
  • Light Source: (LED Drape): 176 LEDs (tri-color RGB) SMD, 50,000 hours life expectancy
    (LED Façade): 66 LEDs (tri-color RGB) SMD (20 mA), 50,000 hours life expectancy
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 49 W, 0.4 A @ 120 V, 60 Hz
    57 W, 0.2 A @ 230 V, 50 Hz
  • Weight: (Controller): 2.2 lb (1.1 kg)
    (Drapes): 13.7 lb (6.1 kg)
  • Dimensions: (Controller): 5.3 x 9.6 x 2 in (135 x 243 x 50 mm)
    (LED Drape): 6.6 x 9.8 ft (2 x 3 m)
    (LED Façade): 4 x 6.6 ft (1.2 x 2 m)
  • Approvals: CE, NFPA

What's Included

  • MotionSet LED

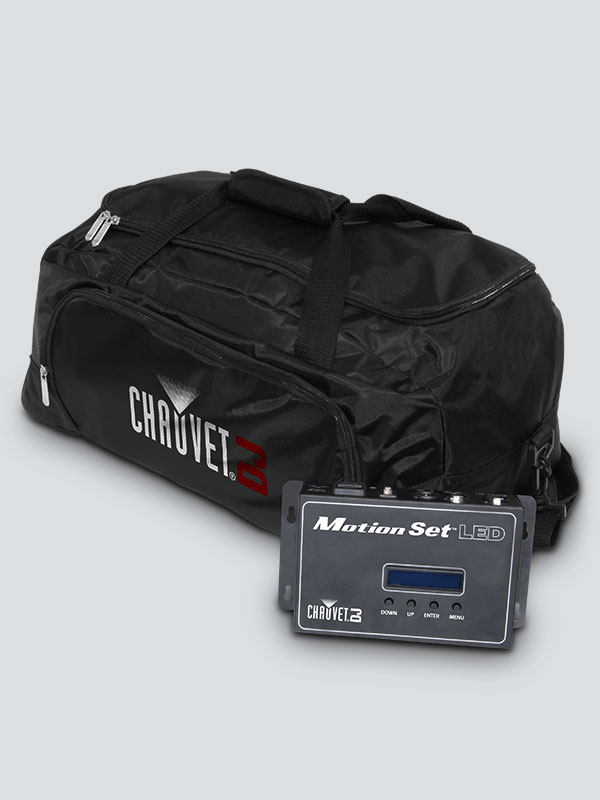

  • Controller and Power cord
  • Carry bag
  • Signal cable
  • Replacement LEDs
  • Quick Reference Guide / Warranty card
