Discontinued Since 2014

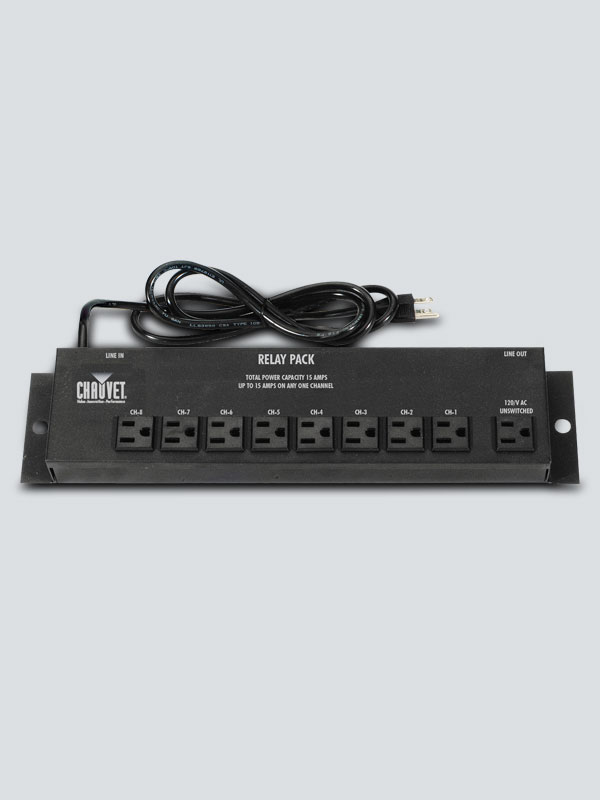

Relay Pack (SR-8)

The SR-8 Relay Pack is an 8-channel relay pack, with a separate Edison plug for each channel and one unswitched socket. Output is 5 amps per channel with a 15- amp maximum. Relay packs are linkable, and are designed to work with the Timer System package (SF-9005).

Highlights

  • Relay pack that works with the SF-9005 timer system

  • Link up to 2 SR-8 packs together to expand your show

  • Includes 1 non-switched (always on) outlet

Specifications

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Weight: 2.5 lb (1.3 kg)
  • Size: 14 x 3.8 x 1.8 in (356 x 97 x 46 mm)
  • Output: (115 V): 5 A (575 W) per channel, 15 A (1,725 W) max
    (230 V): 5 A (1,150 W) per channel, 15 A (3,450 W) max
  • Rackmount: 3U

What's Included

  • Relay Pack (SR-8)
  • Warranty card
