SlimBANK T18 USB

Submit A Review

Read Our Review

5 out of 5 stars (based on 1 review)

SlimBANK T18 USB is a powerful washlight with 18 tri-color (RGB) LEDs that achieve smooth color mixing. Adjustable barn doors help direct and focus the light. Convenient control options include auto and sound-activation programs as well as DMX. USB compatibility provides fast and easy wireless options.

VIP Rewards Value: 270 Points



Highlights

  • Versatile tri-color LED wash light with brilliant eye candy effects

  • D-Fi USB compatibility for wireless Master/Slave or DMX control

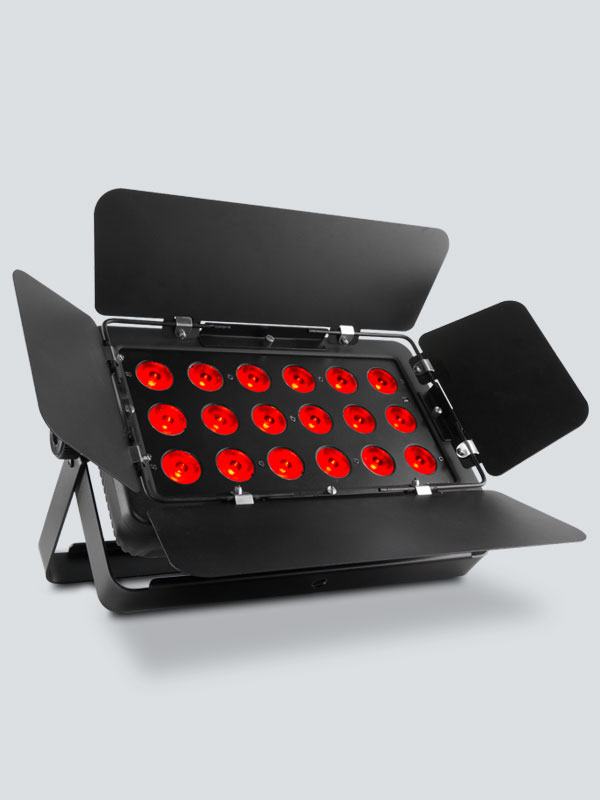

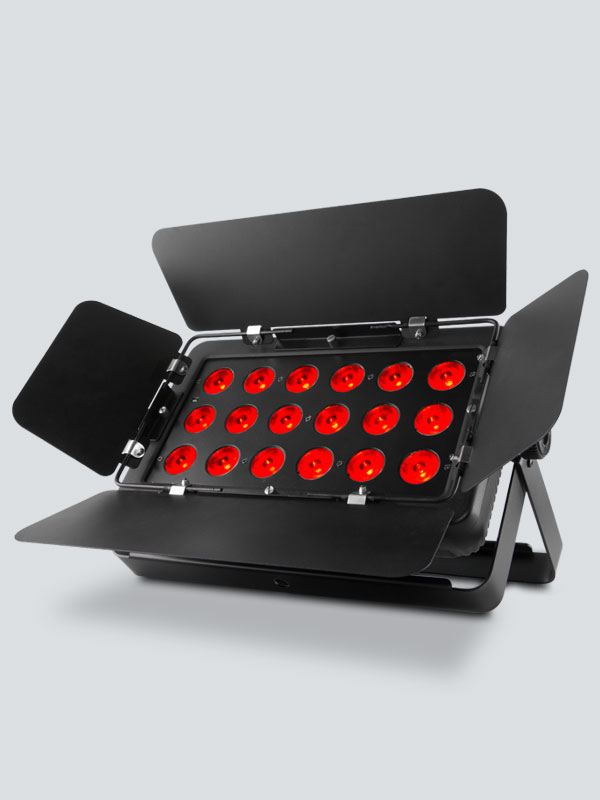

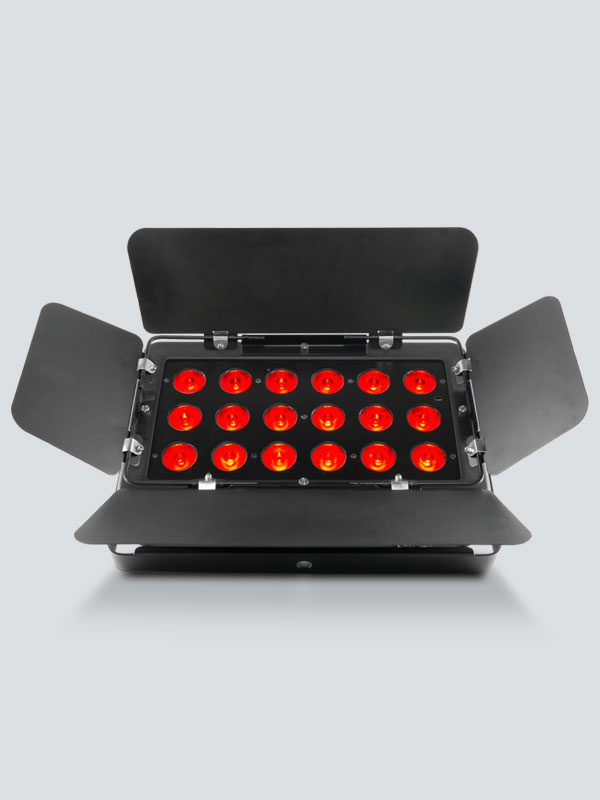

  • Direct light where it’s needed using the included and removable barn doors

  • Generate complex looks easily with built-in, eye-catching auto programs with sectional control

  • Access built-in automated programs via IRC-6 remote, Master/Slave or DMX

  • Achieve smooth LED fading with built-in dimming curves

  • Ideal for sound-sensitive environments due to the radiant cooling design

  • Save time running extension cords by power linking multiple units

  • Easily transports in the CHS-40 VIP Gear Bag

Specifications

  • DMX Channels: 3, 5, 9 or 13
  • DMX Connectors: 3-pin XLR
  • Light Source: 18 LEDs (Tri-Color RGB) 3 W (1050 mA), 50,000 hours life expectancy
  • Strobe Rate: 0 to 22 Hz
  • PWM Frequency: 1.2 kHz
  • Beam Angle: 17°
  • Field Angle: 32°
  • Illuminance: 4,120 lux @ 2 m
  • Power Linking: 13 units @ 120 V; 24 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 53 W, 0.7 A @ 120 V, 60 Hz
    51 W, 0.3 A @ 230 V, 50 Hz
  • Weight: 7.8 lb (3.6 kg)
  • Size: 15.5 x 2.1 x 10.2 in (395 x 55 x 260 mm)
  • Approvals: CE
  • Series: SlimBANK
  • Primary Use: DJ/Mobile, Bands/Stages, Events, Clubs, Party
  • Optional Controllers: IRC – 6, D-Fi USB

What's Included

  • SlimBANK T18 USB
  • Power cord
  • Barn doors
  • Warranty card
  • Quick Reference Guide

Downloads

Read Our Review

5 out of 5 stars (based on 1 review)

These little guy's are IMPRESSIVELY strong

March 13, 2019

I am quite satisfied with these lights,I own 4 with the Wireless dongles. These are went above my expectations, they are small in my opinion but PACk a punch! I have used them at over 150 gigs already and still strong as the day I got them. I Have used them in video production, as well as both theatrical & for traveling bands, my point is I use the heck out of these & they have not let me down yet. Only draw back to chauvet wish you ALl would have put cooling fans on these units to pull the heat off the cooling fins , mainly thinking ahead to prolong the led’s life and ultimately the life of the unit! This has not caused me any issues yet (like overheating) & I have run them on full for over 8 hours straight! Once again thinking ahead
