Discontinued Since 2016

SlimPAR HEX 3 IRC

Similar Product Available

You might also like:

SlimPAR H6 ILS

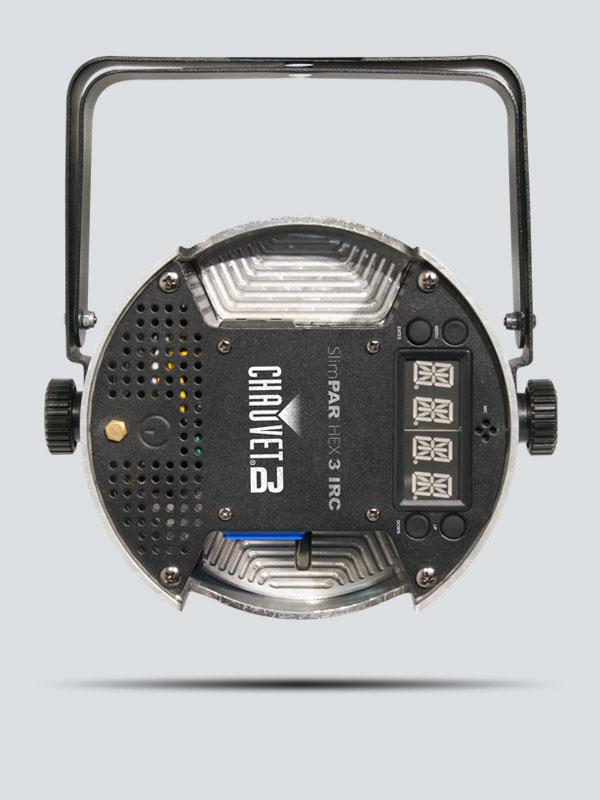

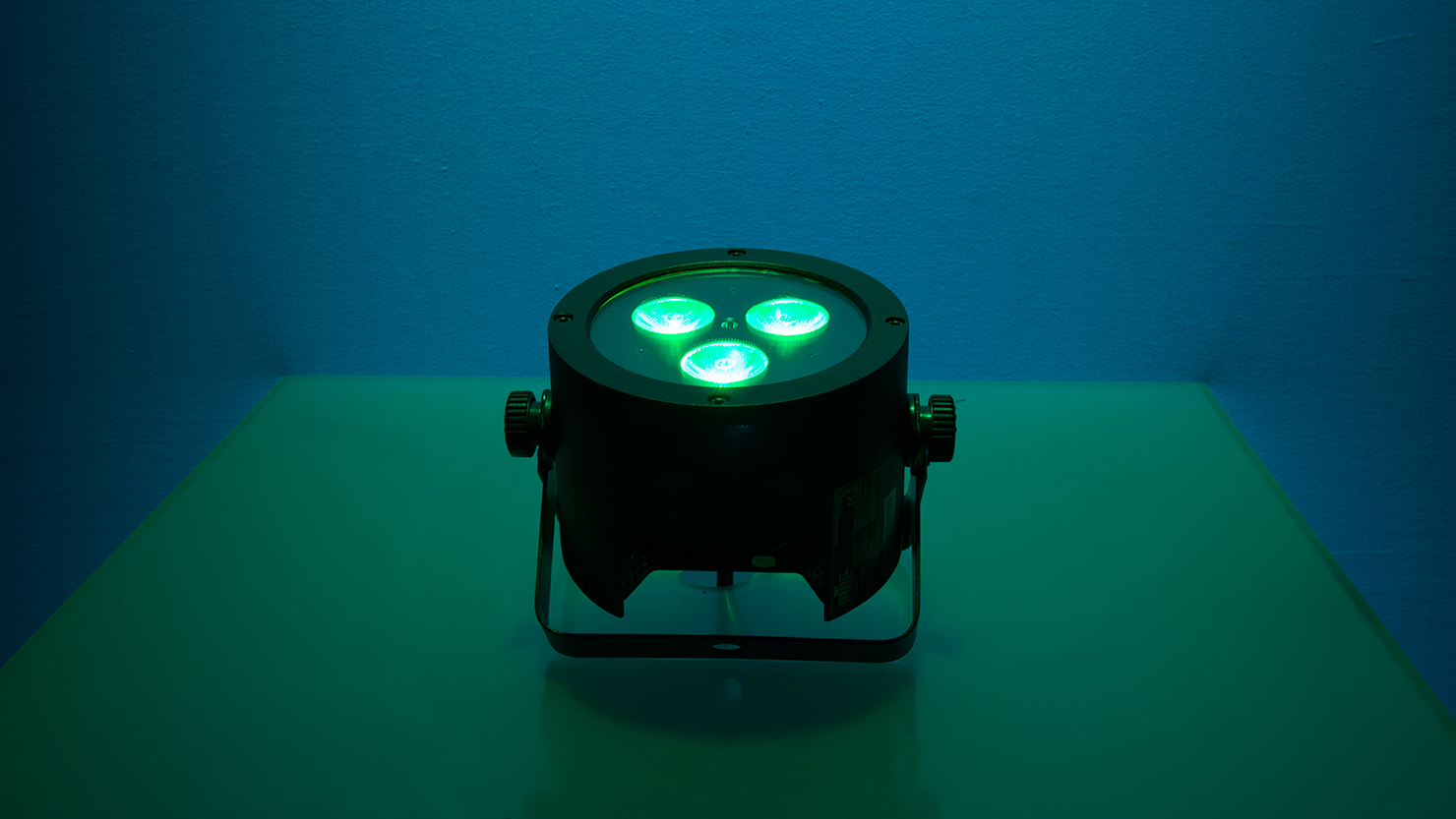

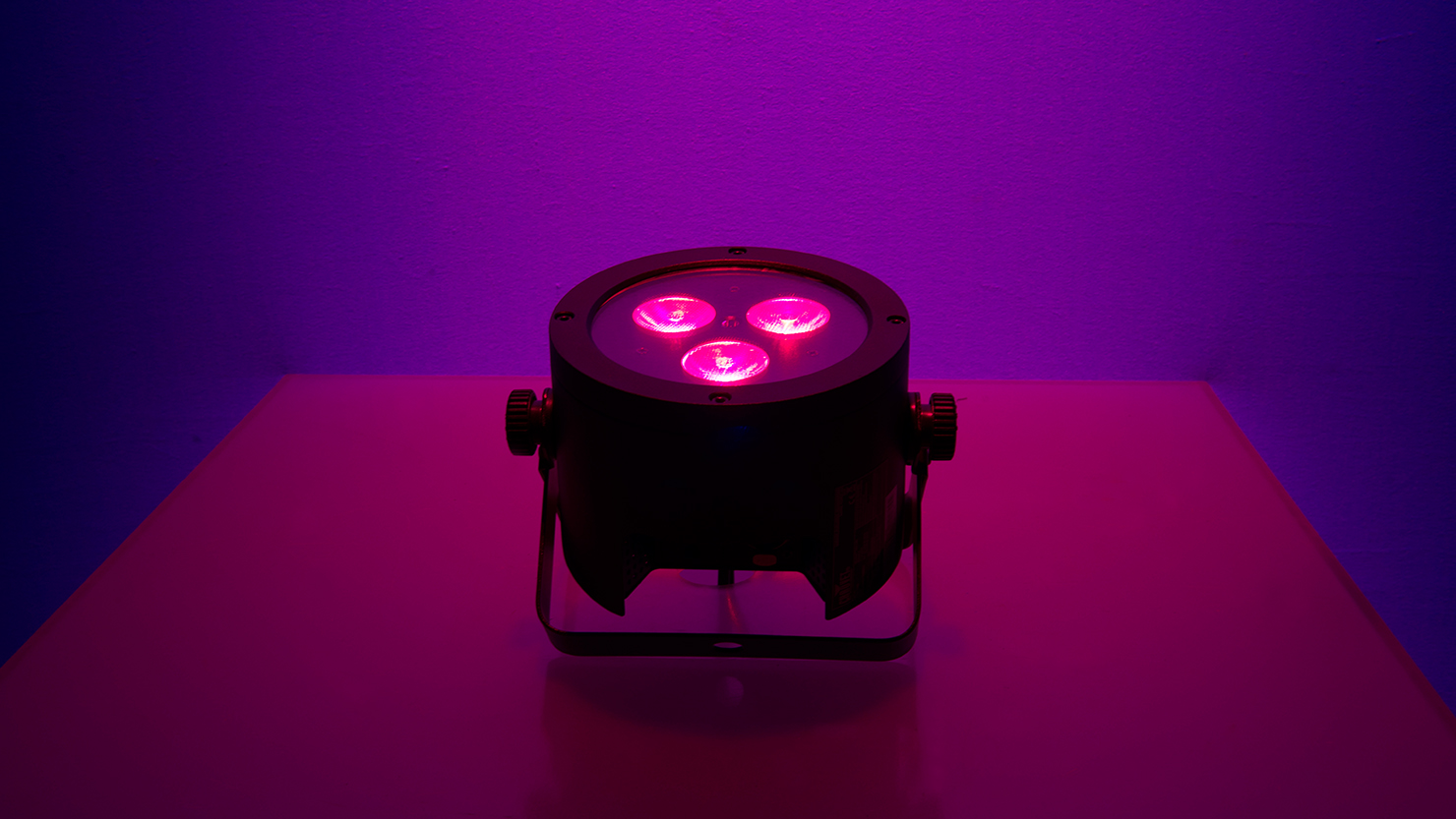

SlimPAR HEX 3 IRC is a low-profile LED PAR with 6-in-1 LED technology (RGBAW+UV) and built-in infrared remote control capability. A new, sit-flat housing design hugs the floor and features power and DMX outlets on the side of the unit, while 6-in-1 LED technology allows you to generate a broad spectrum of colors and achieve natural-looking color temperatures. For wireless operation and control, use the optional IRC-6 remote for point-and-shoot operation of static colors and automated programs. Its sleek and lightweight design easily fits inside sticks of TRUSST®, while DMX, Master/Slave and Sound-Active modes simplify control options. Create customized colors using the built-in LED display and achieve smooth LED fading with built-in dimming curves. SlimPAR HEX 3 IRC fits best in the optional CHS-30 VIP Gear Bag for secure and convenient transportation.

MSR_award image2

VIP Rewards Value: 200 Points



Highlights

  • Low-profile LED PAR with 6-in-1 LED technology (RGBAW+UV) and built-in infrared remote control capability

  • New, sit-flat housing design hugs the floor and features power and DMX outlets on the side of the unit

  • Generate a broad spectrum of colors and achieve natural-looking color temperatures with 6-in-1 LED technology

  • Point-and-shoot operation of static colors and automated programs with the optional IRC-6 remote

  • Save time running cables and extension cords by power linking multiple units

  • Multiple control options include DMX, Master/Slave and Sound-Active modes

  • Create customized colors using the built-in LED display

  • Achieve smooth LED fading with built-in dimming curves

  • Easily transports in the optional CHS-30 VIP Gear Bag

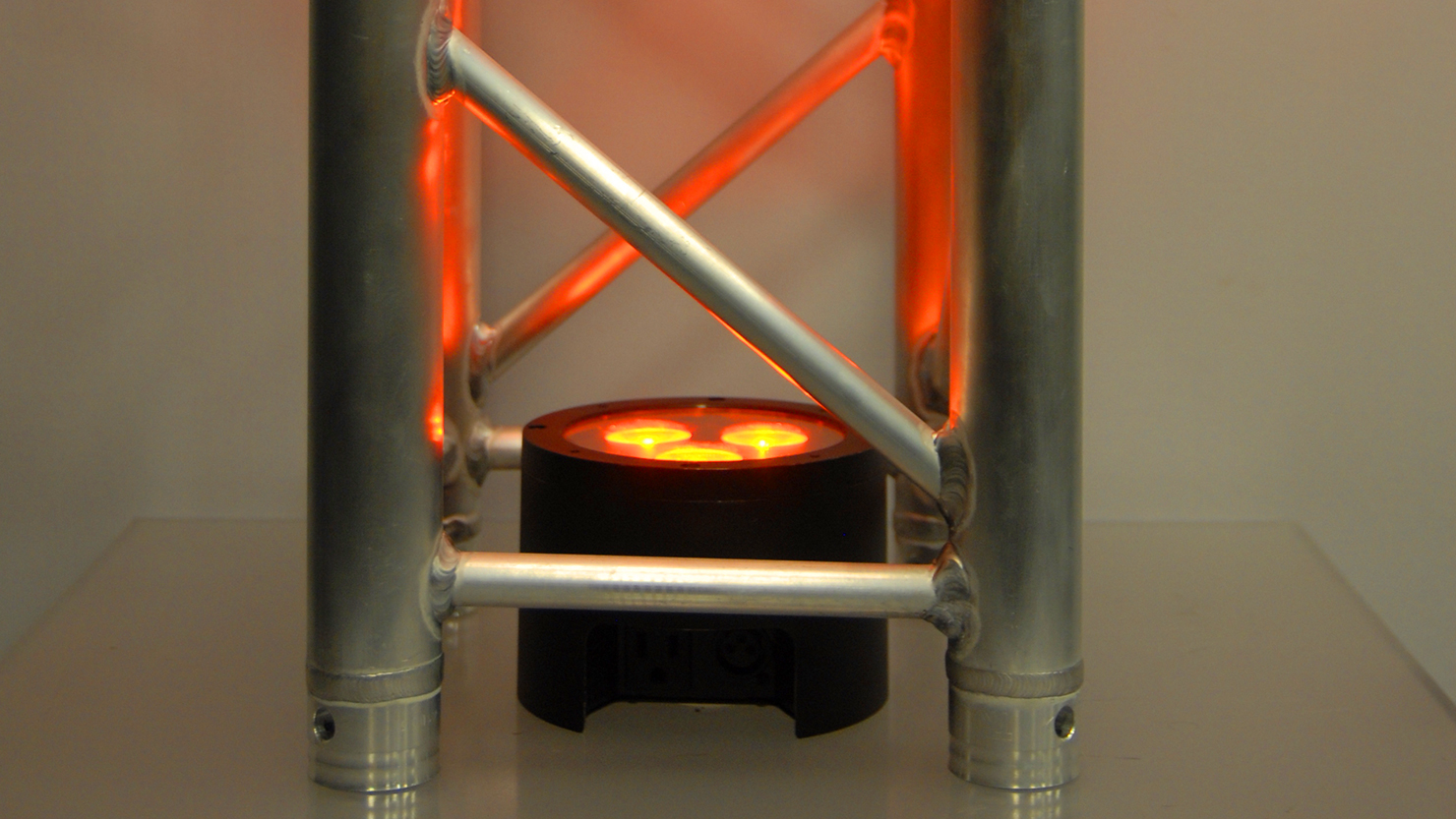

  • Sleek and lightweight to easily fit inside sticks of TRUSST®

Specifications

  • DMX Channels:6, 8 or 12
  • DMX Connectors:3-pin XLR
  • Light Source:3 LEDs (hex-color RGBAW+UV) 10 W (2.4 A), 50,000 hours life expectancy
  • Strobe Rate:0 to 17 Hz
  • PWM Frequency:1,200 Hz
  • Beam Angle:23°
  • Field Angle:41°
  • Illuminance:907 lux @ 2 m
  • Power Linking:21 units @ 120 V; 39 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:44 W, 0.4 A @ 120 V, 60 Hz
    46 W, 0.2 A @ 230 V, 50 Hz
  • Weight:3.6 lb (1.7 kg)
  • Size:8.3 x 7.4 x 4.3 in (210 x 187 x 108 mm)
  • Approvals:CE
  • Optional Controllers: IRC-6
  • Wavelength (UV): 400 to 410 nm

What's Included

  • SlimPAR HEX 3 IRC
  • Power Cord
  • Warranty Card
  • Stickers
