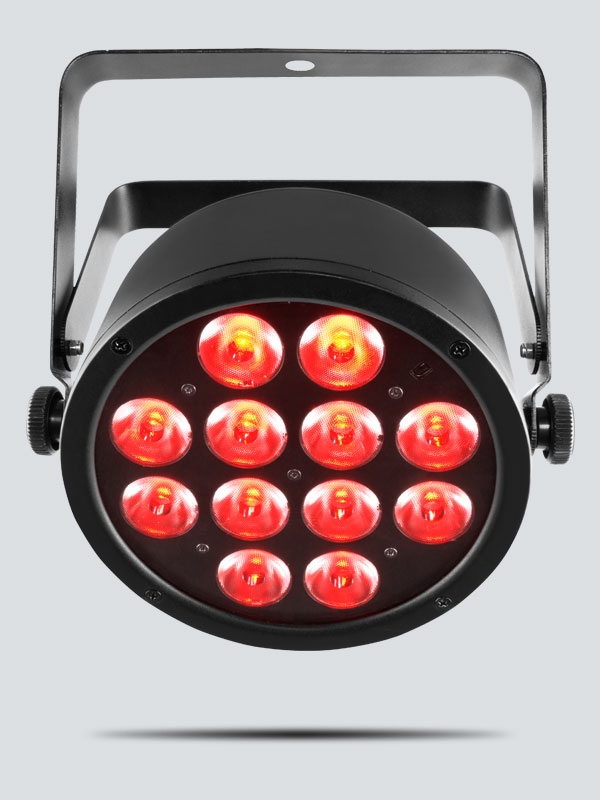

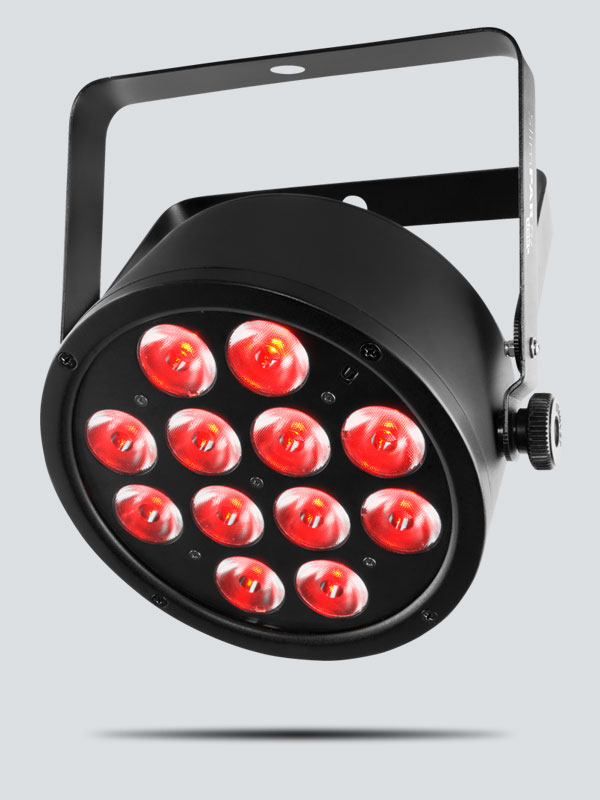

SlimPAR T12 USB

SlimPAR T12 USB is a high output tri-color (RBG) LED wash light with built-in D-FI USB compatibility to allow instant wireless control in DMX or master/slave mode. Tri-color LEDs virtually eliminate distractive multicolored shadows. The even, flicker-free output of this fixture makes it ideal for front light applications and use in video productions. The optional IRC-6 remote can be used to access automated programs, and control static colors. Compact enough to fit inside truss sticks, SlimPAR T12 USB is best transported in the CHS-30 VIP Gear Bag.

Highlights

  • Low-profile, high-output tri-color (RGB) LED Par

  • D-Fi™ USB compatibility for wireless Master/Slave or DMX control

  • Slaves perfectly with other tri-color USB-series products including the 4BAR™ Tri USB

  • Nearly eliminate multicolored shadows with high-power, tri-color LEDs

  • Convenient access to RGB color mixing and static colors with or without DMX

  • Flicker-free operation suitable for on-camera use

  • Save time running cables and extension cords by power linking multiple units

  • Access built-in automated programs via IRC-6 remote, Master/Slave or DMX

  • Easily control static colors and automated programs with the optional IRC-6 remote

  • Fits best in the CHS-30 VIP Gear Bag

  • Compact design easily fits inside sticks of TRUSST®

Specifications

  • DMX Channels: 3 or 8
  • DMX Connectors: 3-pin XLR
  • Light Source: 12 LEDs (tri-color RGB) 3 W (1 A), 50,000 hours life expectancy
  • Strobe Rate: 0 to 20 Hz
  • PWM Frequency: 1,200 Hz
  • Beam Angle: 15°
  • Field Angle: 29°
  • Illuminance: 3,801 lux @ 2 m
  • Power Linking: 14 units @ 120 V; 25 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 39 W, 0.6 A @ 120 V, 60 Hz
    39 W, 0.3 A @ 230 V, 50 Hz
  • Weight: 4 lb (1.8 kg)
  • Size: 8.9 x 3.3 x 9.9 in (227 x 84 x 252 mm)
  • Approvals: CE
  • Optional Controllers: IRC-6, D-Fi™ USB

What's Included

  • SlimPAR T12 USB
  • Power cord
  • Hanging bracket with mounting hardware
  • Warranty card
  • Quick Reference Guide
