Discontinued Since 2014

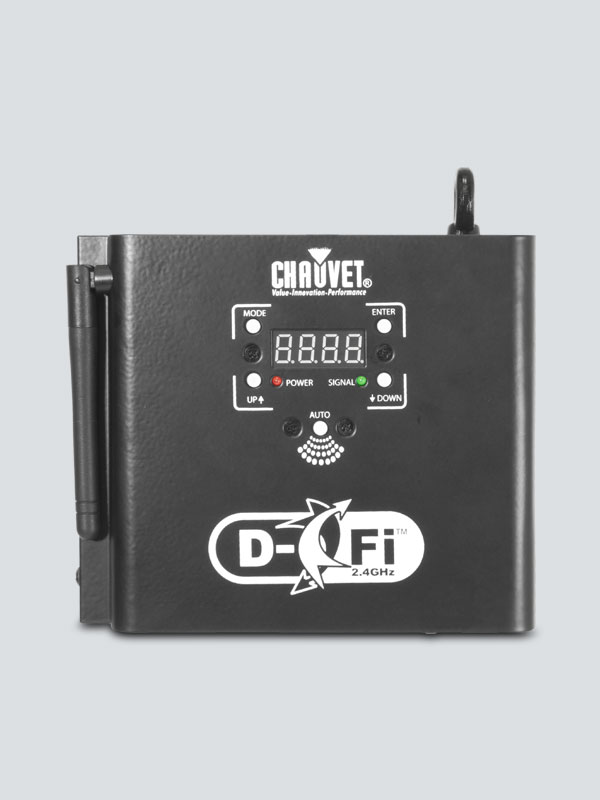

D-Fi 2.4GHz

D-Fi 2.4GHz is the latest addition to the D-Fi family of easy to use, wireless DMX units which can function as either a transmitter or receiver. For more stable communication between units, this version operates on a 2.4 GHz frequency range and includes an “auto” function which automatically finds the best frequency and syncs the units effortlessly.

Highlights

  • Wireless DMX transmitter and receiver housed in a single unit

  • Wirelessly synchronize multiple D-Fi™ 2.4GHz units with the press of a button

  • Synchronize an unlimited number of receivers with 1 transmitter

  • Fully FCC compliant

  • Find the clearest channel available using the auto search function

  • Each transmitter supports 1 universe of DMX

  • Up to a 200 m (656 ft) range (clear line of sight)

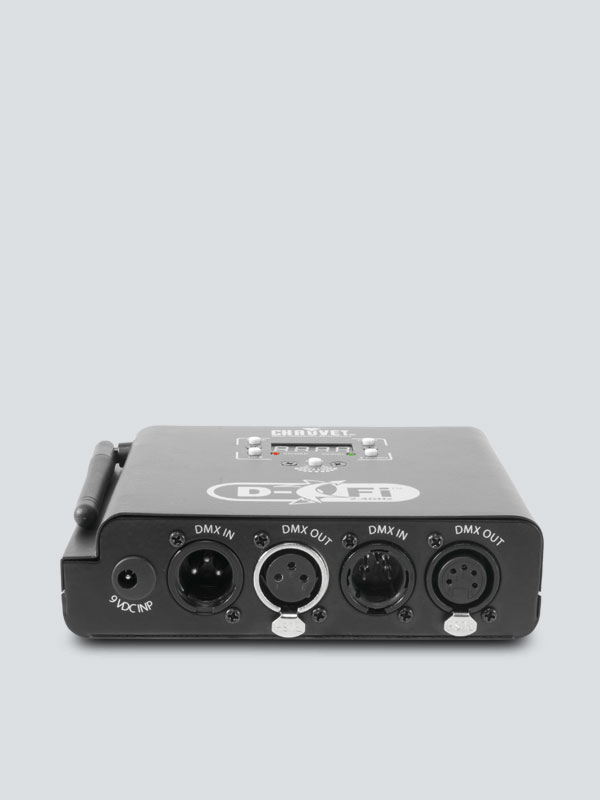

  • Increase flexibility with 3- and 5-pin XLR DMX capability

  • Mounting options include teardrop holes for wall mounting and an M12 threaded hole for a clamp

  • Capable of worldwide use with the built-in, 120 to 240 V auto-switching transformer

Specifications

  • DMX Connectors: 3- and 5-pin XLR
  • Max Unobstructed Distance: 656 ft (200 m)
  • Operating Frequency: 2.433 to 2.481 GHz
  • Input Voltage: 9 VDC, 500 mA (external power supply: 115 VAC, 60 Hz)
  • Weight: 0.8 lb (0.4 kg)
  • Dimensions: 5.8 x 6.1 x 1.6 in (152 x 156 x 40 mm)
  • Approvals: CE, FCC
  • RF Output: 18.5 dBm
  • Antenna Connection: RP-SMA

What's Included

  • D-Fi 2.4GHz
