DMX-AN2

Submit A Review

Read Our Review

3 out of 5 stars (based on 2 reviews)

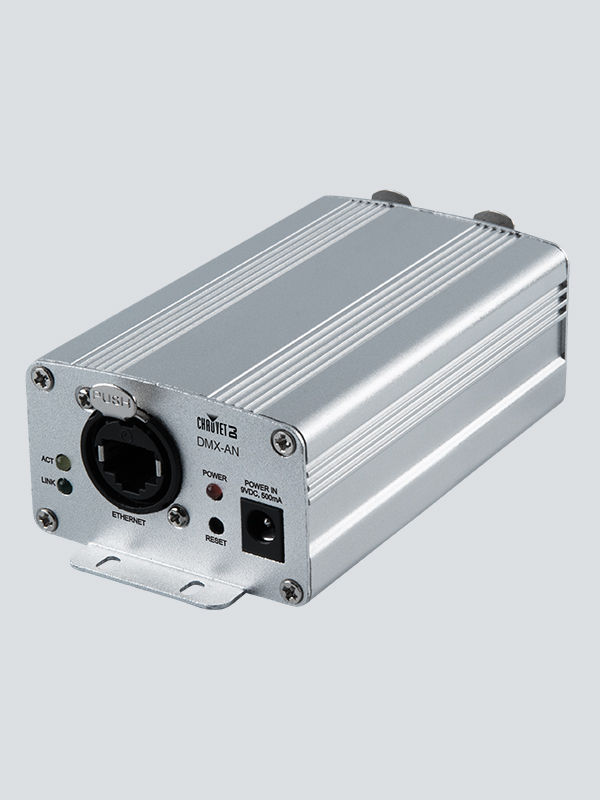

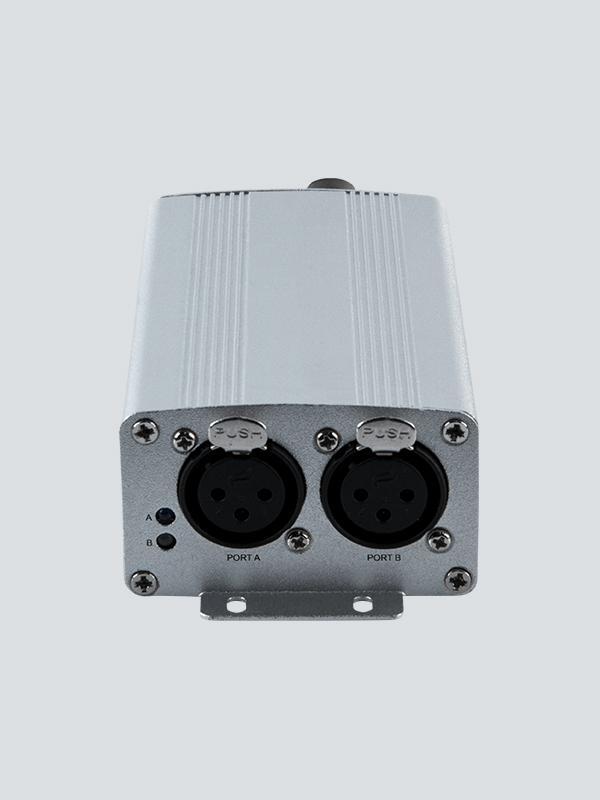

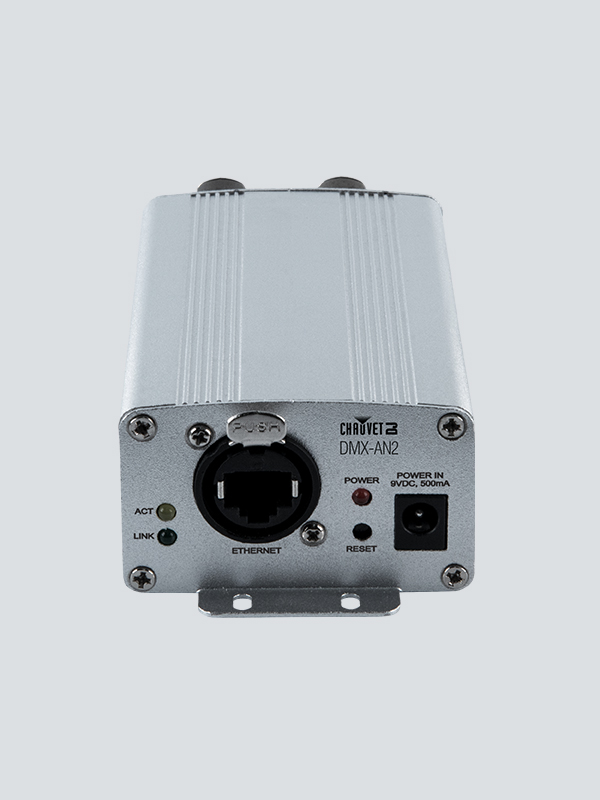

DMX AN2 is a multi-purpose Art-Net/sACN node that converts 1 Ethernet cable to 2 DMX universes. Its optical and electrical isolation is ready for any situation and the durable Neutrik® etherCON® in/through port ensures reliability. The built-in web-based GUI means no universe/subnet setup. DMX-AN2 automatically redirects the web page if the IP address is changed. The unit supports Power over Ethernet (POE) or an external power supply. Both outputs can be set to either Art-Net or sACN and DMX-AN2 functions as an Art-Net to DMX or DMX to Art-Net interface. Onboard LED indicators quickly inform status and the integrated mounting bracket is included to quickly install into any location.

VIP Rewards Value: 220 Points



Highlights

  • Multi-purpose Art-Net/sACN node converts 1 Ethernet cable to 2 DMX universes

  • Optical and electrical isolation is ready for any situation

  • No universe/subnet setup with the built-in web based GUI

  • Durable Neutrik® etherCON® in/through port ensures reliability

  • Automatically redirects the web page if the IP address is changed

  • Supports Power over Ethernet (POE) or an external power supply

  • Both outputs can be set to either Art-Net or sACN

  • Functions as an Art-Net to DMX or DMX to Art-Net interface

  • Onboard LED indicators quickly inform status

  • Integrated mounting bracket to quickly install into any location

Specifications

  • DMX Channels: 1024
  • DMX Connectors: 3- pin XLR
  • Input Voltage: (DC): 9 VDC, 500 mA (external power supply: 100 to 240 VAC, 50/60 Hz)
    (POE): 48V 0.4 A
  • Weight: 0.4 lb (0.2 kg)
  • Size: 4.7 x 2.5 x 1.5 in (120 x 64 x 39 mm)
  • Approvals: CE
  • Control Protocol: Art-Net, DMX, sACN
  • Art-Net Version: 3

What's Included

  • DMX-AN2
  • DMX-AN2
  • Power Adapter

Downloads

Read Our Review

3 out of 5 stars (based on 2 reviews)

Great DMX Artnet node

October 24, 2019

LOVE THE 2 UNIVERSE POE NODE. PERFCT FOR DISTRIBUTING DMX OVER A STANDARD NETWORK. WEB GUI MAKES IT EASY TO MANAGE. EXCELLENT VALUE FOR THE PRICE!

MIKE MITCHELL

Not as it seems

October 8, 2019

i feel dooped. i watched videos (by chauvet,) read reviews, read the product DESCRIPTION and nowhere does it say you need an xpress512 box in order for this to work. found this out after getting it in the mail and tried to play with it. looked up how to make it work, and only then did i find someone on youtube explaining that you do indeed need the xpress512 box. in the chauvet video, one guy asks the other “do i need to buy anything else for this to work?” “no.” replied the other. I feel very misled by your adverts chauvet.

kyle FERGUSON
