Discontinued Since 2023

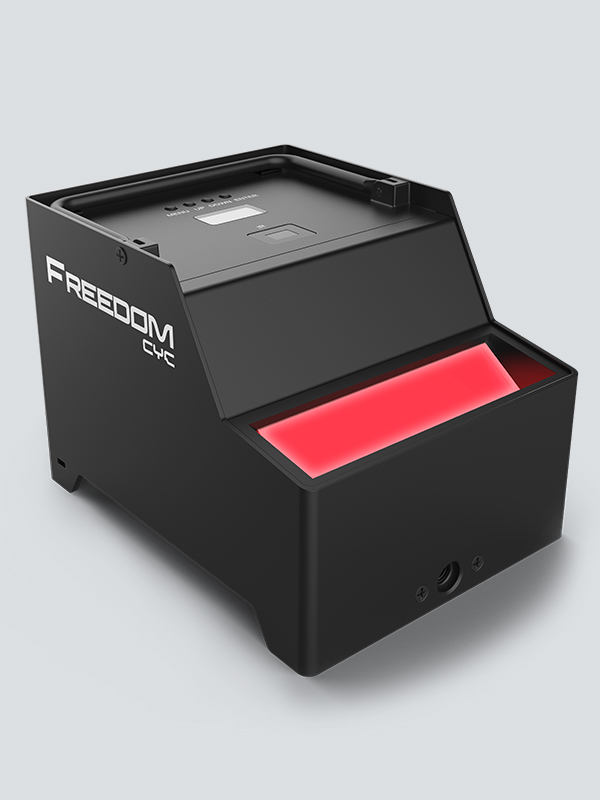

Freedom Cyc

Freedom Cyc is a 100% TRUE wireless, battery-operated cyclorama light that surfaces with a wide, even wash never before seen in a fixture of its size. Its unique lens design perfectly mixes the RGB+WW color spectrums. Freedom Cyc can be used on battery power or connected to electrical mains for even greater output! Being part of the Freedom family of 100% wireless products, Freedom Cyc can be controlled remotely and works in Master/Slave with other Freedom fixtures. The unit has multiple wireless control options via FlareCON, IRC-6, or DMX using a D-Fi transmitter. Quick access to the built-in color temperature presets eliminate programming time, and high-frequency LED dimming makes Freedom Cyc flicker-free and perfect for video use. Extend the battery’s lifespan with built-in discharge protection.

Highlights

  • 100% TRUE wireless, battery-operated cyc light blankets the wall with uniform colors

  • Unique lens design perfectly mixes the RGB + WW color spectrums

  • Can be used on battery or connected to electrical mains for even greater output

  • Multiple wireless control options via FlareCON, IRC-6 or DMX using a D-Fi transmitter

  • Quick access to the built-in color temperature presets eliminate programming time

  • Flicker-free on video due to the high-frequency LED dimming

  • Extend the battery’s lifespan with built-in discharge protection

  • Works in master/slave with other Freedom fixtures

Specifications

  • DMX Channels:4, 6 or 10

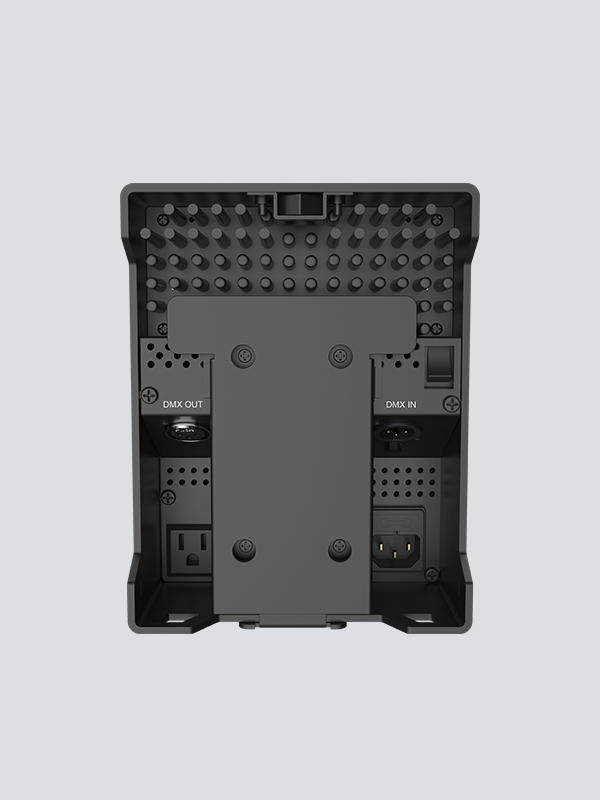

  • DMX Connectors:3-pin XLR
  • Max Unobstructed Distance:650 ft (183 m)
  • Light Source:16 LEDs (4 red, 4 green, 4 blue, 4 warm white) 48 W total (3.5 A), 50,000 hours life expectancy
  • Strobe Rate:0 to 22 Hz
  • PWM Frequency:1.2 KHz
  • Beam Angle:52°
  • Field Angle:95°
  • Maximum Run Time:(all on): up to 8 hours
    (single color): up to 20 hours
  • Recharge Time:5 hours
  • Operating Frequency:2.412 to 2.484 GHz
  • Illuminance:418 lux @ 2 m
  • Lumens:1,824
  • Power Linking:15 units @ 120 V; 29 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:64 W, 0.5 A @ 120 V, 60 Hz
    61 W, 0.2 A @ 230 V, 50 Hz
  • Weight:7.2 lb (3.3 kg)
  • Size:7.5 x 5.8 x 5.4 in (191.2 x 148.2 x 138 mm)
  • Approvals:CE, FCC
  • Color Temperature Range: 2800 to 6500 K
  • Bracket Mounting Hole: M12
  • Optional Controllers: FlareCON Air

What's Included

  • Freedom Cyc
  • Freedom Cyc
  • Power cord
  • Quick Reference Guide
  • IRC-6
