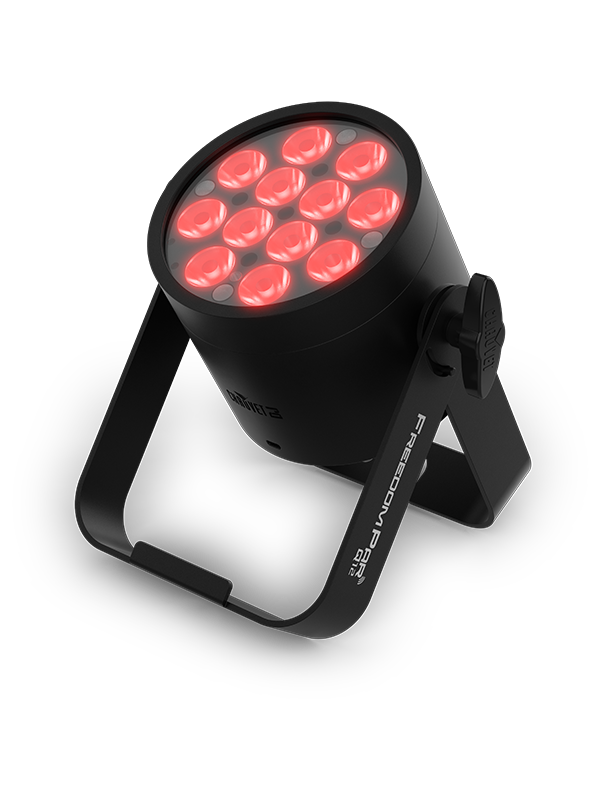

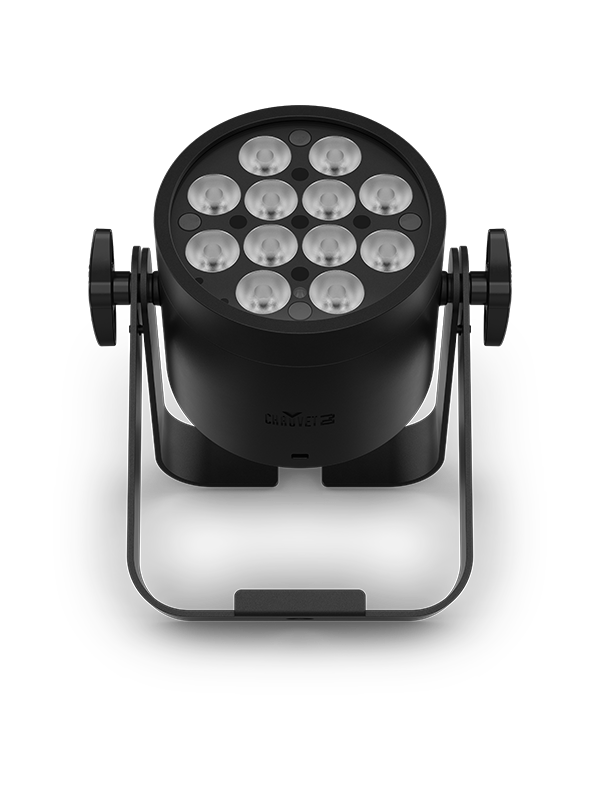

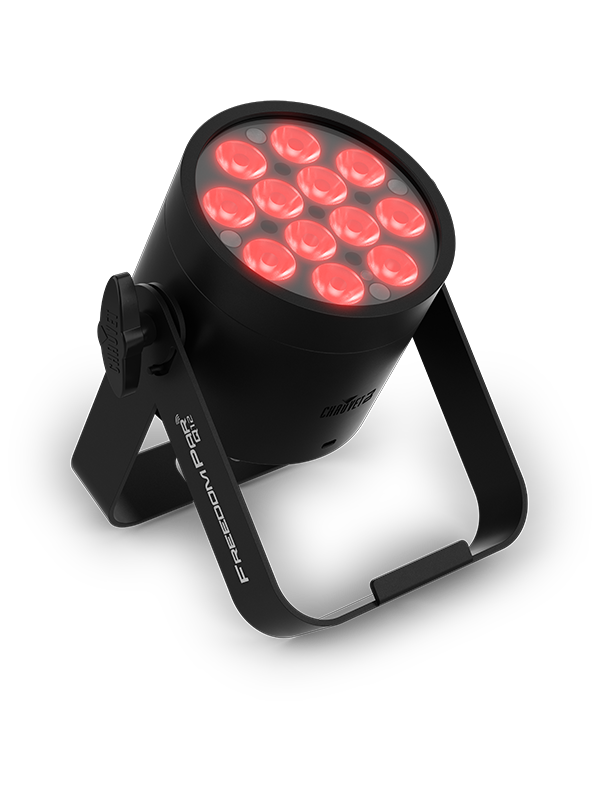

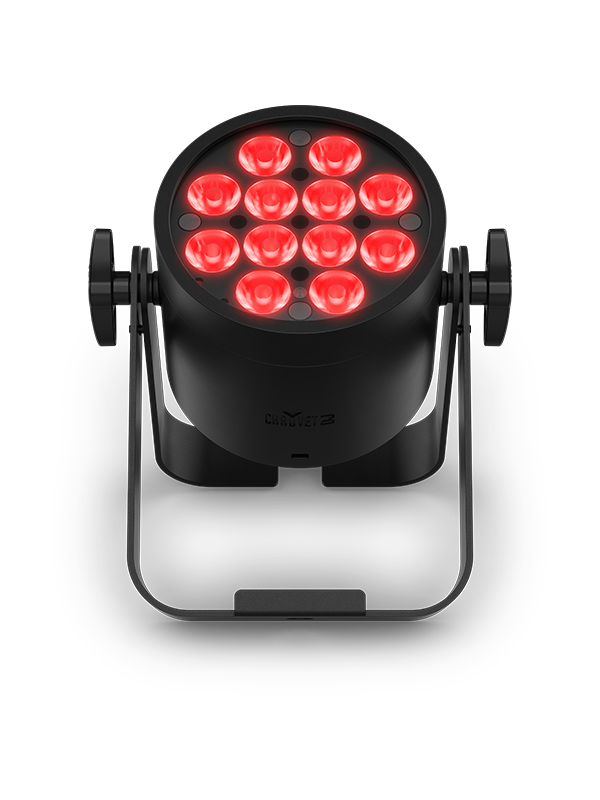

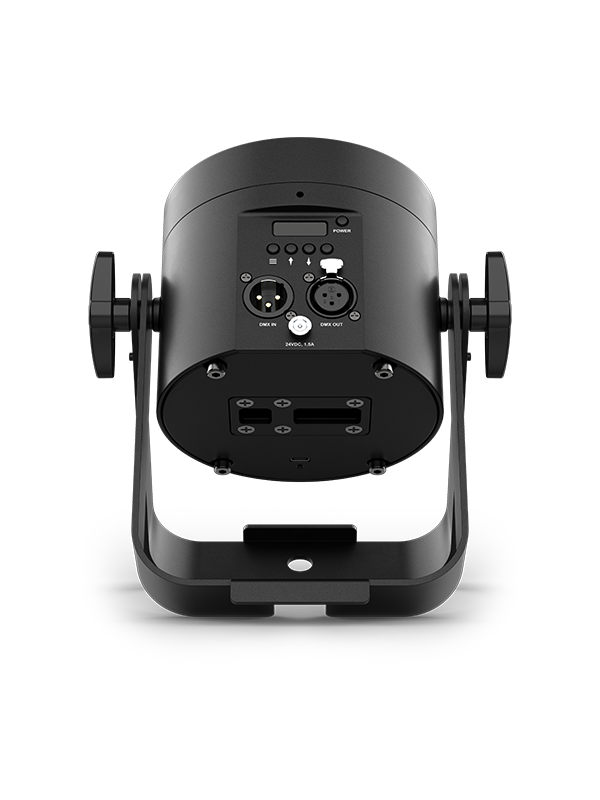

Freedom Par Q12

When your event calls for bright, punchy, battery-operated uplighting, reach for Freedom Par Q12. Add perfectly blended color to any room like an event boss with this fully wireless quad-color uplight. Enjoy flexible control with both built-in D-Fi and a built-in RF receiver. Place inside sticks of TRUSST® for instant truss warming looks. With an easy-to-read full-text OLED display that lets you pick the right dimming curve for your light show—keep your uplighting going all event long!

Highlights

  • 100% TRUE wireless, battery-operated, quad-color (RGBA) LED uplight with built-in D-Fi transceiver

  • New secondary optics provide perfect color blending with nearly no artifacts

  • Magnetic diffuser pops on or off with ease and widens the coverage area

  • OLED display allows for full-text and to easily change fixture settings

  • Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes

  • Adjust the projection angle using the spring-loaded kickstand

  • Extend the fixture’s lifespan with the onboard charge and discharge protection circuitry

  • Achieve smooth LED fading with built-in dimming curves

  • Compact and lightweight design easily fits inside sticks of TRUSST®

Specifications

  • DMX Channels:4, 6, or 14
  • DMX Connectors:3-pin XLR
  • Max Unobstructed Distance:600 ft (183 m)
  • Light Source:12 LEDs (quad-color RGBA) 6W, (1.5 A), 50,000 hours life expectancy
  • Strobe Rate: 0 to 20 Hz
  • Beam Angle:12°
  • Field Angle:23°
  • Maximum Run Time:up to 7 hours
  • Recharge Time:4 hours
  • Operating Frequency:2.412 to 2.484 GHz
  • Illuminance:4,185 lux @ 2 m
  • Lumens:1,255
  • Input Voltage:24 VDC, 1.5 A (external power supply: 24 VDC, 50/60 Hz)
  • Power and Current:22 W, 0.3 A @ 120 V, 60 Hz
  • Power and Current:22 W, 0.2 A @ 230 V, 50 Hz
  • Weight:5.4 lbs (2.4 kg)
  • Size:8.7 x 7.8 x 4.8 in (222 x 197 x 123 mm)
  • Approvals:CE, RoHS, FCC
  • Illuminance (with diffuser): 1,005 lux @ 2 m
  • Maximum Run Time (single color): up to 9.5 hours
  • Startup Temperature: -4 °F to 113 °F (-20 °C to 45 °C)
  • Operating Temperature: -22 °F to 113 °F (-30 °C to 45 °C)
  • Optional Controllers: RFC, RFC-XL

What's Included

  • Freedom Par Q12
  • Freedom Par Q12
  • External power supply
  • Magnetic diffuser
  • Quick Reference Guide
