Goal Post Kit

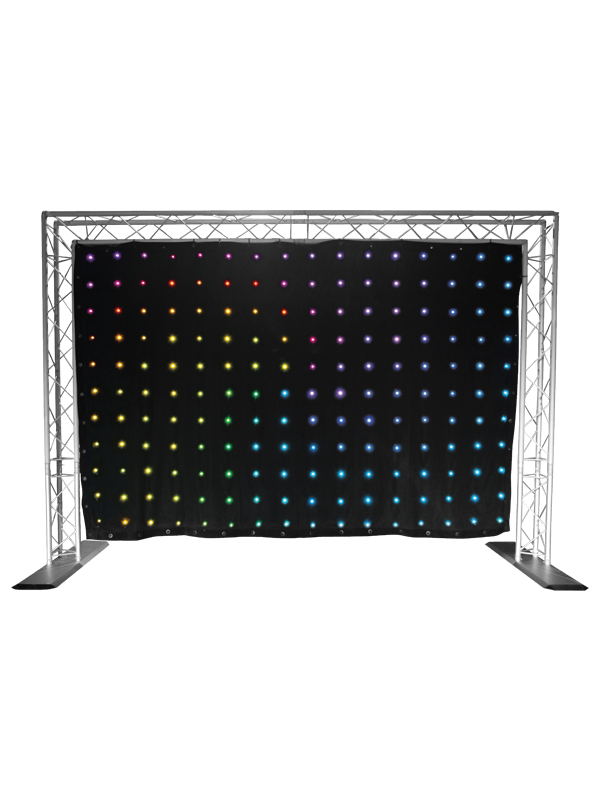

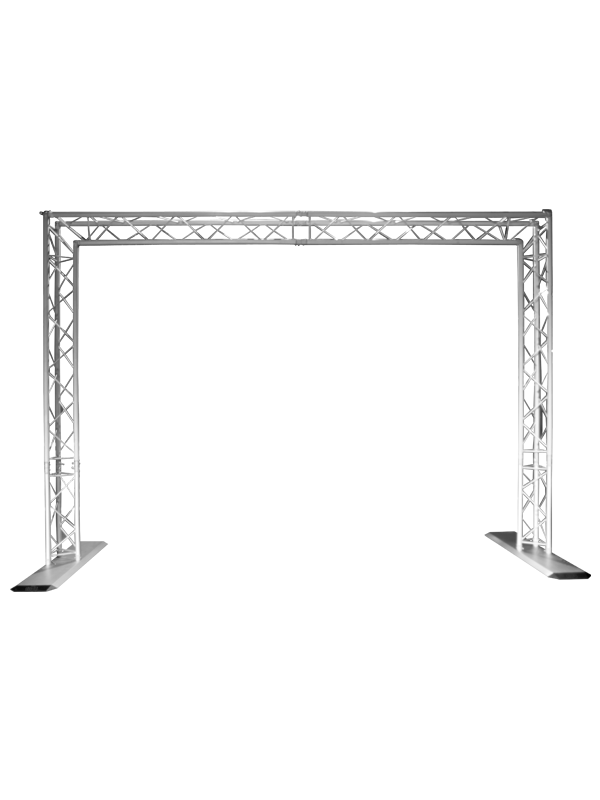

Goal Post truss Kit is a lightweight 35 mm triangular truss providing the perfect location to mount lights and hang backdrops for a professional presentation. It assembles in minutes using numbered sections.

For added value and versatility, the lightweight aluminum truss can be assembled at two different heights. Lighting truss kits are perfect for venues with low ceilings or even your home with height of 7.8ft. Get a professional look in minutes with this affordable solution designed for DJs, bands, or any entertainer on the go.

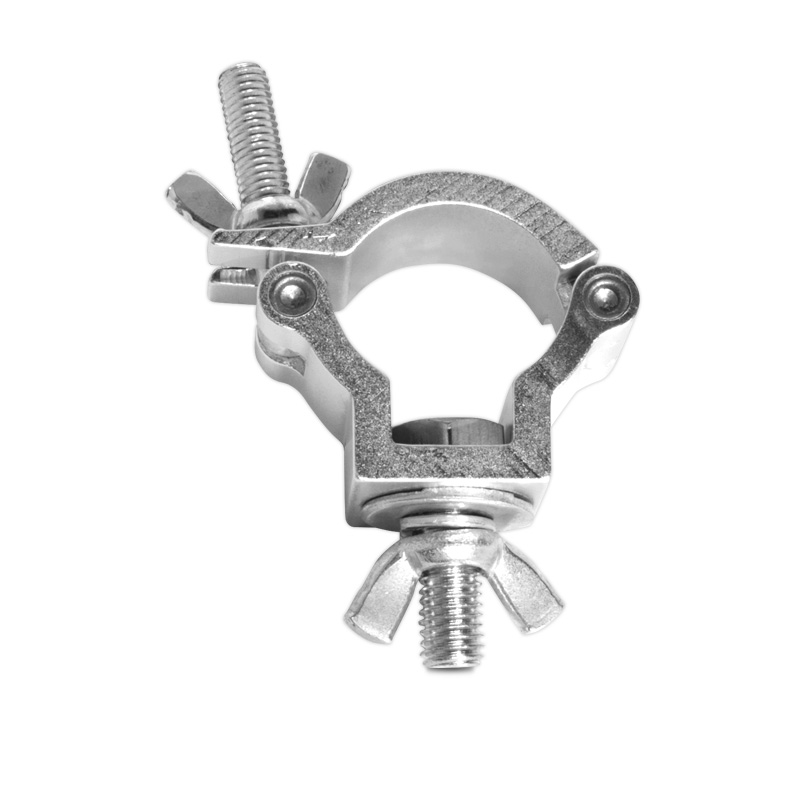

To attach lighting and other effects securely and safely to the Goal Kit, use the optional CLP-35HC clamp.

*includes Mexico & Canada

Highlights

  • Portable goal post truss system designed to enhance any mobile set up at any size venue

  • Quick and easy set up and tear down with pre-labeled connections and quick release pins

  • Enhances durability and corrosion resistance with aluminum construction

  • Holds up to 595lbs (270kg) (evenly distributed) when fully assembled

  • Match any setup with selectable 5.5ft or 7.7ft height options

Specifications

  • Weight:98lb (44.4 kg)
  • Outer diameter tube: 1.38 in (35 mm)
  • Diagonal bracing: 0.31 in (8 mm)
  • Centerpoint load: 243 lb (110 kg)
  • Distributed load: 595 lb (270 kg)
  • Wall thickness: 0.2 in (5 mm)
  • Size (assembled): 11.2 x 3.8 x 7.7 ft (3.4 x 1.1 x 2.3 m)
  • Size (internal): 9.9 x 7 ft (3 x 2.1 m)
  • Size (external): 11.2 x 7.7 ft (3.4 x 2.3 m)
  • Base plate dimensions: 43.3 x 10.7 x 1.5 in (1100 x 273 x 38 mm)

What's Included

  • Goal Post Kit
  • QT-GOAL
  • Warranty Card
  • Quick Reference Guide
