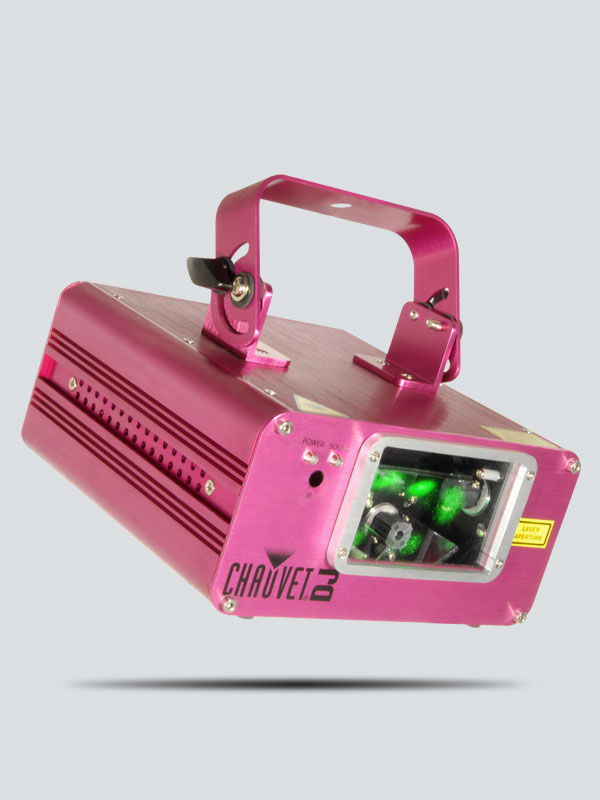

Scorpion Dual

Scorpion Dual provides you with dual FAT BEAM aerial effect laser, perfect for events with fog or haze. The unique dual mirror output makes a great centerpiece or side accent in pairs and includes 32 built-in patterns, including the popular “Laser Sky” effect. Generate customized and ever-changing laser shows using programmable pan, tilt, and zoom effects with separate X, Y, and Z rolling effects and scan speed adjustment. Easily operate in automatic, Master/Slave, manual or sound-activated mode or wireless control using the included IR remote.

Highlights

  • Dual FAT BEAM™ aerial effect laser, perfect for events with fog or haze

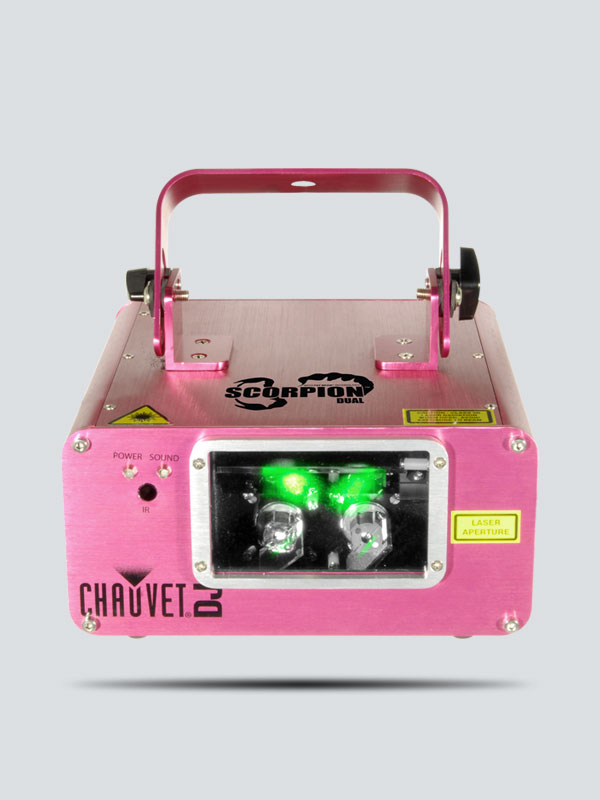

  • Unique dual mirror output that makes a great centerpiece or side accent in pairs

  • 32 built-in patterns, including the popular “Laser Sky” effect

  • Wireless control using the included IR remote

  • Generate customized and ever-changing laser shows using programmable pan, tilt, and zoom effects with separate X, Y, and Z rolling effects and scan speed adjustment

  • Fully FDA compliant, variance-free and ready to use right out of the box

  • Easily operate in automatic, Master/Slave, manual or sound-activated mode

  • Fits best in CHS-40 VIP Gear Bag

Specifications

  • DMX Channels: 10
  • DMX Connectors: 3-pin XLR
  • Pan and Tilt: 30°/30° (variable)
  • Light Source: 532 nm/50 mW (green) laser diode
  • Power Linking: 44 units @ 120 V; 93 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 20 W, 0.2 A @ 120 V, 60 Hz
    19 W, 0.1 A @ 230 V, 50 Hz
  • Zoom Angle: 1° to 29°
  • Weight: 5.4 lb (2.4 kg)
  • Size: 8.9 x 8.1 x 7.6 in (226 x 205 x 194 mm)
  • Approvals: FDA
  • Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No.50, dated June 24, 2007.

What's Included

  • Scorpion Dual
  • Power cord
  • IR Remote
  • Warranty card
  • User Manual
  • Hanging bracket with mounting hardware
