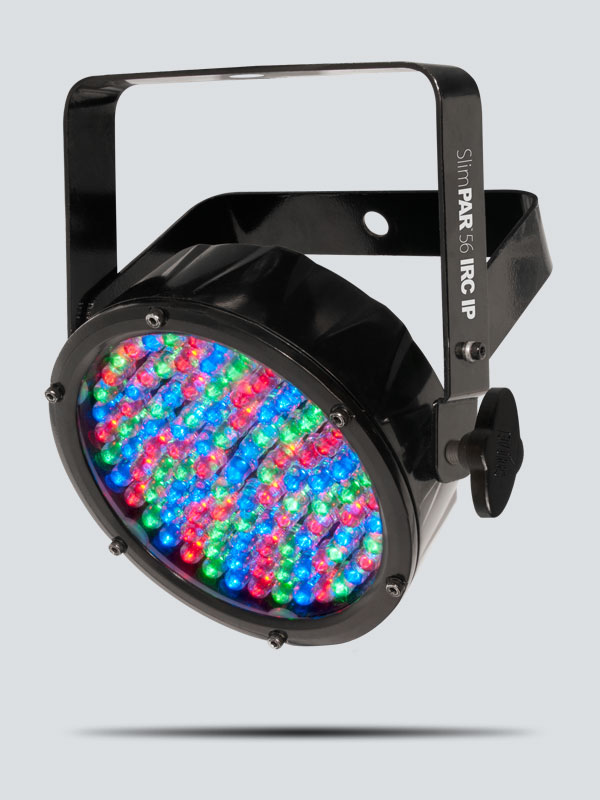

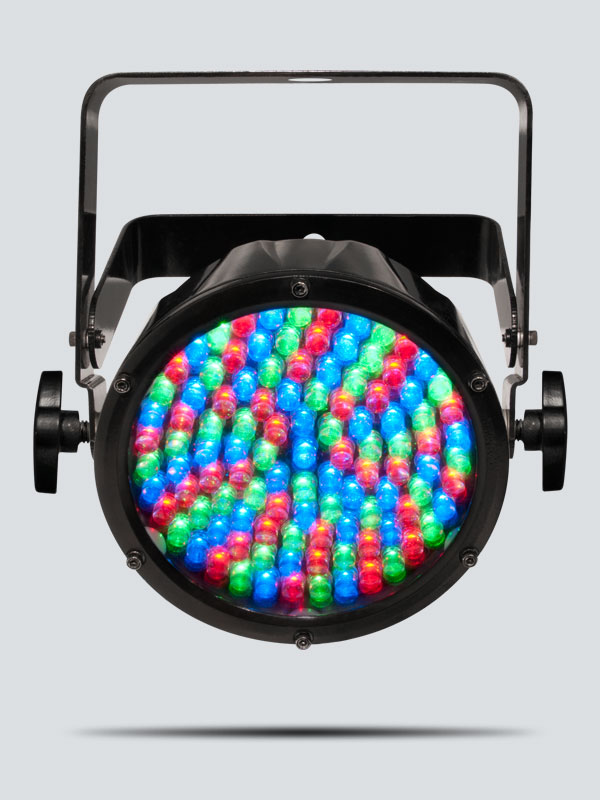

SlimPAR 56 IRC IP

SlimPAR 56 IRC IP is an LED PAR can-style wash light housed in a casing molded after the popular SlimPAR 56. Powered by 108 red, green and blue LEDs, this IP66-rated fixture eliminates the worry of ruining your units if they get wet during an outdoor event or have a drink spilled on them. Customize light shows using 3- or 7-channels of DMX control. Or, for added convenience, optional wireless remote control is available from the IRC-6 (Infrared Remote Control).

Highlights

  • Outdoor-rated, LED wash light designed for any temporary outdoor event

  • Eliminate the worry of rain or spilled drinks with innovative, weather-proof housing

  • Easy to store and transport due to its lightweight, slim design

  • For wireless, non-DMX control, use the optional IRC-6 remote

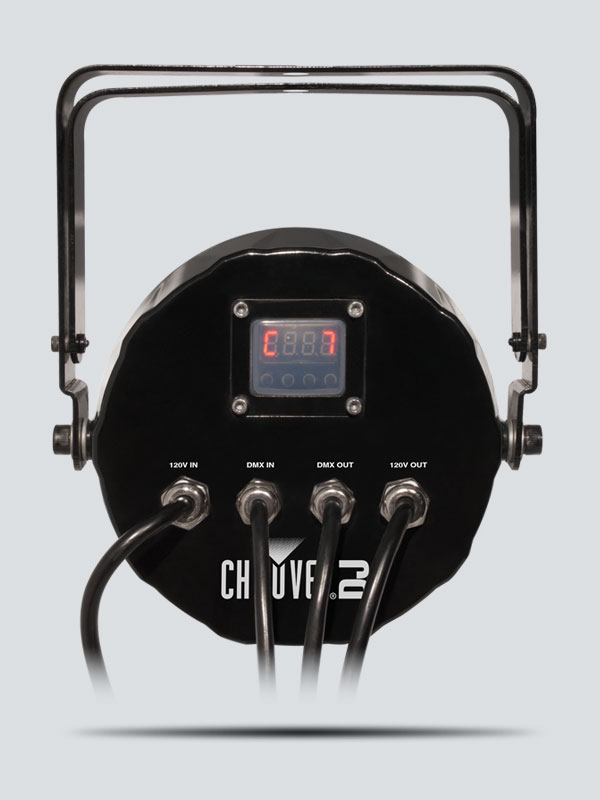

  • Reduce the need for extra extension cords with power and data linking outputs

  • Easily transport up to 4 units in the optional CHS-SP4 VIP Gear Bag

  • Create coordinated light shows by linking other fixtures in the SlimPAR™ series via Master/Slave mode

  • Fits best in the CHS-SP4 VIP Gear Bag

  • Compact design easily fits inside sticks of TRUSST®

Specifications

  • DMX Channels: 3 or 7
  • DMX Connectors: 3-pin XLR
  • Light Source: 108 LEDs (36 red, 36 green, 36 blue) 0.25 W (20 mA), 100,000 hours life expectancy
  • PWM Frequency: 1,200 Hz
  • Beam Angle: 14°
  • Field Angle: 23°
  • Illuminance: 876 lux @ 2 m
  • IP Rating: IP65
  • Power Linking: 49 units @ 120 V; 80 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 19 W, 0.2 A @ 120 V, 60 Hz
    21 W, 0.1 A @ 230 V, 50 Hz
  • Weight: 4.1 lb (1.9 kg)
  • Size: 9.3 x 8 x 3.2 in (236 x 203 x 82 mm)
  • Approvals: CE, MET
  • Optional Controllers: IRC-6
  • Startup Temperature: -4 °F to 113 °F (-20 to 45) °C
  • Operating Temperature: -22 °F to 113 °F (-30 to 45) °C

What's Included

  • SlimPAR 56 IRC IP
  • Power Cord
  • DMX (in) adaptor
  • DMX (out) adaptor
  • Quick Reference Guide
  • Warranty card
