Discontinued Since 2015

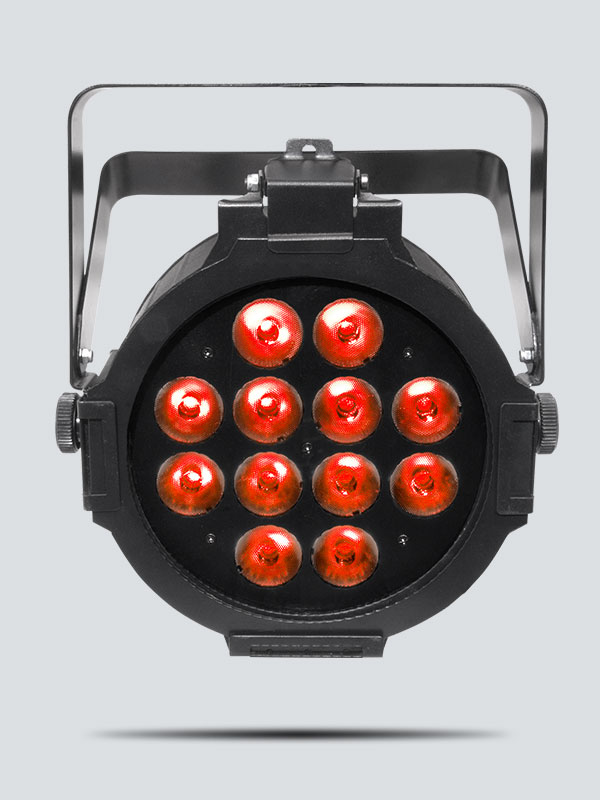

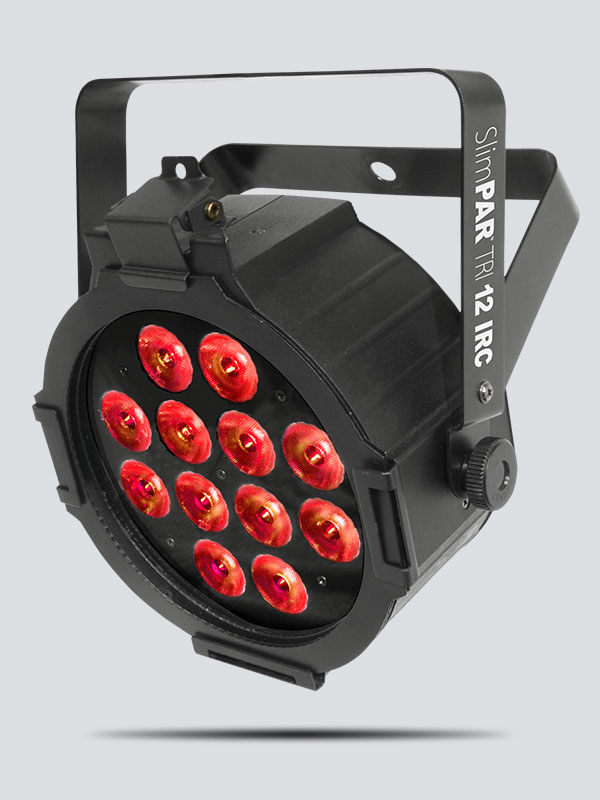

SlimPAR Tri 12 IRC

The SlimPAR Tri 12 IRC is a low profile, high-power LED Par designed for any application where wash lights are needed. Twelve tri-color LEDs make this the perfect front light by eliminating multicolored shadows and providing a smooth, even output. The addition of the IRC-6 (Infrared Remote Control) allows simple operation and eliminates the hassle of programming. With a 100% convection cooling system, there is no fan noise to distract the audience.

Highlights

  • Low-profile, tri-color LED Par with built-in infrared (IR) technology

  • Nearly eliminate multicolored shadows with high-power, tri-color LEDs

  • Convenient access to RGB color mixing and static colors with or without DMX

  • Emits a smooth and even output perfect for front light applications

  • Flicker-free operation suitable for on-camera use

  • Increase stand-alone versatility with multiple user-configurable settings

  • Save time running cables and extension cords by power linking multiple units

  • Access built-in automated programs via IRC-6 remote, Master/Slave or DMX

  • Easily control static colors and automated programs with the optional IRC-6 remote

  • Fits best in the CHS-30 VIP Gear Bag

Specifications

  • DMX Channels: 3 or 7
  • DMX Connectors: 3-pin XLR
  • Light Source: 12 LEDs (tri-color RGB) 3 W (1,050 mA), 50,000 hours life expectancy
  • PWM Frequency: 1,200 Hz
  • Beam Angle: 20°
  • Field Angle: 34°
  • Illuminance: 2,662 lux @ 2 m
  • Power Linking: 15 units @ 120 V; 26 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 64 W, 0.5 A @ 120 V, 60 Hz
    67 W, 0.3 A @ 230 V, 50 Hz
  • Weight: 5.7 lb (2.6 kg)
  • Size: 11.5 x 9.3 x 4.6 in (292 x 235 x 115 mm)
  • Approvals: CE
  • Optional Controllers: IRC-6

What's Included

  • SlimPAR Tri 12 IRC
