Swarm 5 FX

Submit A Review

Read Our Review

3 out of 5 stars (based on 3 reviews)

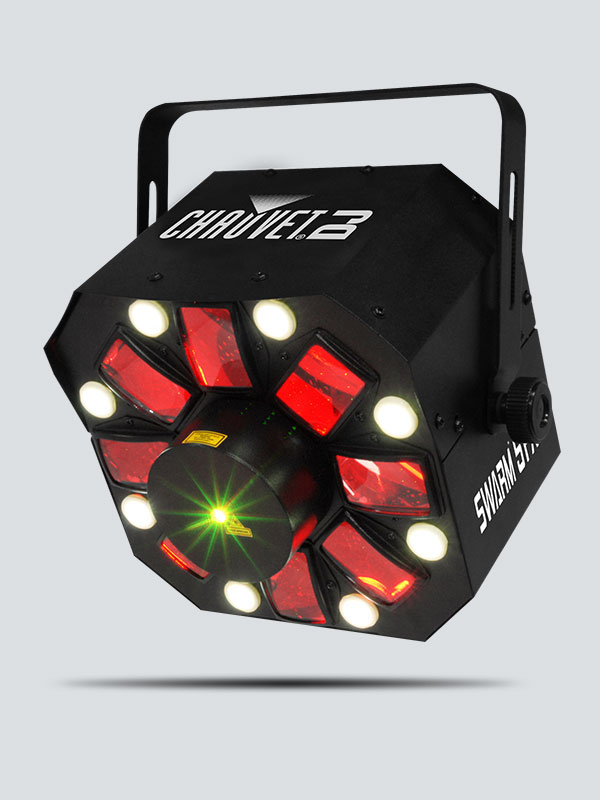

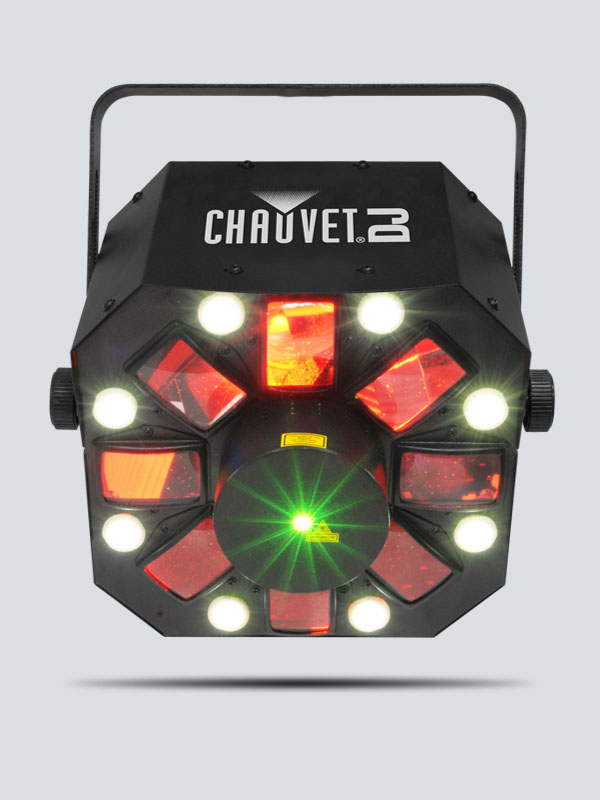

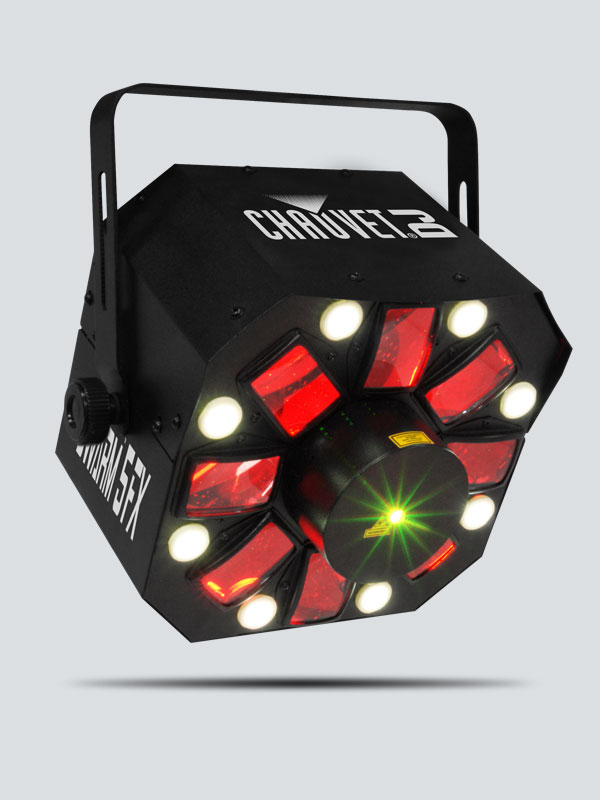

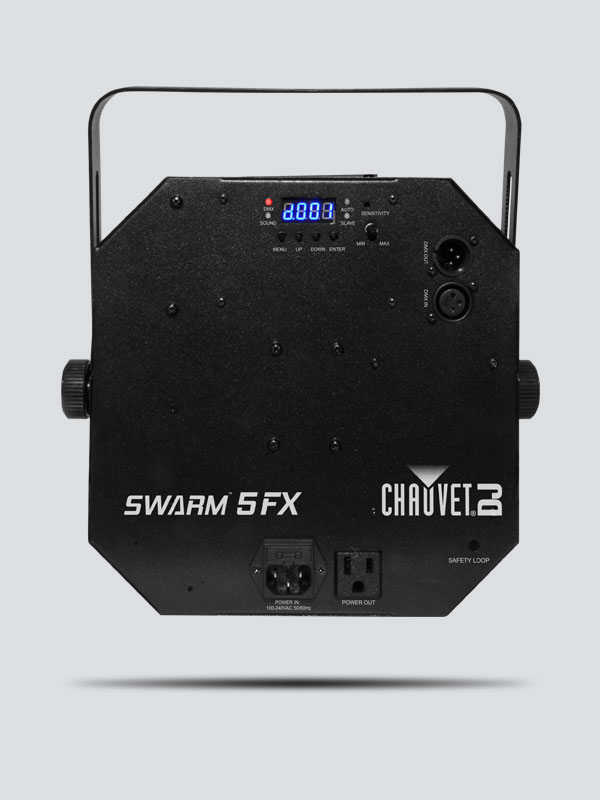

For movement and colorful effects at any event, Swarm 5 FX is a 3-in-1 LED effect light that combines red and green lasers, white strobe effects and RGBAW rotating derby effects into one fixture. Match the look of any event by creating customized looks and effects with separate color and program control. Increase control options using built-in automated and sound-activated programs or Master/Slave and DMX mode. Create a synchronized light show and save time running cables and extension cords by power linking multiple units. To simplify storage and transport, Swarm 5 FX fits best inside the CHS-40 VIP Gear Bag.

VIP Rewards Value: 300 Points



Highlights

  • 3-in-1 LED light that includes an RGBAW rotating derby, red/green laser and white strobe effect

  • Laser projects thousands of red and green laser beams

  • Operation allows for separate color and program control

  • Increase control options using automated and sound-activated programs, or Master/Slave and DMX modes

  • Save time running cables and extension cords by power linking multiple units

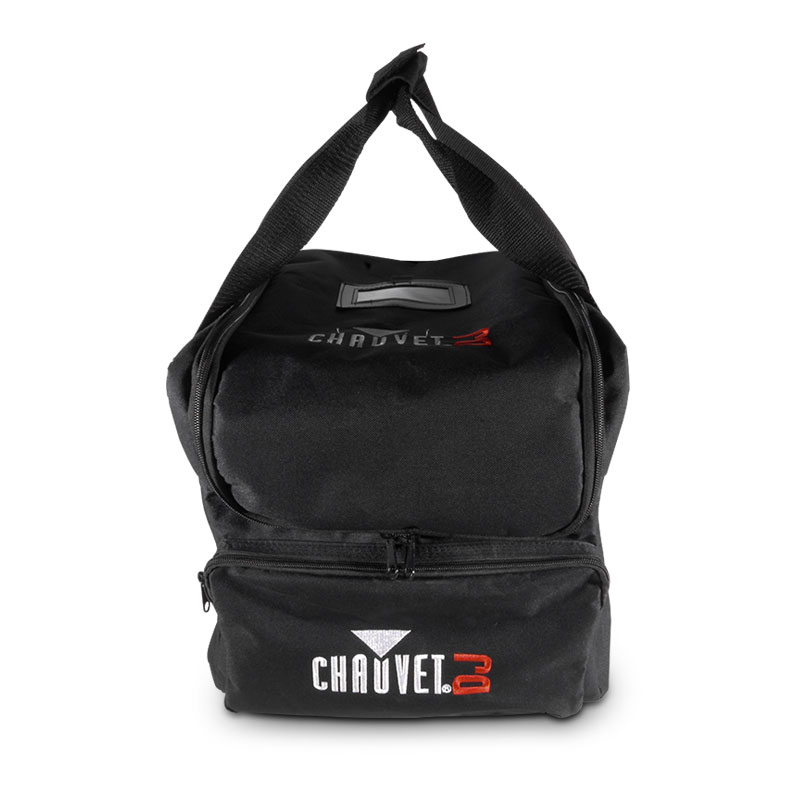

  • Fits best inside the CHS-40 VIP Gear Bag

Specifications

  • DMX Channels: 9
  • DMX Connectors: 3-pin XLR
  • Light Source: (Swarm™): 5 LEDs (1 red, 1 green, 1 blue, 1 amber, 1 white) 3 W (300 mA), 50,000 hours life expectancy
    (strobe): 8 LEDs (white) 1 W (300 mA), 50,000 hours life expectancy
    (laser): 532 nm/50 mW (green) laser diode, 650 nm/100 mW (red) laser diode
  • Strobe Rate: 0 to 20 Hz
  • Beam Angle: (strobe): 17°
  • Illuminance: (strobe): 823 lux @ 2 m
  • Power Linking: 15 units @ 120 V; 26 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 62 W, 0.5 A @ 120 V, 60 Hz
    66 W, 0.3 A @ 230 V, 50 Hz
  • Weight: 9.8 lb (4.5 kg)
  • Size: 9.75 x 11.7 x 12.2 in (248 x 298 x 310 mm)
  • Approvals: CE, FDA
  • Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.

What's Included

  • Swarm 5 FX
  • Power cord
  • Hanging Bracket w/ mounting hardware
  • Warranty card

Downloads

Read Our Review

3 out of 5 stars (based on 3 reviews)

Doesnt last long

January 17, 2020

As Steven mentioned in his review. I just did a gig and after the show I noticed the the mirror assembly inside had fallen off! Since this unit was out of warranty I opened it up and I had the exact same issue with the plastic mirror assembly. IT had cracked from one set screw to the other. I have ‘repaired’ it using some super glue and epoxy. What a cheap part! I wish I had a 3D printer handy to print a new one. Or maybe the shaft for the mirror could be longer and use a bolt or something rather than two set screws in crappy plastic. Expensive unit for cheap plastic!

Brennan Manley

Poorly designed

December 1, 2019

Mirror assembly is made of soft plastic, INcluding the Hub that the set screws are in. Both units have Failed mid-gig due to the hubs splitting. Very disappointed, especially since we Raised the issue with chauvet and heard nothing back from them.

Steven poor

Great light for the price

August 5, 2019

I have rented this light many times over the years. It has never failed me yet!

Will Adams
