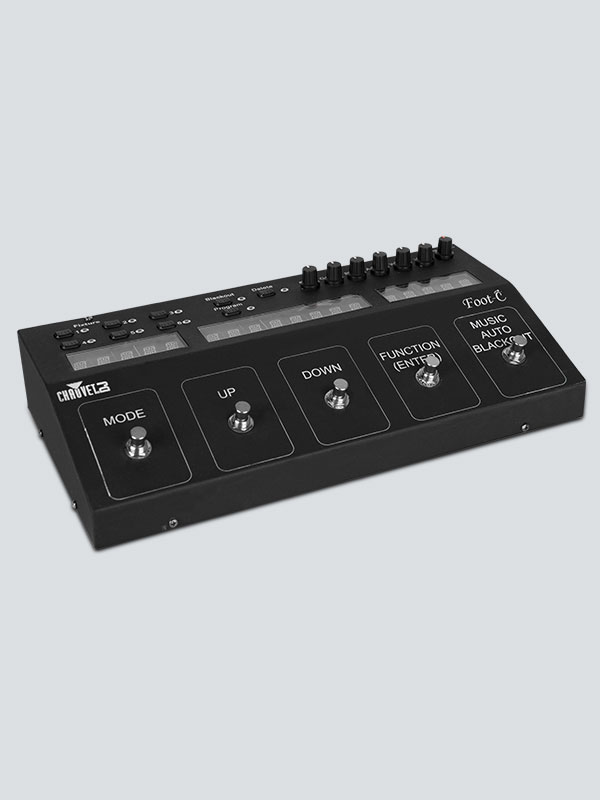

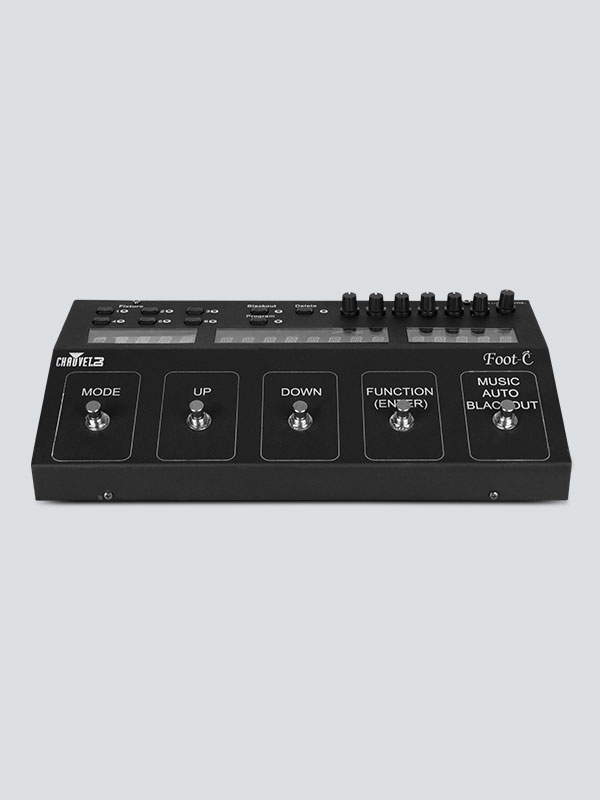

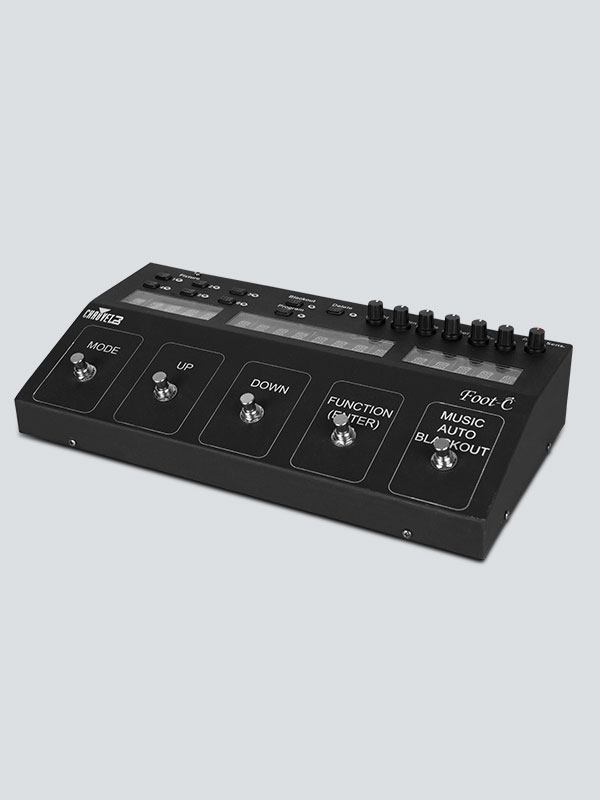

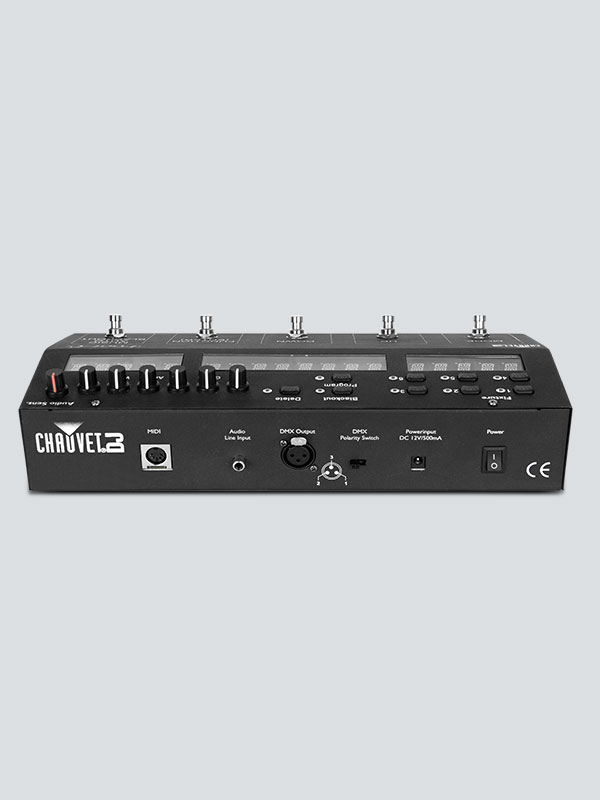

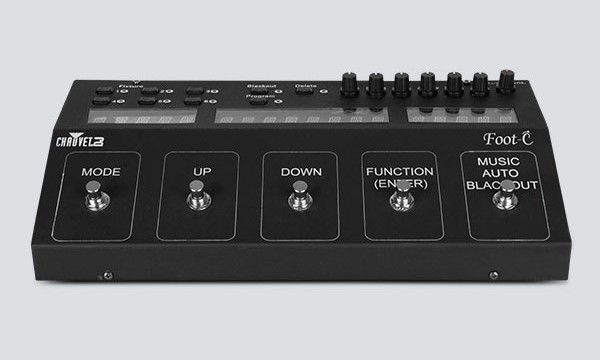

Foot-C

Foot-C is a compact 36-channel DMX foot controller that can control up to 6 six-channel fixtures and storing 12 sets of chases with up to 24 steps each. Ideal for 6-channel fixtures, it has a rugged guitar pedal-style buttons that can trigger auto and sound modes, as well as control chases and scenes. A LED display makes it easy to navigate the controller in any environment.

Highlights

  • Full-featured compact DMX foot controller with up to 36 channels of control

  • Designed to work with fixtures that have up to 6 channels

  • Guitar pedal-style buttons provide convenient and durable light access to light shows

  • Create and control a full light show of chases, scenes, fades, and more

  • Built-in Tap Sync, Auto, and Sound modes to match the feel and tempo of any show

  • Bright and easy-to-read LED displays show modes, functions, and values

  • Included MIDI input for the perfectly timed show

  • Direct audio line input triggers scenes with amazing accuracy

  • Fits best in the CHS-25 VIP Gear Bag

Specifications

  • DMX Channels: 36
  • DMX Connectors: 3-pin XLR
  • Input Voltage: 12 VDC, 1 A (external power supply: 100 to 240 VAC, 50/60 Hz)
  • Power and Current: 1 W, 0.032 A @ 120 V, 60 Hz
    1 W, 0.023 A @ 230 V, 50 Hz
  • Weight: 4 lb (1.9 kg)
  • Size: 7.2 x 14.2 x 2.6 in (183 x 360 x 66 mm)
  • Approvals: CE
  • Audio Line Connector: RCA

What's Included

  • Foot-C
  • Power cord
  • Warranty Card
