Discontinued Since 2023

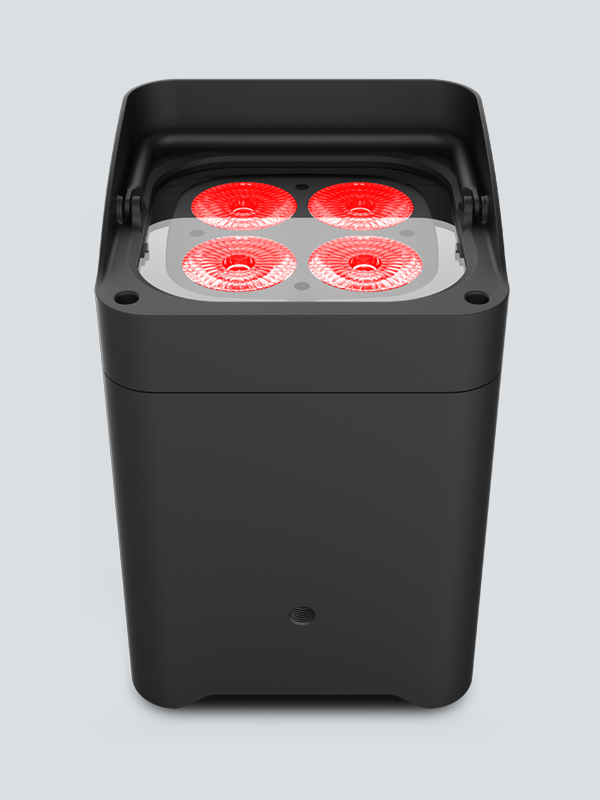

Freedom Flex H4 IP X6

Freedom Flex H4 IP features a removable battery for easy charging and battery swapping making this 100% wireless, battery-operated par with a built-in D-Fi transceiver even more flexible and powerful. The Freedom Flex H4 IP X6 system includes six Freedom Flex H4 IP fixtures and six quick-change battery packs in a rugged road case with built-in charger. Freedom Flex H4 IP has hex-color (RGBAW + UV) LED technology for unlimited color mixing capabilities. The fixture is temporary outdoor-rated and has a robust housing that repels water, snow, dirt, and sand for all-weather applications. Freedom Flex H4 IP has multiple wireless triggering and control options via the FlareCON Air and the FlareCON app and it works in master/slave mode with any Freedom Par. Convenient, wireless non-DMX control is also available with the included IRC-6 remote. An adjustable kickstand helps shine light exactly where it’s needed and the built-in glare shield prevents unwanted light spillage. Customized colors can be created using the easy to read built-in LED display. Achieve smooth LED fading with built-in dimming curves. The compact and lightweight design of the Freedom Flex H4 IP fits easily inside sticks of Trusst.

VIP Rewards Value: 3740 Points



Highlights

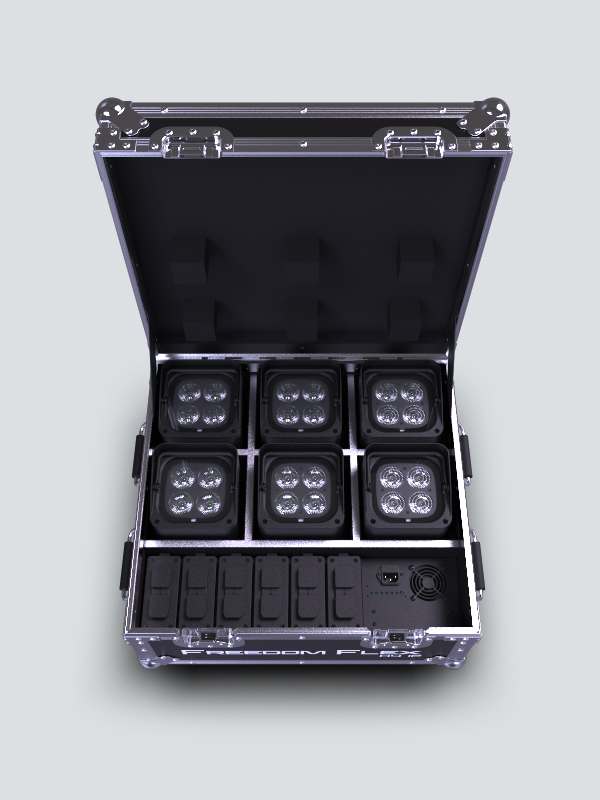

  • 100% TRUE wireless up light system complete with 6 Freedom Flex H4 IP pars, 6 Flex batteries and a charging road case

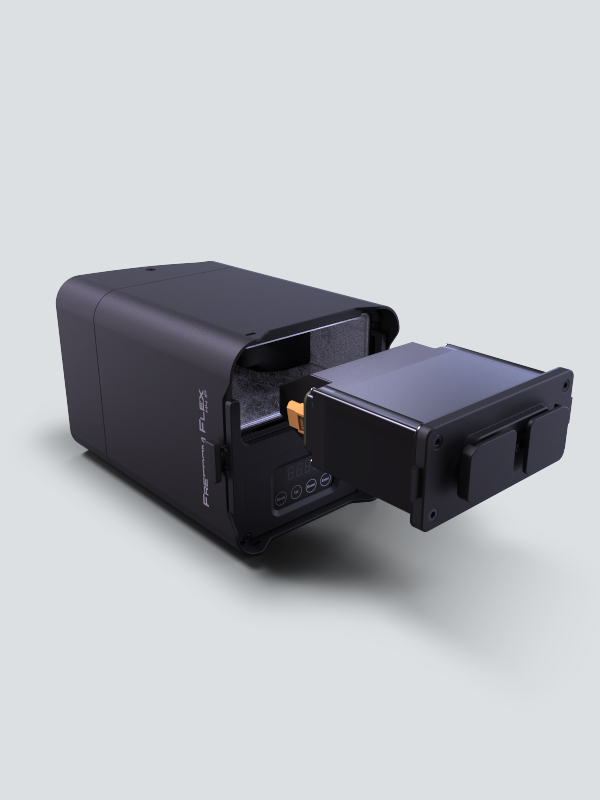

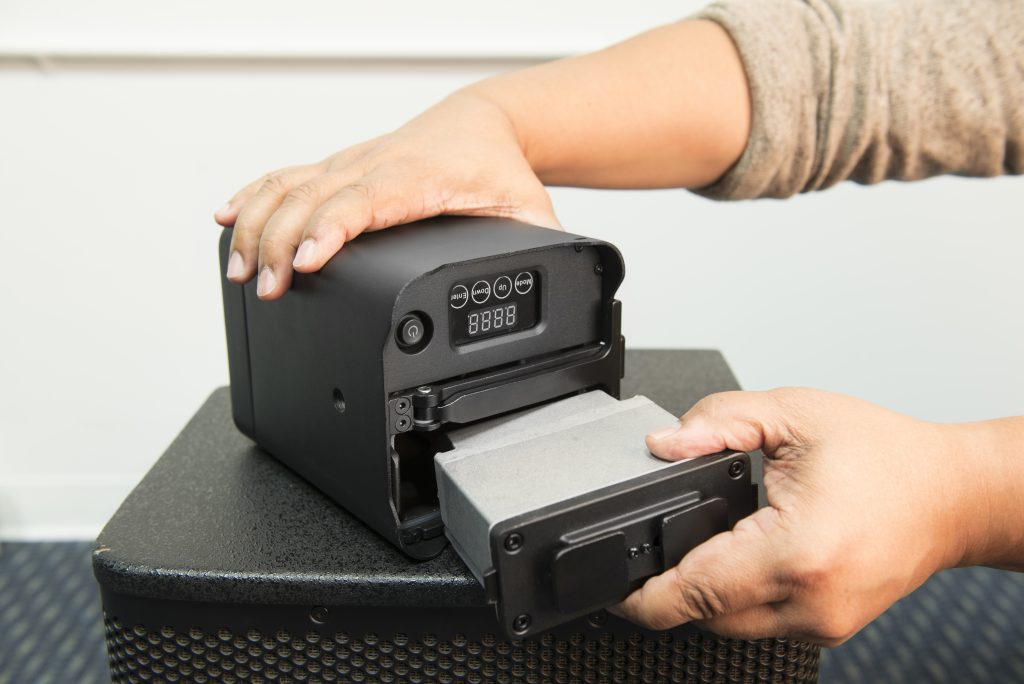

  • Swappable battery packs ensures the fixture is always ready to go

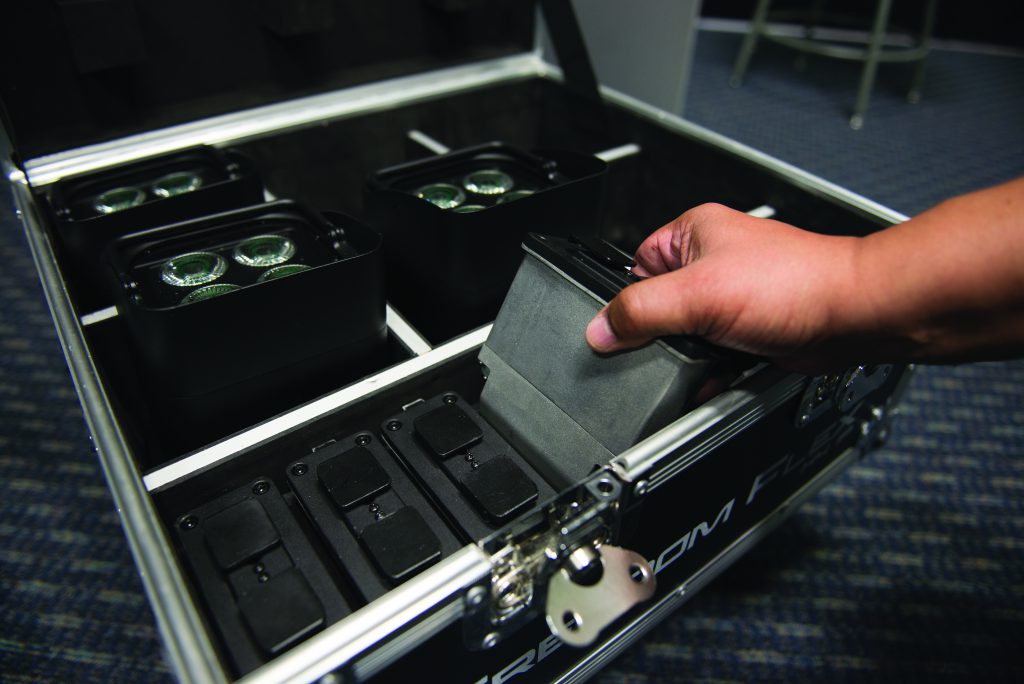

  • Charging road case simultaneously charges and holds 6 additional batteries (sold separately)

  • Temporary outdoor-rated robust housing repels water, snow, dirt, and sand for all-weather applications

  • Multiple wireless triggering and control options via the FlareCON Air and the FlareCON app

  • Works in master/slave with all Freedom Pars

  • Shine light where it is needed using the built-in adjustable kickstand

  • Convenient, wireless non-DMX control using the IRC-6 remote

  • Achieve smooth LED fading with built-in dimming curves

  • Compact and lightweight design easily fits inside sticks of TRUSST

Specifications

  • DMX Channels:6, 8 or 12
  • Max Unobstructed Distance:600 ft (182.88 m)
  • Light Source:4 LEDs (hex-color RGBAW + UV) 10 W, (2 A), 50,000 hours life expectancy.
  • Strobe Rate:0 to 30 Hz
  • PWM Frequency:1.2 KHz
  • Beam Angle:23°
  • Field Angle:34°
  • Recharge Time:6 hours
  • Illuminance:2,163 lux @ 2 m
  • Lumens:1,138
  • IP Rating:IP54
  • Weight:8.8 lb (4 kg)
  • Size:5.43 x 5.43 x 8.11 in (138 x 138 x 206 mm)
  • Approvals:CE, FCC
  • Maximum Run Time (all on): up to 8 hours
  • Maximum Run Time (single color): up to 20 hours
  • Startup Temperature: 32 °F to 122 °F (0 °C to 50 °C)
  • Operating Temperature: -4 °F to 140 °F (-20 °C to 60 °C)
  • Bracket Mounting Hole: M12
  • Road Case Compatible Fixtures: Freedom Flex H4 IP
  • Road Case Wheel Size: 3 in (76.2 mm)
  • Road Case Weight: 96 lb (44 kg)
  • Road Case Size: 21.9 x 20.1 x 10 in (555 x 510 x 255 mm)

What's Included

  • Freedom Flex H4 IP X6
  • x6 Freedom Flex H4 IP
  • x6 Freedom Flex Batteries
  • Power cord
  • IRC-6 Remote
  • Charging Road Case
  • Quick Reference Guide
