Discontinued Since 2023

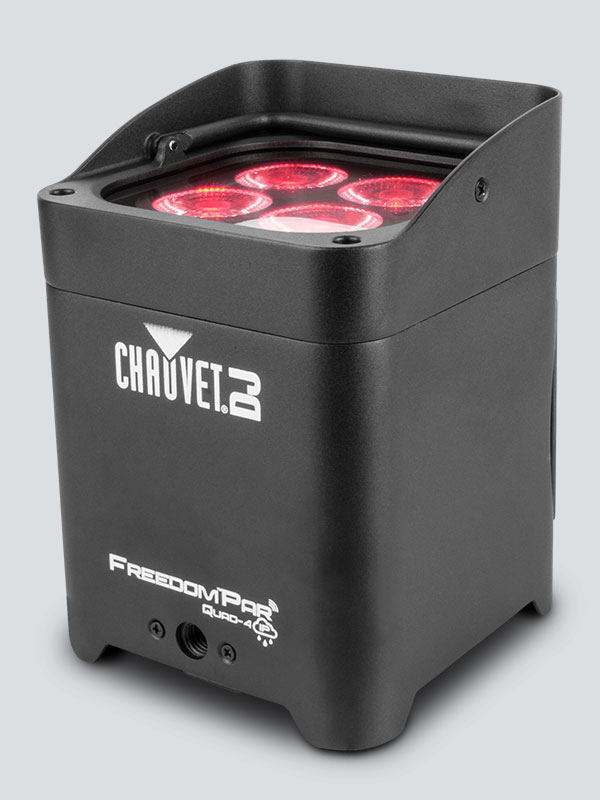

Freedom Par Quad-4 IP

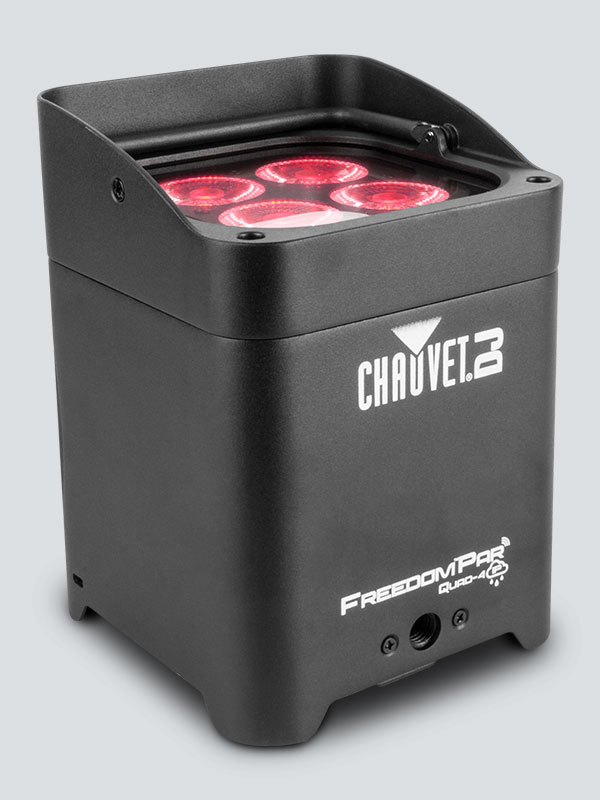

Freedom Par Quad-4 IP is a 100% TRUE wireless, battery-operated, quad-color (RGBA) LED Par with built-in D-Fi transceiver. Its temporary outdoor-rated robust housing repels water, snow, dirt, and sand for all-weather applications and is available in black. Freedom Par Quad-4 IP works in Master/Slave mode with first-generation Freedom Pars and it has multiple wireless triggering and control options via the FlareCON Air and the FlareCON app. Convenient, wireless non-DMX control is available using the IRC-6 remote and customized colors can be created using the built-in LED display. Shine light where it is needed using the built-in adjustable kickstand and prevent light spillage with the built-in glare shield. Achieve smooth LED fading with built-in dimming curves and extend the battery’s lifespan with built-in discharge protection. Safely store and transport your fixtures from gig to gig in the CHS-FR4 carry bag.  White housing not available in U.S and European Markets.

VIP Rewards Value: 500 Points



Highlights

  • Temporary outdoor-rated robust housing repels water, snow, dirt, and sand for all-weather applications

  • 100% TRUE wireless, battery-operated, quad-color (RGBA) LED Par with built-in D-Fi transceiver

  • Multiple wireless triggering and control options via the FlareCON Air and the FlareCON app

  • Works in Master/Slave with first-generation Freedom Pars

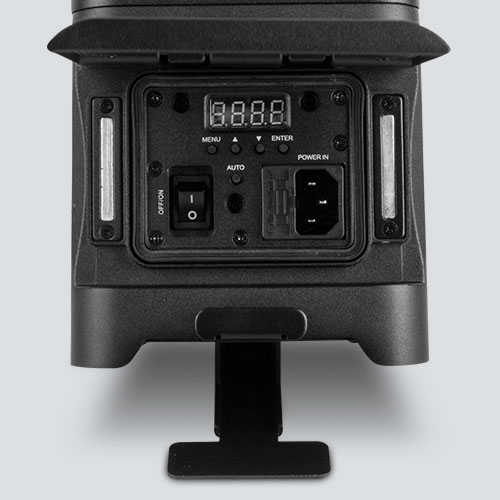

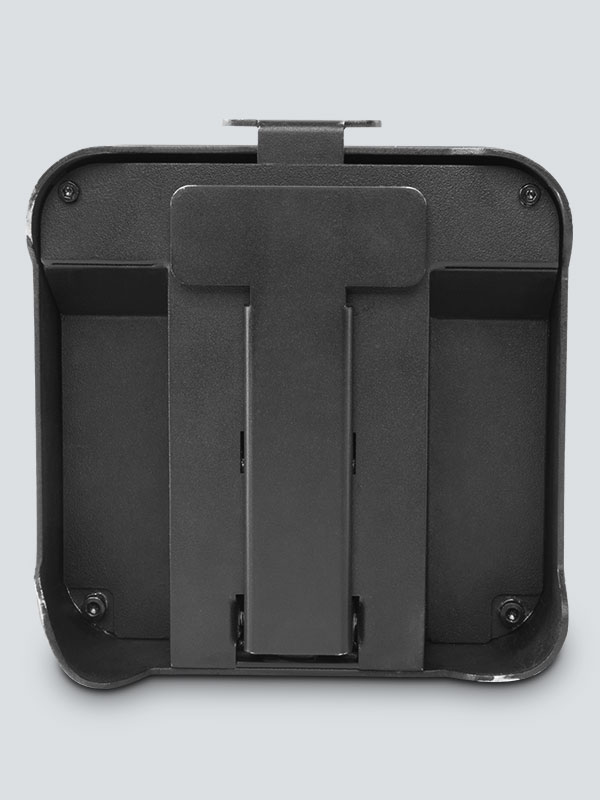

  • Shine light where it is needed using the built-in adjustable kickstand

  • Built-in glare shield prevents light spillage

  • Extend the battery’s lifespan with built-in discharge protection

  • Convenient, wireless non-DMX control using the IRC-6 remote

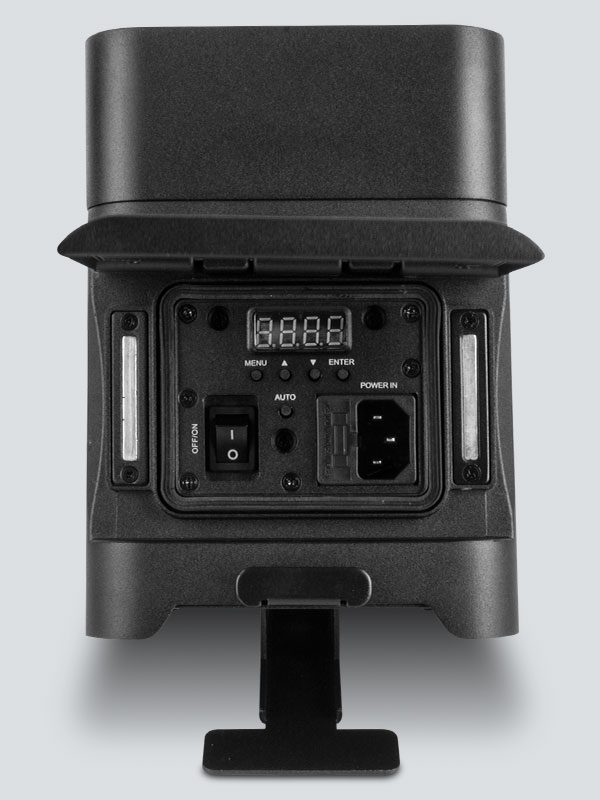

  • Create customized colors using the built-in LED display

  • Achieve smooth LED fading with built-in dimming curves

  • Suitable for every event

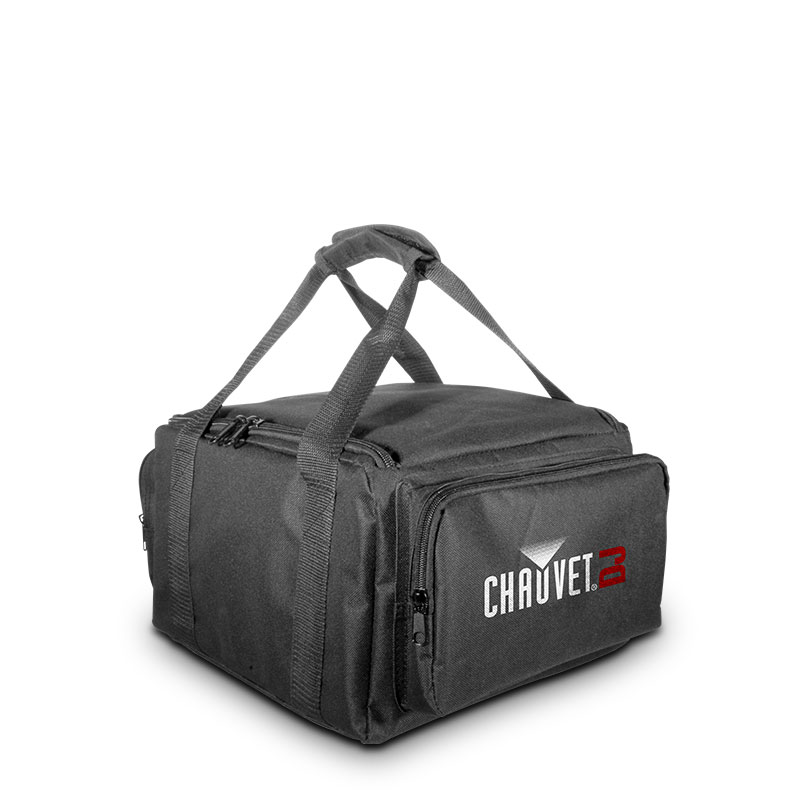

  • Safely store and transport your fixtures from gig to gig in the CHS-FR4 carry bag

  • Compact and lightweight design easily fits inside sticks of TRUSST

Specifications

  • DMX Channels:4, 6 or 10
  • Light Source:4 LEDs (quad-color RGBA) 5 W, (2 A), 50,000 hours life expectancy
  • Strobe Rate:0 to 25 Hz
  • PWM Frequency:1,200 Hz
  • Beam Angle:15°
  • Field Angle:29°
  • Maximum Run Time:(all on): up to 8 hours
    (single color): 20 hours
  • Recharge Time:7 hours
  • Operating Frequency:2.412 to 2.484 GHz
  • Illuminance:2,464 lux @ 2 m
  • IP Rating:IP54
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:43 W, 0.6 A @ 120 V, 60 Hz (73 VA)
    40 W, 0.3 A @ 230 V, 50 Hz (76 VA)
  • Weight:8.0 lb (3.6 kg)
  • Size:5.7 x 5.4 x 7.5 in (145 x 138 x 191 mm)
  • Approvals:CE, FCC

What's Included

  • Freedom Par Quad-4 IP
  • IRC-6
  • Power Cord
  • Quick Reference Guide
  • Warranty Card
  • Stickers
