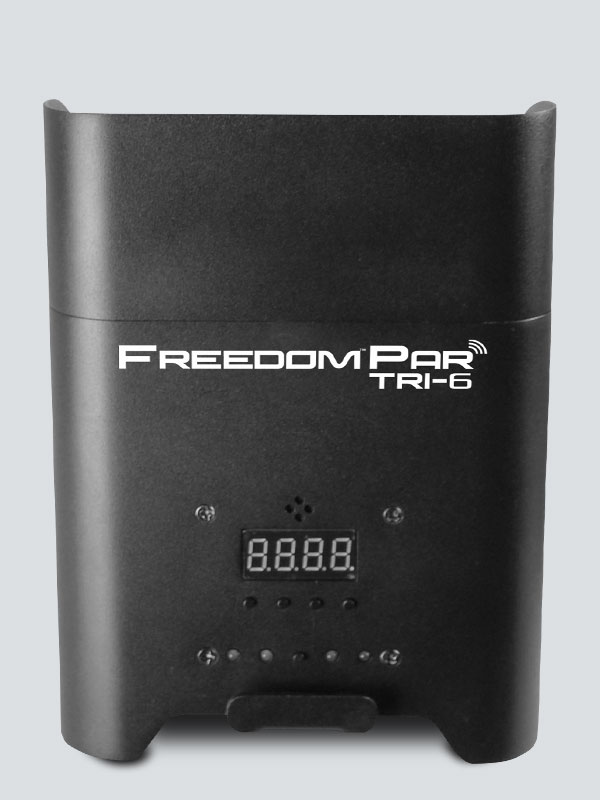

Freedom Par Tri-6

Freedom Par Tri-6 is powerful, bright, and truly 100% wireless with a rechargeable battery and a built-in D-Fi transceiver. Freedom Par Tri-6 has 18 watts of RGB color mixing and can be operated with the control panel, the included CHAUVET® DJ IRC-6 remote, or from any mobile phone or tablet running the FlareCON mobile app. Freedom Par Tri-6 fits perfectly inside TRUSST® and all other 12” box truss, and travels safely and stylishly in the CHAUVET® DJ CHS-FR4 VIP Gear Bag or using the Freedom Charge 9 road case.

Highlights

  • 100% TRUE wireless, battery-operated, tri-color LED Par with built-in D-Fi™ transceiver

  • Multiple wireless triggering and control options via the FlareCON™ Air and the FlareCON™ app

  • Works in Master/Slave with first-generation Freedom™ Pars

  • Shine light where it is needed using the built-in adjustable kickstand

  • Built-in glare shield prevents light spillage

  • Extend the battery’s lifespan with built-in discharge protection

  • Convenient, wireless non-DMX control using the IRC-6 remote

  • Create customized colors using the built-in LED display

  • Achieve smooth LED fading with built-in dimming curves

  • Safely store and transport your fixtures from gig to gig in the CHS-FR4 carry bag

  • Compact and lightweight design easily fits inside sticks of TRUSST®

Specifications

  • DMX Channels: 3, 4, 5, or 9
  • DMX Connectors: 3-pin XLR
  • Light Source: 6 LEDs (tri-color RGB) 3 W (600 mA), 50,000 hours life expectancy
  • Strobe Rate: 0 to 17 Hz
  • PWM Frequency: 1,200 Hz
  • Beam Angle: 15°
  • Field Angle: 29°
  • Maximum Run Time: (all on): up to 8 hours
    (single color): 20 hours
  • Recharge Time: 6 hours
  • Operating Frequency: 2.412 to 2.484 GHz
  • Illuminance: 1,938 lux @ 2 m
  • Power Linking: 17 units @ 120 V; 30 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 32 W, 0.5 A @ 120 V, 60 Hz
    31 W, 0.3 A @ 230 V, 50 Hz
  • Weight: 5.8 lb (2.6 kg)
  • Size: 5.4 x 5.7 x 7.2 in (138 x 145 x 184 mm)
  • Approvals: CE, FCC

What's Included

  • Freedom Par Tri-6
  • IRC-6
  • Power cord
  • Quick Reference Guide
  • Warranty Card
  • Stickers
