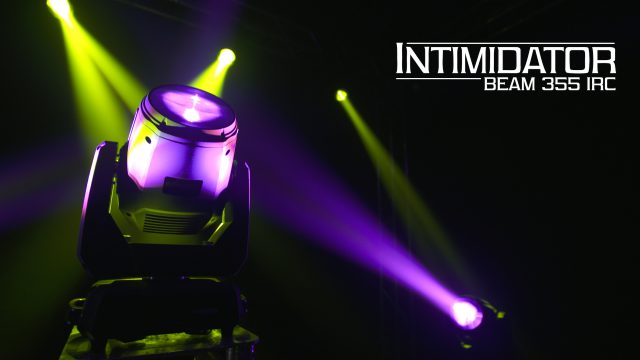

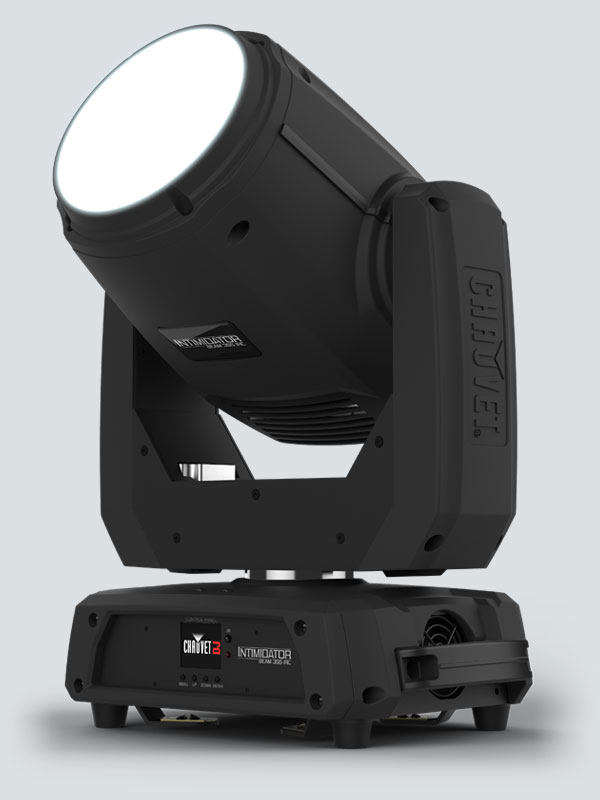

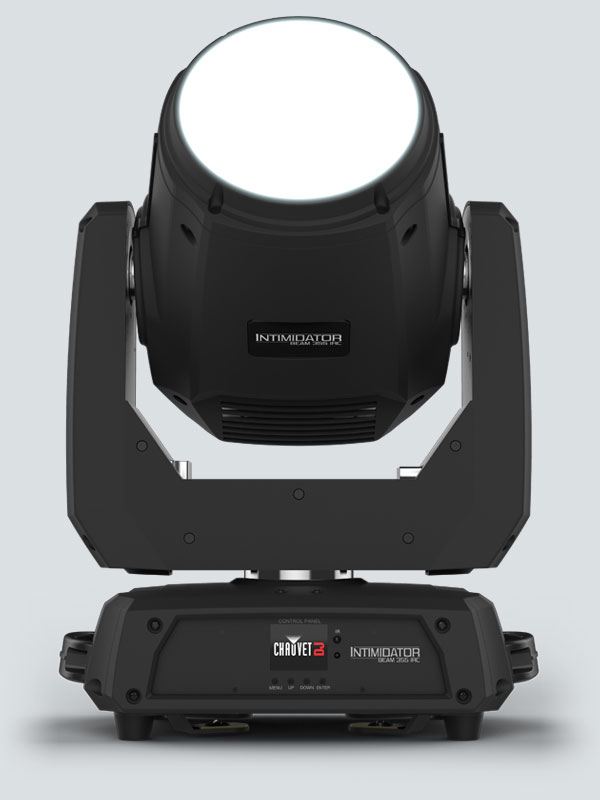

Intimidator Beam 355 IRC

Intimidator Beam 355 IRC is a powerful and feature-packed moving head beam fitted with a 100W LED. Easily generate complex looks using the fixed gobo wheel that includes a unique animation effect to create additional dramatic looks. A rotating 3-facet prism splits the beam to cover larger areas. The motorized frost filter converts the beam to a wash. The onboard full-color display is IRC-6 compatible and features totem mode and onboard memory for storing a scene. Intimidator Beam 355 IRC has powerCON®-compatible power input/output connections for power linking.

Highlights

  • Feature-packed moving head beam fitted with a 100W LED

  • Motorized frost filter converts the beam to a wash

  • Easily generate complex looks using the fixed gobo wheel plus animation effect

  • Split the beam and cover larger areas with the rotating 3-facet prism

  • Full-color display with IRC-6 compatibility, totem mode and onboard memory for storing a scene

  • Unique ¼-turn hanging bracket allows for single or dual clamp mounting options

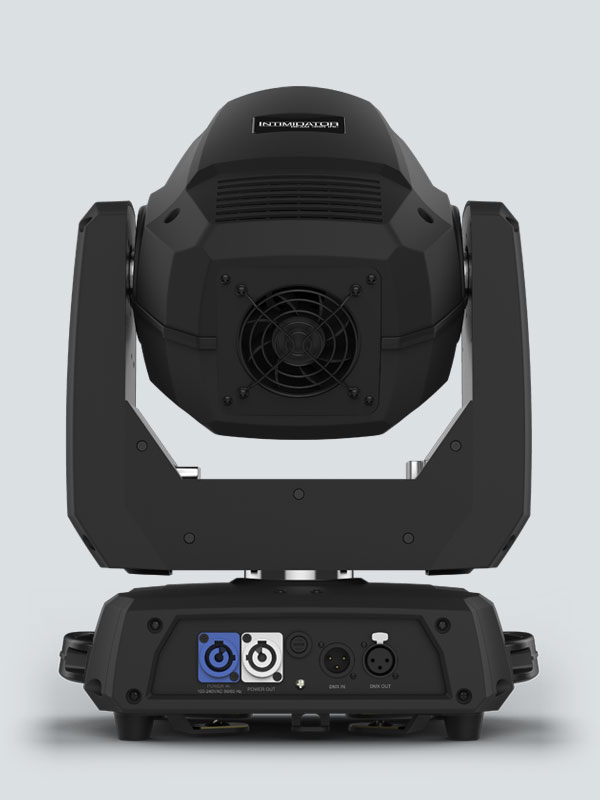

  • powerCON®-compatible power input/output connections for power linking

  • Fits best in the INTIMROADCASES35X flight case

Specifications

  • DMX Channels: 8 or 14
  • DMX Connectors: 3-pin XLR
  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: 180°, 360°, 540° pan/270°, 180°, 90° tilt
  • Colors: 8 + white, split colors, continuous scroll at variable speeds
  • Gobos: 5 + open, animation effect, continuous scroll at variable speeds
  • Light Source: 1 LED (white) 100 W, (27 A), 50,000 hours life expectancy
  • Strobe Rate: 0 to 20 Hz
  • PWM Frequency: 1.8 kHz [flicker free]
  • Beam Angle:
  • Illuminance: 262,800 lux @ 2 m
  • Power Linking: 5 units @ 120 V; 9 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 163 W, 1.5 A @ 120 V, 60 Hz
    157 W, 0.8 A @ 230 V, 50 Hz
  • Weight: 25.4 lb (11.6 kg)
  • Size: 12.7 x 8.7 x 18.9 in (322 x 220 x 480 mm)
  • Approvals: CE, MET
  • Optional Controllers: IRC - 6

What's Included

  • Intimidator Beam 355 IRC
  • Intimidator Beam 355 IRC
  • Power cord
  • Hanging bracket
  • Warranty card
  • Quick Reference Guide
