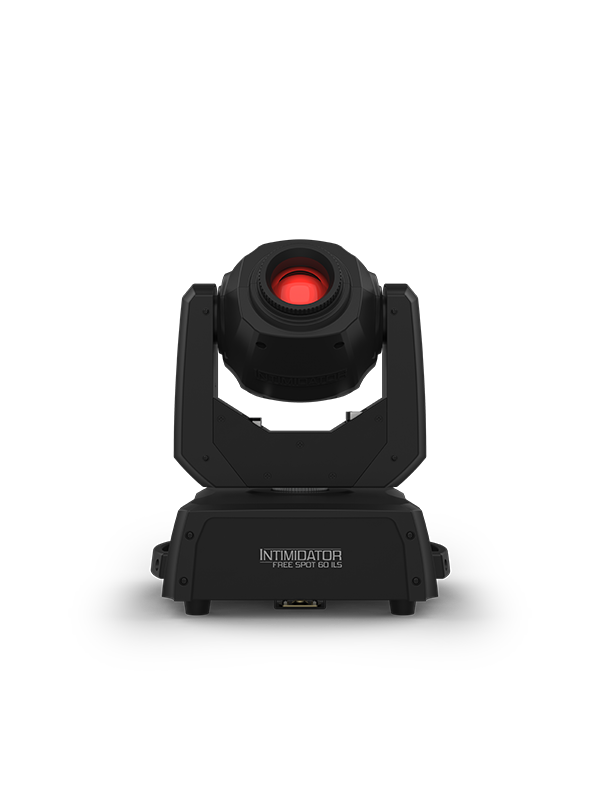

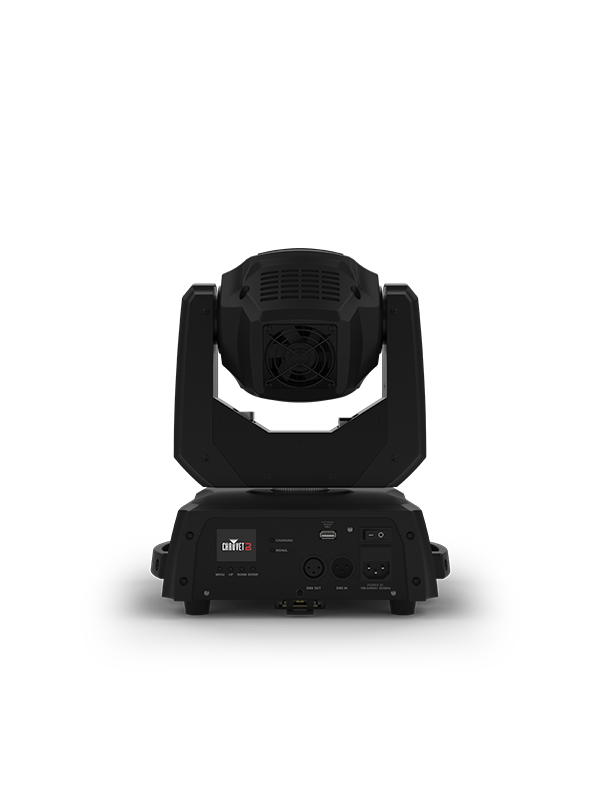

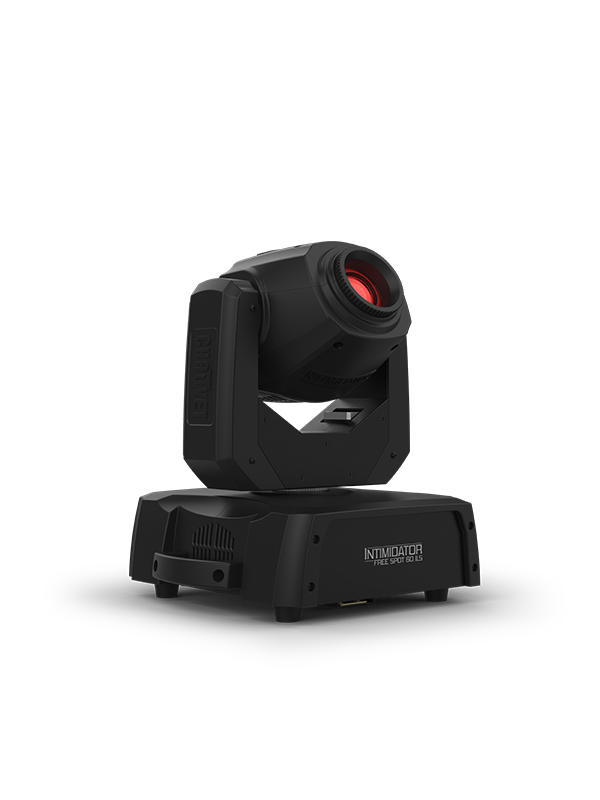

Intimidator Free Spot 60 ILS

This revolutionary powerhouse is a 100% TRUE wireless battery-powered mover with built-in D-FI transceiver and ILS compatibility for use in the ILS ecosystem. A built-in RF receiver is on board for wireless control using the optional RFC or RFC-XL remotes and adjustable run times ensure the fixture will last the length of almost any event. Intimidator Free Spot 60 ILS is packed with robust features like a new home position for the moving head that allows for smoother programming by preventing a whip around motion when looks are triggered. Motorized focus means you can project crisp gobos from nearly any distance and a 3-facet prism splits the beam and covers a larger area. Extend the fixture’s lifespan with the onboard charge and discharge protection circuitry and beams always remain on the dance floor using the built-in, innovative Totem mode. Intimidator Free Spot 60 ILS. Part Intimidator. Part Freedom. All lighting power.

Highlights

  • 100% TRUE wireless, battery-operated moving head spot with built-in D-FI transceiver

  • Adjustable run times ensure the fixture will last the length of the event

  • Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes

  • ILS compatibility for use in the ILS ecosystem

  • Project crisp gobos from nearly any distance with the motorized focus

  • New home position allows for smoother programming

  • 3-facet prism splits the beam and covers a larger area

  • Beams always remain on the dance floor using the built-in, innovative Totem mode

  • Extend the fixture’s lifespan with the onboard charge and discharge protection circuitry

  • Fits Best in the CHS-50 Carry Bag

Specifications

  • DMX Channels:8, 10, or 14
  • DMX Connectors: 3-pin XLR
  • Max Unobstructed Distance:600 ft (183 m)
  • Pan and Tilt:540°/240°
  • Pan and Tilt Ranges:180°, 360°, 540° pan/90°, 180°, 240° tilt
  • Colors:8 + open, split colors, continuous scroll at variable speeds
  • Gobos:7 + open (6 metal + 1 glass), rotating, interchangeable, slot-n-lock, continuous scroll at variable speeds
  • Light Source:1 LED (cool white) 70 W, (3.3 A), 50,000 hours life expectancy
  • Strobe Rate:0 to 23 Hz
  • Recharge Time:6.75 hours
  • Operating Frequency:2.412 to 2.484 GHz
  • Illuminance:
    16,932 lux @ 2 m
    9,424lux @ 2 m
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:
    110 W, 0.9 A @ 120 V, 60 Hz
    107 W, 0.5 A @ 230 V, 50 Hz
  • Gobo Size:24 mm outside, 20 mm image, 1.1 mm max thickness
  • Weight:22 lb (9.9 kg)
  • Size:9.7 x 10.2 x 11.1 in (246 x 258 x 283 mm)
  • Approvals:CE, UKCA , RoHS , FCC
  • Prism: 3-facet round static
  • Zoom Range (manual): 13° to 19 °
  • Run Time (adjustable): 4, 6, or 8 hrs
  • Recharge Time: 6.75 hours
  • Color Temperature: 15,000 K
  • Bracket Mounting Hole: M12
  • Optional Controllers: RFC, RFC-XL

What's Included

  • Intimidator Free Spot 60 ILS
  • Intimidator Free Spot 60 ILS
  • Power cord
  • Omega bracket
  • Quick Reference Guide
