Discontinued Since 2017

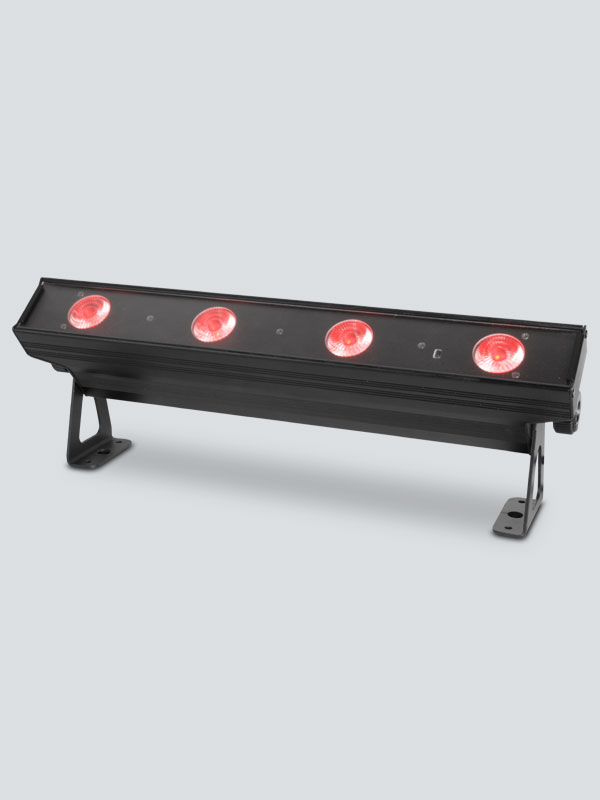

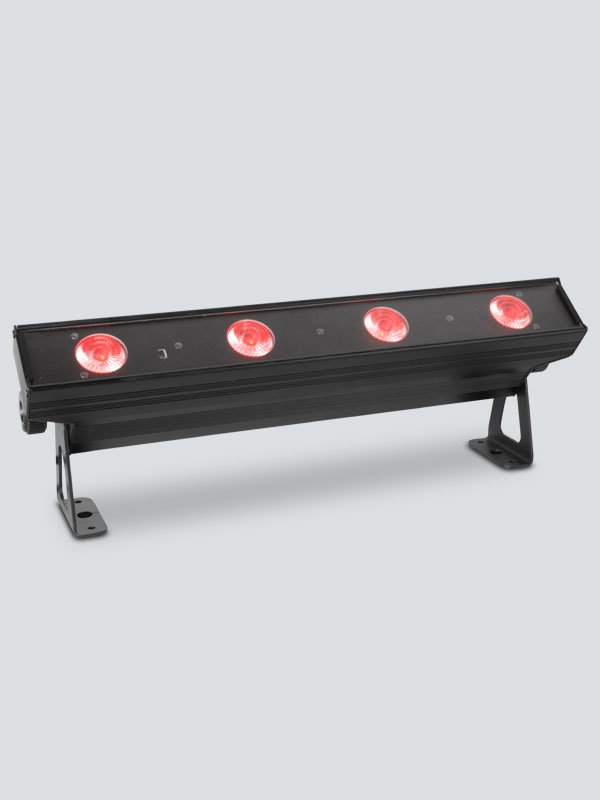

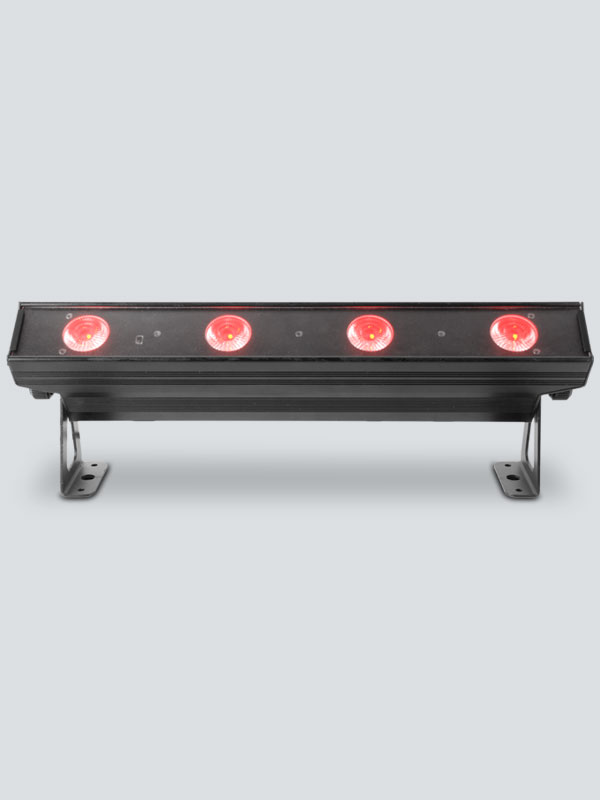

Freedom Strip Hex-4

Freedom Strip Hex-4 is a 100% wireless effect that makes a perfect addition to any uplighting tool chest. Featuring two zones of control, delivers amazing chase effects. Plus, its RGBWA+UV LEDs create eyepopping multi-color washes. Its built-in automated and sound activated programs put a variety of creative options at your fingertips. The Freedom Strip Hex-4 comes with an IRC-6 remote.

Highlights

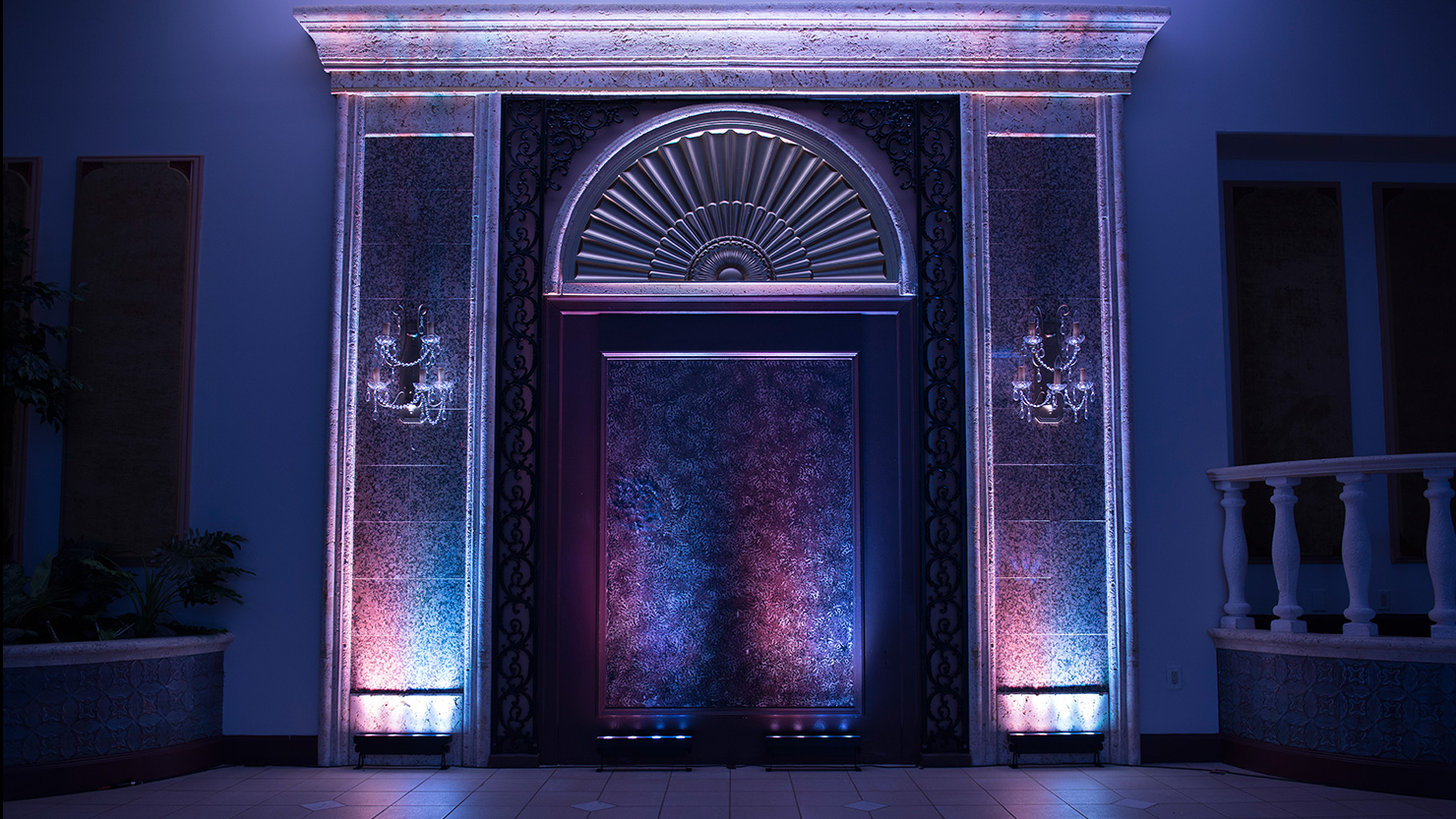

  • 100% wireless and compact linear wash light designed for uplighting or great eye-candy effects

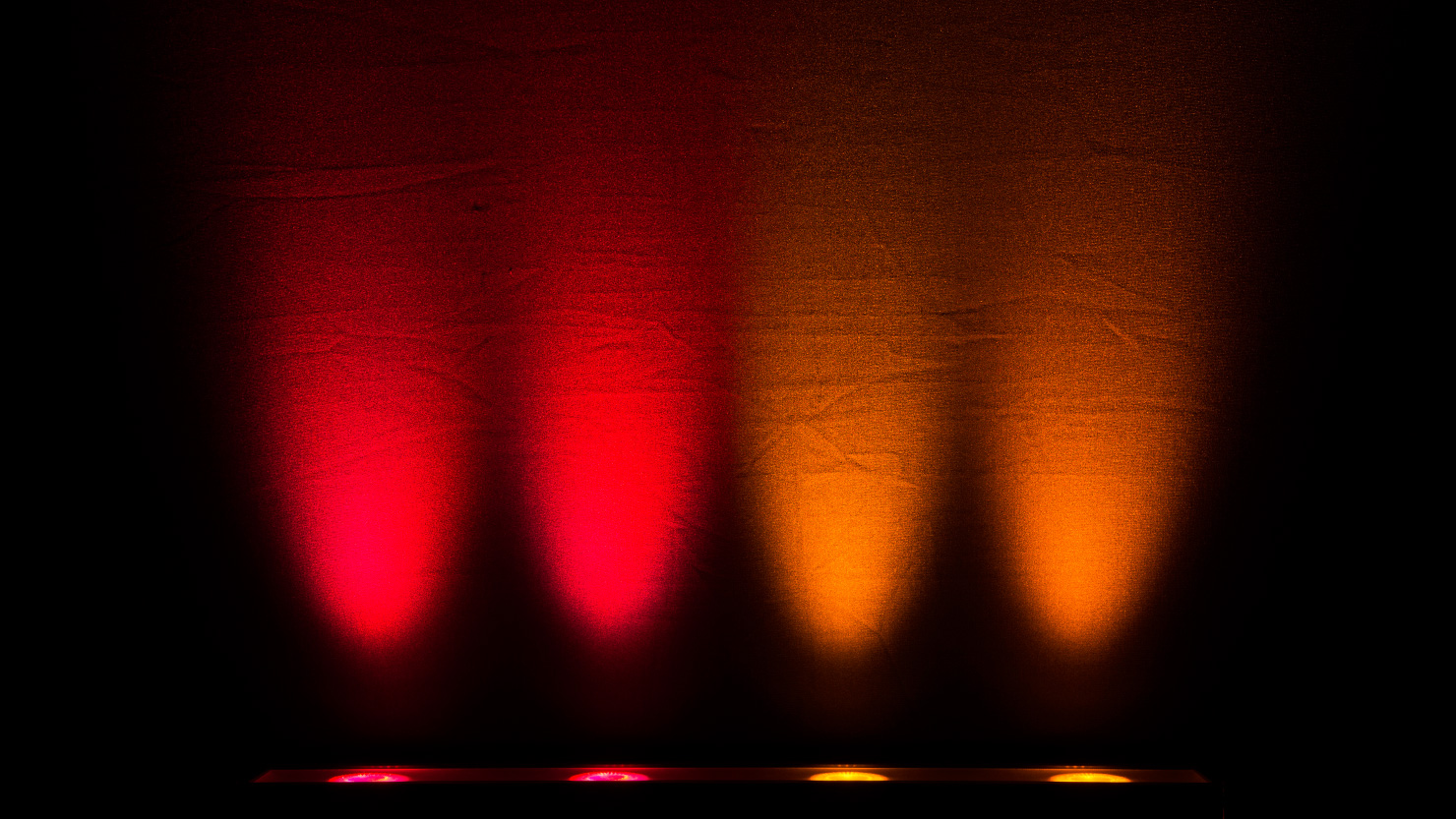

  • 2 zones of control allows multicolor washes and dazzling chase effects

  • Functions as a D-FI™ transceiver allowing wireless communication to or from any D-FI™ compatible fixture

  • Wireless control of sectional eye-catching automated and sound-activated chase effects via wireless DMX or IRC-6 or simple Master/Slave mode

  • Multiple mounting options using the included L-brackets

  • Fits best in the CHS-60 VIP Gear Bag

Specifications

  • DMX Channels: 6, 8, 12 or 18

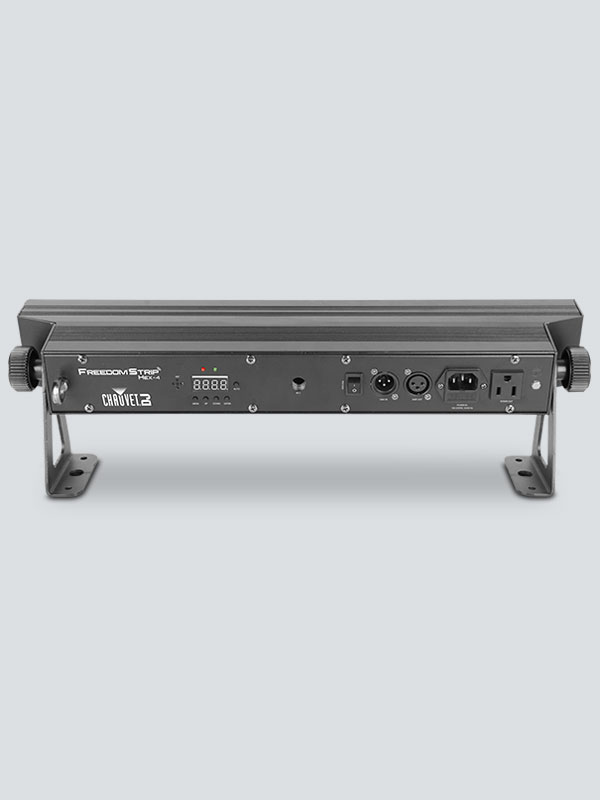

  • DMX Connectors: 3-pin XLR
  • Light Source: 4 LEDs (hex-color RGBAW+UV) 10 W (2 A), 50,000 hours life expectancy
  • Strobe Rate: 0 to 25 Hz
  • PWM Frequency: 1,200 Hz
  • Beam Angle: 25°
  • Field Angle: 42°
  • Operating Frequency: 2.412 to 2.484 GHz
  • Illuminance: 1,217 lux @ 2 m
  • Power Linking: 13 units @ 120 V; 23 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)V
  • Power and Current: 45 W, 0.6 A @ 120 V, 60 Hz
    42 W, 0.4 A @ 230 V, 50 Hz
  • Weight: 7.4 lb (3.4 kg)
  • Size: 19.7 x 3.3 x 6.8 in (500 x 82 x 173 mm)
  • Approvals: CE

What's Included

  • Freedom Strip Hex-4
  • Power Cord
  • L-brackets
  • IRC-6
  • Warranty Card
  • Quick Reference Guide
