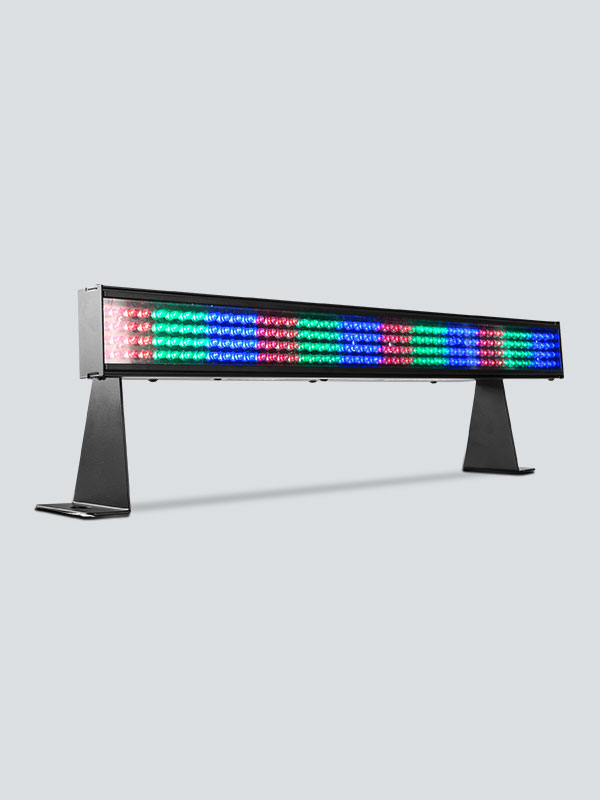

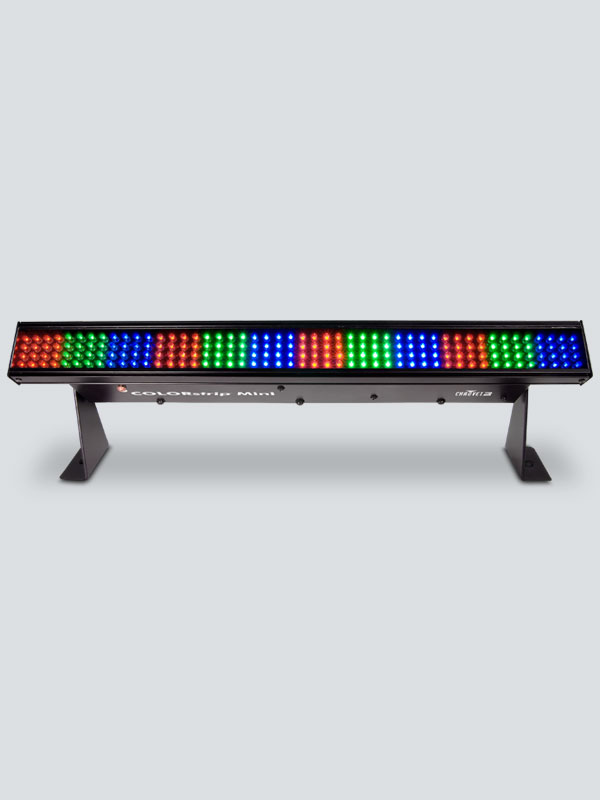

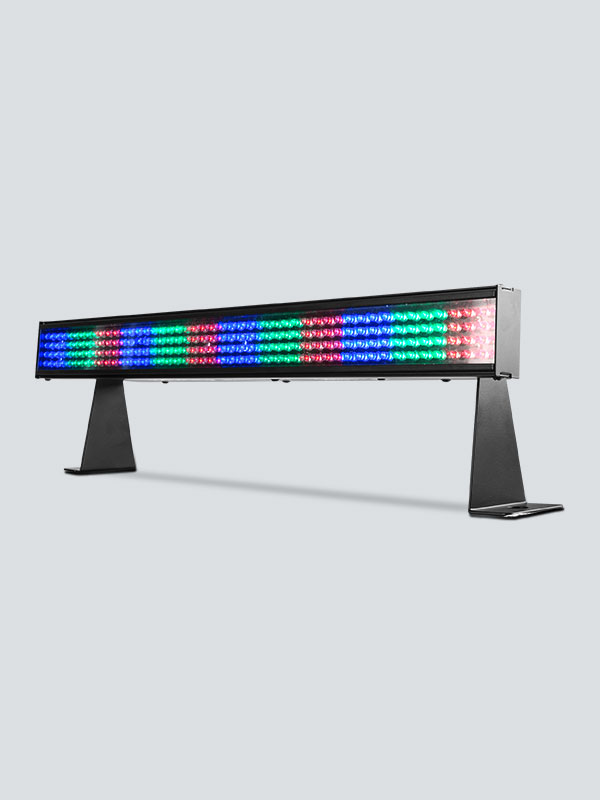

COLORstrip Mini

The COLORstrip Mini is a 19-inch long four-channel DMX-512 controlled LED linear wash light. Static colors and RGB color mixing can be done with or without a DMX controller. Blackout, static, dimmer and strobe are included.

Additional features include built-in automated and sound-activated programs via master/slave or DMX. Up to 31 units can be linked master/slave for a color-changing runway effect.

Highlights

  • Compact, linear wash light designed for uplighting applications or great eye-candy effects

  • Increase effects by power linking multiple units together to create runway chases

  • Create coordinated light shows by linking other COLORstrip™, and COLORstrip™ Mini fixtures in Master/Slave mode

  • Convenient, wireless non-DMX control using the optional IRC-6 remote

  • Save time running cables and extension cords by power linking multiple units

  • Fits best in the CHS-60 VIP Gear Bag

Specifications

  • DMX Channels: 4
  • DMX Connectors: 3-pin XLR
  • Light Source: 192 LEDs (64 red, 64 green, 64 blue) 0.25 W (20 mA), 100,000 hours life expectancy
  • Beam Angle: 37° x 33°
  • Illuminance: 1,192 lux @ 2 m
  • Power Linking: 20 units @ 120 V; 38 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 38 W, 0.3 A @ 120 V, 60 Hz
    40 W, 0.2 A @ 230 V, 50 Hz
  • Weight: 3.3 lb (1.5 kg)
  • Dimensions: 19 x 2.1 x 6.1 in (482 x 52 x 155 mm)
  • Approvals: CE, MET
  • Optional Controllers: LED-FS1, IRC-6

What's Included

  • COLORstrip Mini
  • Power cord
  • Hanging bracket with mounting hardware
  • Warranty card
  • Quick Reference Guide
