Discontinued Since 2019

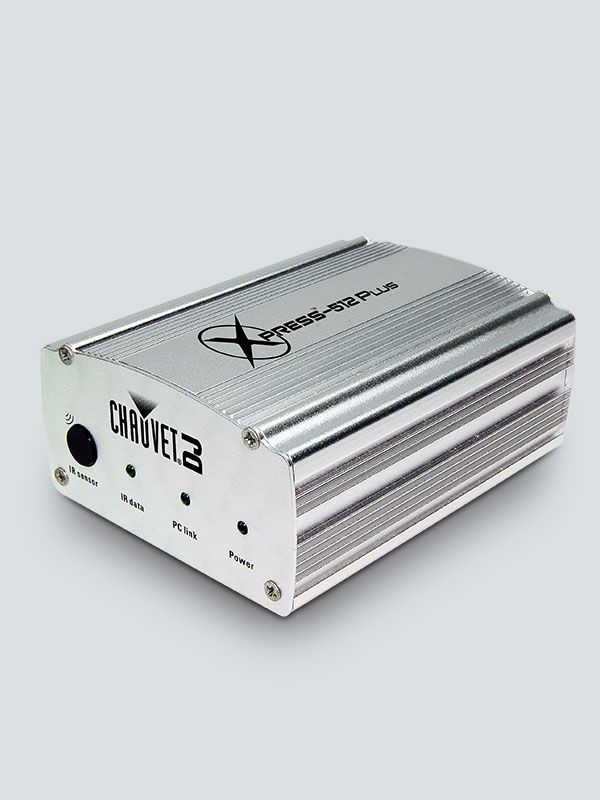

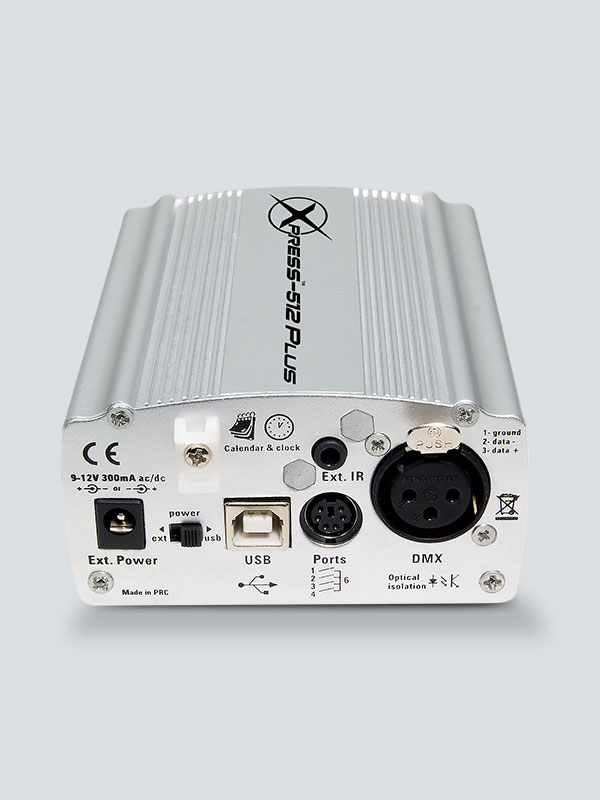

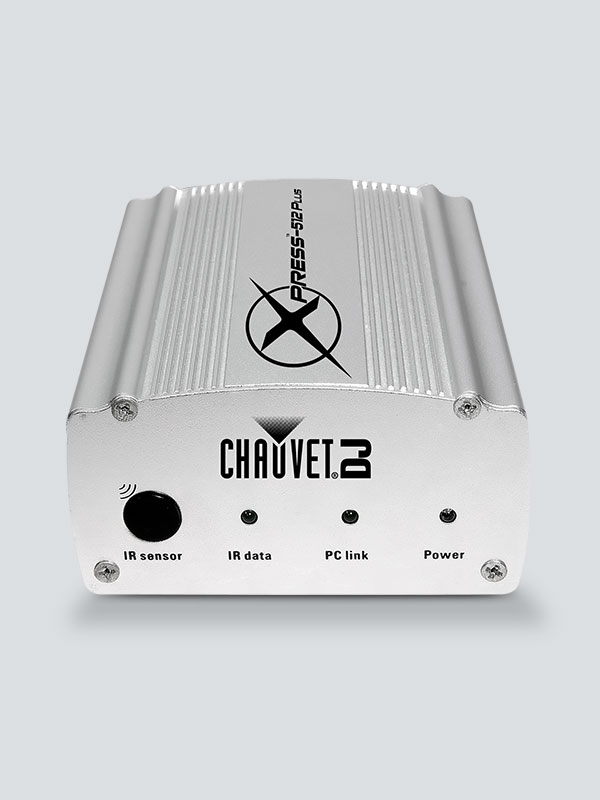

Xpress 512 PLUS

Xpress 512 Plus brings you the same capabilities of the Xpress 512, plus an external triggering that is available via a mini-DIN connection or an optional infrared remote. An internal calendar can also trigger playback at a specific time without a computer.

VIP Rewards Value: 930 Points


  • Top of the line interface for the ShowXpress software

  • Transmits 1 DMX universe, or control multiple universes by connecting multiple units

  • Access external triggering using a mini-DIN connector to control up to 4 scenes remotely

  • Optional infrared remote allows you to control up to 18 scenes remotely

  • Easily connect the infrared extension using the rear connection

  • Dual power options include USB or AC/DC

  • Built-in electrical isolation for DMX line

  • Playback up to 18 shows with speed control and layering without using a computer

  • Create unlimited shows when operating with a computer

  • Trigger playback at a specific date and time, without a computer, using the internal calendar

  • Compatible with Windows® and Mac OS X systems

  • Lock your cable into place using the Neutrik® DMX connector


  • DMX Connectors: 3-pin XLR
  • Input Voltage: 5 VDC, USB; 12 VDC, 300 mA external power supply (not included)
  • Weight: 0.6 lb (0.3 kg)
  • Size: 4.7 x 3.5 x 1.8 in (119 x 89 x 47 mm)
  • Approvals: CE

What's Included

  • Xpress 512 PLUS
  • Warranty card
