Discontinued Since 2016

SlimPAR QUAD 3 IRC

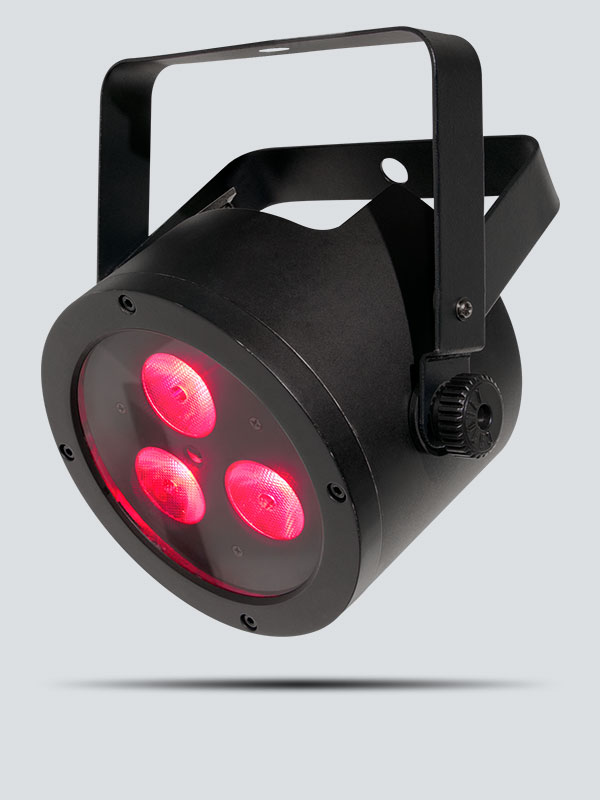

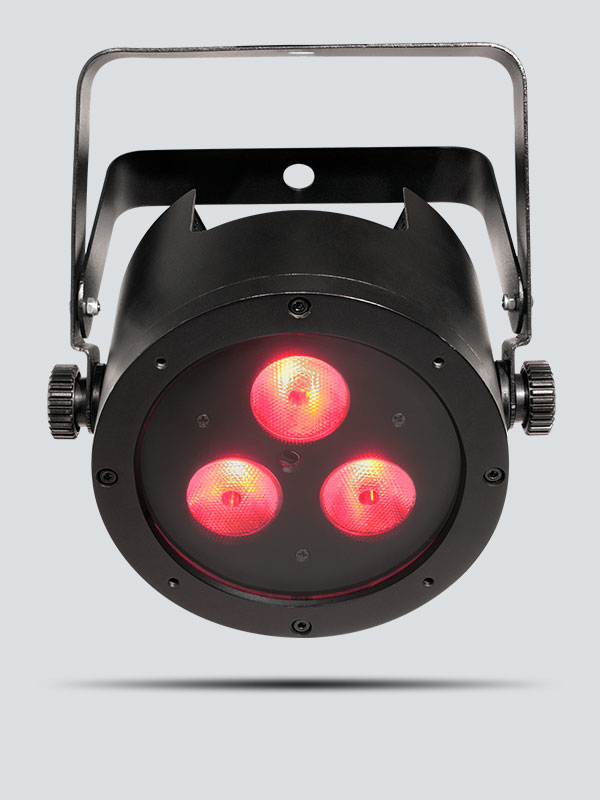

SlimPAR QUAD 3 IRC is a low-profile, quad-color (RGBA) LED PAR with built-in infrared remote control capability. Punchy amber LEDs allow you to generate a broad spectrum of colors and achieve natural looking color temperatures, while the optional IRC-6 remote control provides an easy point-and-shoot operation of static colors and automated programs. The SlimPAR QUAD 3 IRC is perfect for quiet applications and allows you to create any color without DMX by using the built-in digital display. Save time running cables and extension cords by power linking multiple units or create coordinated light shows by linking other quad-color LED SlimPAR fixtures in Master/Slave mode. Its compact and lightweight design easily fits inside sticks of TRUSST®. SlimPAR QUAD 3 IRC fits best in the optional CHS-30 VIP Gear Bag for secure and convenient transportation.

Highlights

  • Low-profile, quad-color (RGBA) LED PAR with built-in infrared remote control capability

  • Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs

  • Easy point-and-shoot operation of static colors and automated programs

  • Create any color without DMX by using the built-in digital display

  • Save time running cables and extension cords by power linking multiple units

  • Create coordinated light shows by linking other quad-color LED SlimPAR™ fixtures in Master/Slave mode

  • Perfect for quiet applications due to silent operation and no moving parts

  • Safe and secure transport using the optional CHS-30 VIP Gear Bag

  • Compact and lightweight to easily fit inside sticks of TRUSST®

Specifications

  • DMX Channels: 4 or 9
  • DMX Connectors: 3-pin XLR
  • Light Source: 3 LEDs (quad-color RGBA) 5 W (2 A), 50,000 hours life expectancy
  • Strobe Rate: 0 to 17 Hz
  • PWM Frequency: 1,200 Hz
  • Beam Angle: 20°
  • Field Angle: 34°
  • Illuminance: 1,065 lux @ 2 m
  • Power Linking: 21 units @ 120 V; 39 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 44 W, 0.4 A @ 120 V, 60 Hz
    46 W, 0.2 A @ 230 V, 50 Hz
  • Weight: 3.6 lb (1.7 kg)
  • Size: 8.3 x 7.4 x 4.3 in (210 x 187 x 108 mm)
  • Approvals: CE
  • Optional Controllers: IRC-6

What's Included

  • SlimPAR QUAD 3 IRC
  • Power cord
  • Hanging bracket with mounting hardware
  • Warranty card
  • Quick Reference Guide
