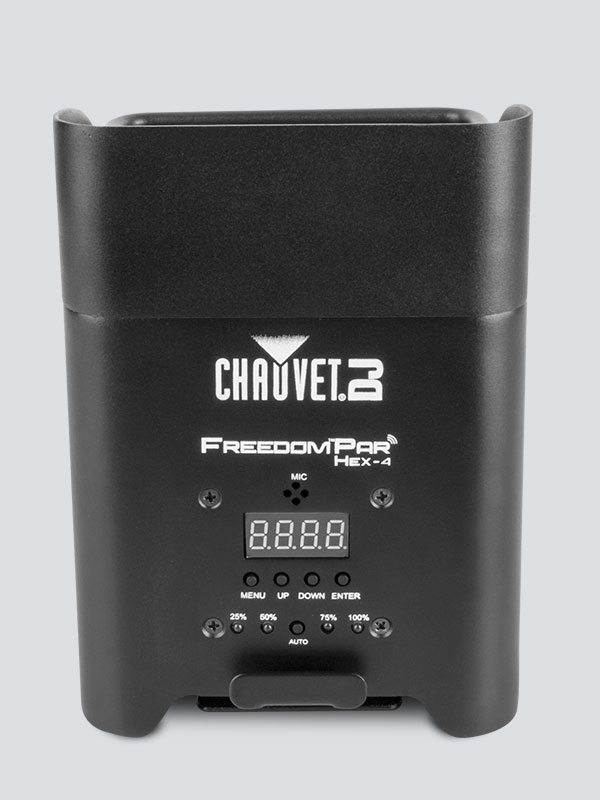

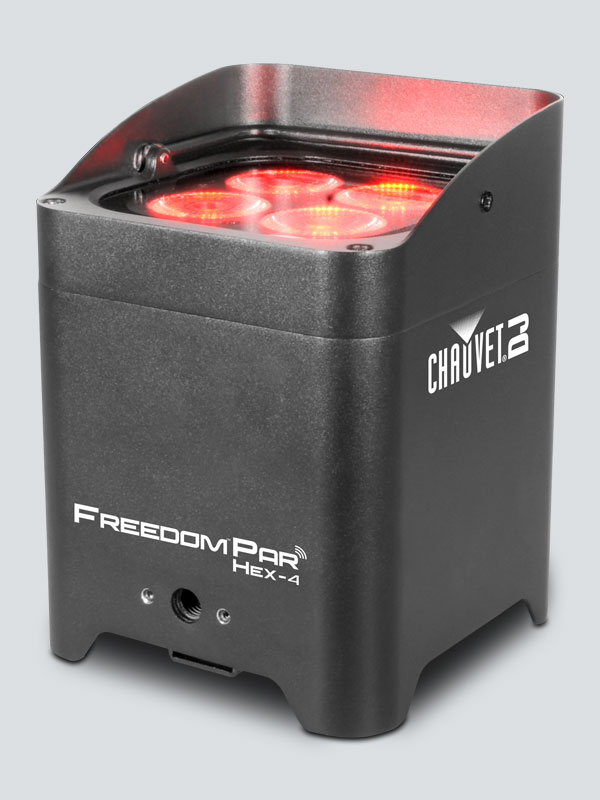

Freedom Par Hex-4

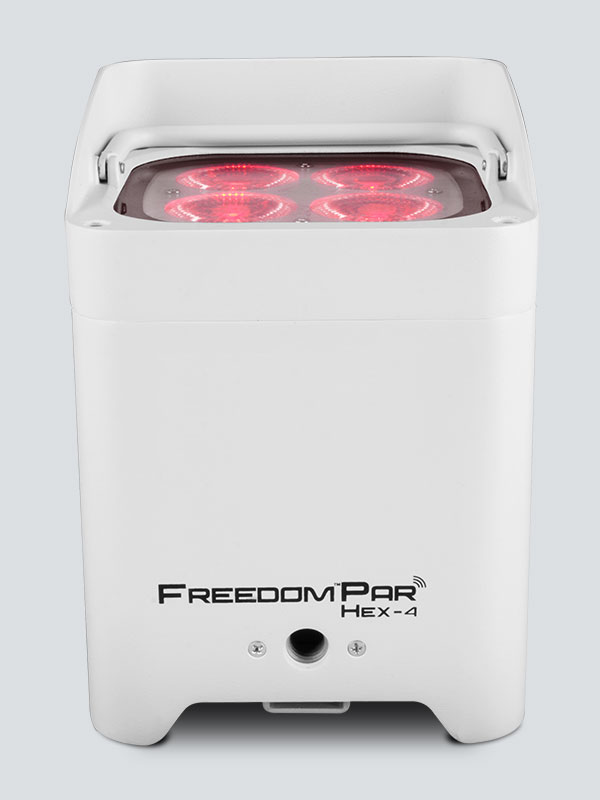

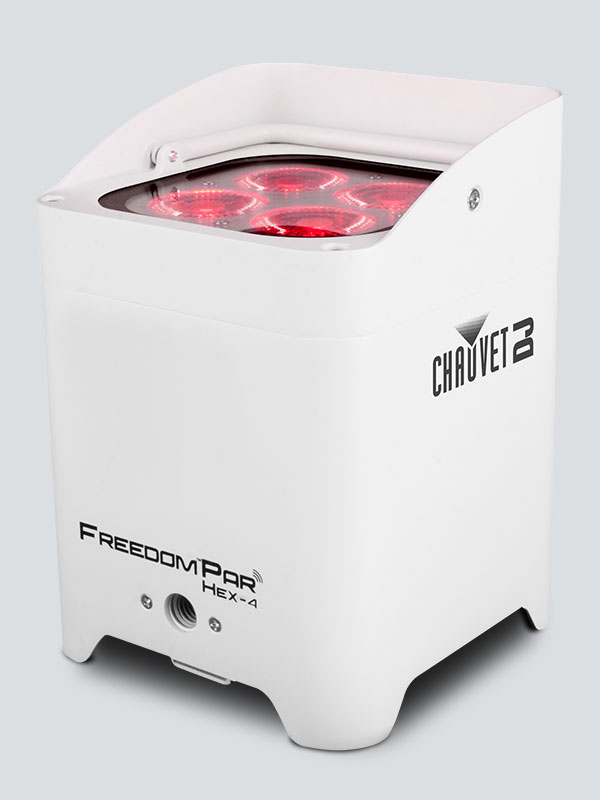

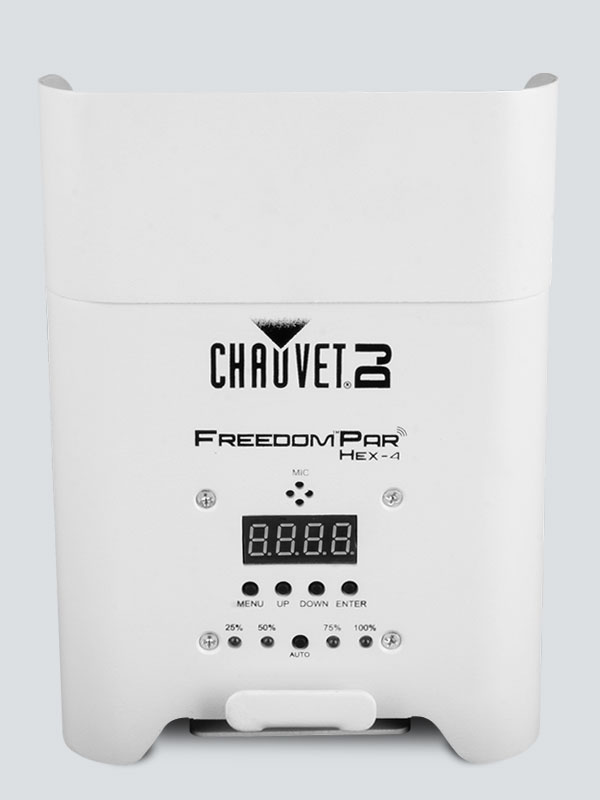

The Freedom Par Hex-4 is the most colorful model in the next generation of the Freedom Par family. It has four 10-watt RGBAW+UV LEDs for that extra punch and the special effects that white and UV add to color mixing. The Freedom Par Hex-4 has a special limiter option for extending battery life so that when you use more than 4 colors you know you’ll get a good long show! The Freedom Par Hex-4 comes in black or white housing so it fits into any décor and travels safely while charging using the Freedom Charge 9 road case.

Highlights

  • 100% TRUE wireless, battery-operated, hex-color (RGBAW+UV) LED Par with built-in D-Fi™ transceiver

  • Multiple wireless triggering and control options via the FlareCON™ Air and the FlareCON™ app

  • Works in Master/Slave with first-generation Freedom™ Pars

  • Shine light where it is needed using the built-in adjustable kickstand

  • Built-in glare shield prevents light spillage

  • Extend the battery’s lifespan with built-in discharge protection

  • Convenient, wireless non-DMX control using the IRC-6 remote

  • Create customized colors using the built-in LED display

  • Achieve smooth LED fading with built-in dimming curves

  • Safely store and transport your fixtures from gig to gig in the CHS-FR4 carry bag

  • Compact and lightweight design easily fits inside sticks of TRUSST®

  • Increase battery run time with built-in limiter circuitry that conserves energy when over 4 colors are in use simultaneously

Specifications

  • DMX Channels: 6, 8, or 12

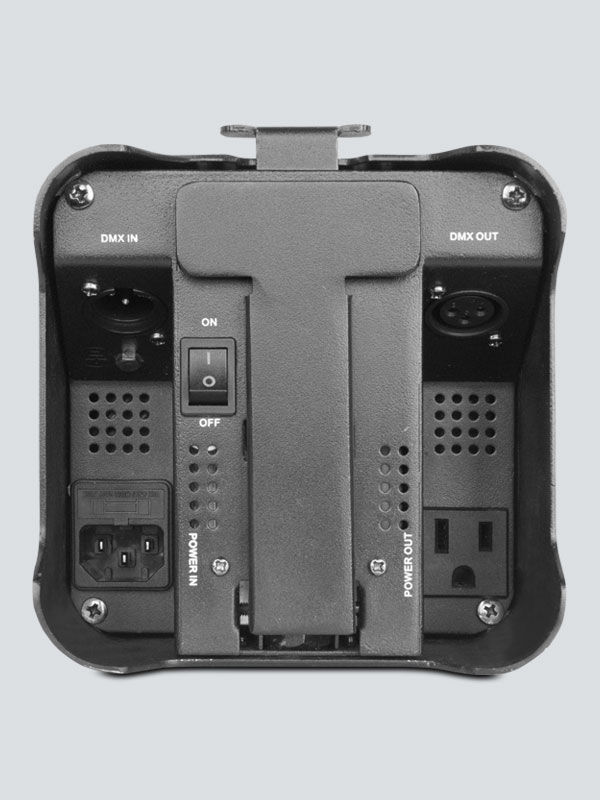

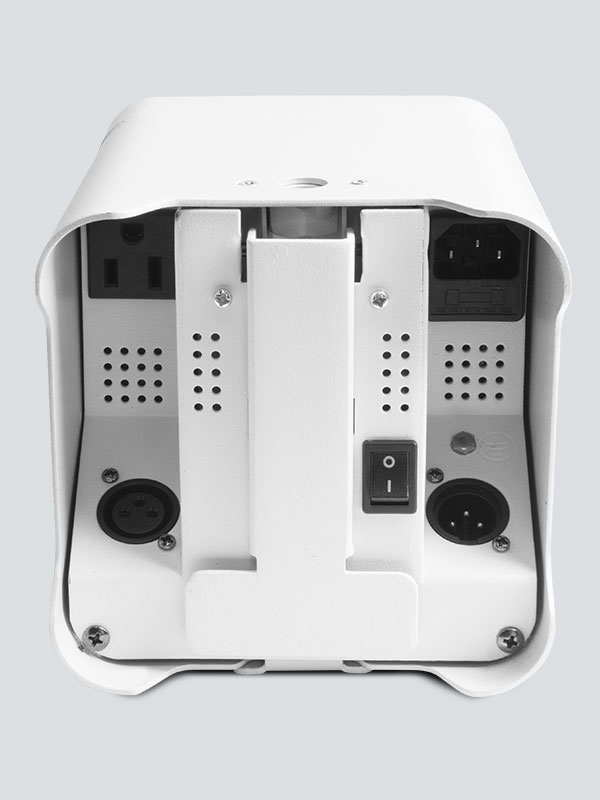

  • DMX Connectors: 3-pin XLR
  • Light Source: 4 LEDs (hex-color RGBAW+UV) 10 W (2 A), 50,000 hours life expectancy
  • Strobe Rate: 0 to 25 Hz
  • PWM Frequency: 1,200 Hz
  • Beam Angle: 23°
  • Field Angle: 34°
  • Maximum Run Time: (all on): up to 8 hours (with limiter on)
    (single color): up to 20 hours
  • Recharge Time: 6 hours
  • Operating Frequency: 2.412 to 2.484 GHz
  • Illuminance: 1,372 lux @ 2 m
  • Power Linking: 26 units @ 120 V; 50 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 35 W, 0.3 A @ 120 V, 60 Hz
    34 W, 0.2 A @ 230 V, 50 Hz
  • Weight: 6.2 lb (2.9 kg)
  • Size: 5.4 x 5.7 x 7.2 in (138 x 145 x 184 mm)
  • Approvals: CE, FCC

What's Included

  • Freedom Par Hex-4
  • IRC-6
  • Power Cord
  • Quick Reference Guide
  • Warranty Card
  • Stickers
